| Item | Part No. | Part Name | Qty | Serial No. |

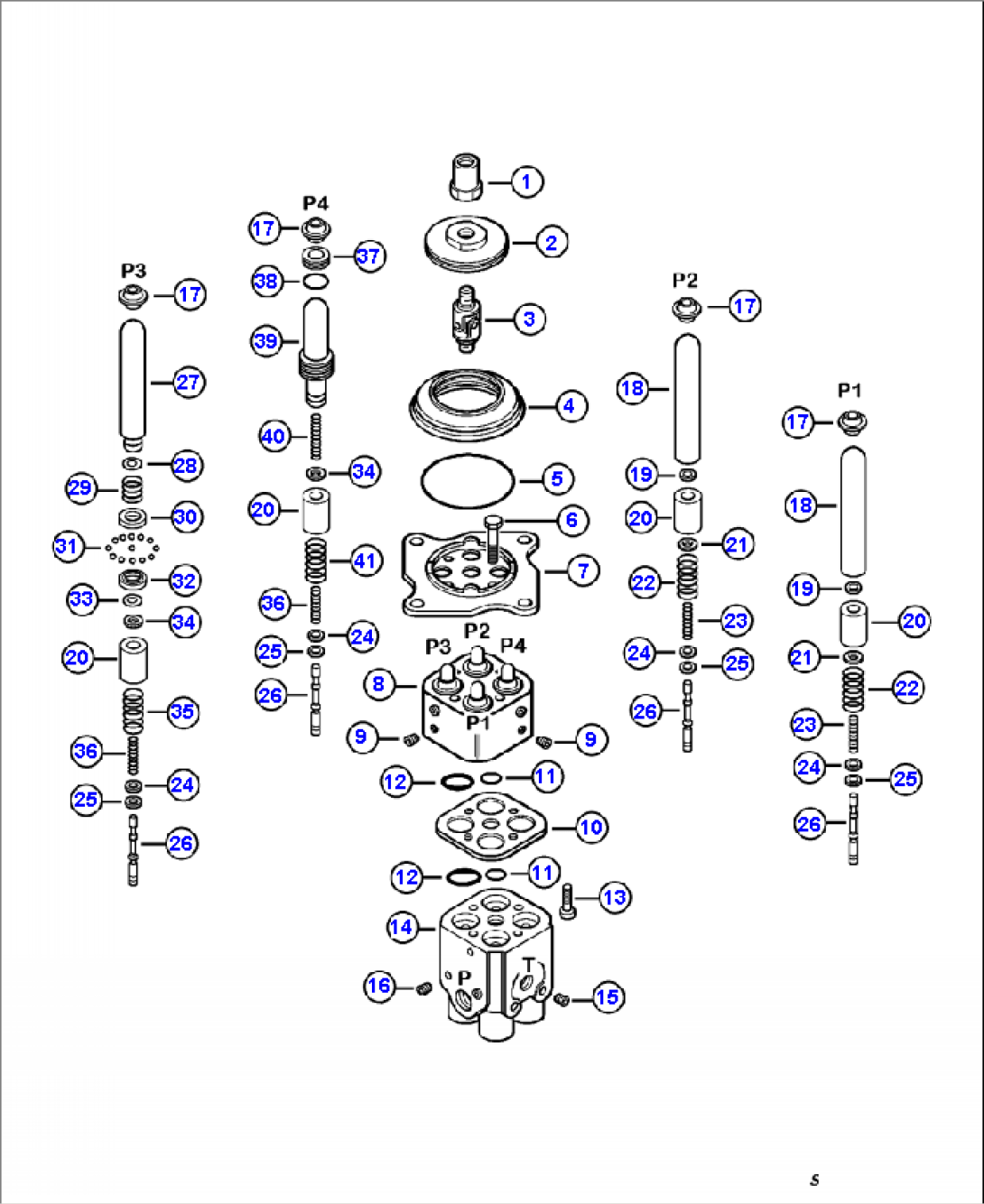

| LEVER, RIGHT PPC (SEE FIG. H3034-01A4 ) | A80001-A80531- | |||
| 702-16-03510 | LOWER VALVE | A80001-A80531- | ||
| 1 | 702-16-58990 | CONNECTOR, HANDLE | A80001-A80531- | |
| 2 | 702-16-53220 | DISK, SPOOL | A80001-A80531- | |
| 3 | 702-16-51240 | JOINT | A80001-A80531- | |
| 4 | 702-16-58820 | BOOT, JOINT | A80001-A80531- | |
| 5 | 07000-02070 | O-RING | A80001-A80531- | |
| 6 | 01010-80670 | BOLT | A80001-A80531- | |
| 7 | 702-16-53210 | PLATE, MOUNTING | A80001-A80531- | |
| 8 | 702-16-57530 | HOUSING, UPPER | A80001-A80531- | |
| 9 | 702-16-54490 | PLUG, PORT | A80001-A80531- | |
| 10 | 702-16-55510 | PLATE, HOUSING | A80001-A80531- | |
| 11 | 702-21-38460 | O-RING | A80001-A80531- | |
| 12 | 702-16-55610 | O-RING | A80001-A80531- | |
| 13 | 702-16-55520 | BOLT | A80001-A80531- | |
| 14 | 702-16-71390 | HOUSING, LOWER | A80001-A80531- | |
| 15 | 706-86-51180 | PLUG, PORT | A80001-A80531- | |
| 16 | 708-18-12570 | PLUG, PORT | A80001-A80531- | |
| 17 | 702-16-51270 | SEAL, WIPER | A80001-A80531- | |
| 18 | 702-16-55460 | ACTUATOR, SPOOL | A80001-A80531- | |
| 19 | 702-16-55550 | SHIM - 0.2 MM | A80001-A80531- | |
| 20 | 702-16-55470 | PISTON, LOWER | A80001-A80531- | |
| 21 | 702-16-54140 | RETAINER, SPRING | A80001-A80531- | |
| 22 | 702-16-53150 | SPRING, OUTER | A80001-A80531- | |
| 23 | 702-16-58630 | SPRING, INNER | A80001-A80531- | |
| 24 | 702-16-51140 | SHIM - 0.3 MM | A80001-A80531- | |
| 25 | 702-16-54670 | SHIM - 0.2 MM | A80001-A80531- | |
| 26 | 702-16-53120 | SPOOL, LOWER | A80001-A80531- | |
| 27 | 702-16-56320 | ACTUATOR, SPOOL | A80001-A80531- | |
| 28 | 702-16-55580 | SHIM | A80001-A80531- | |
| 29 | 702-16-55540 | SPRING, UPPER | A80001-A80531- | |
| 30 | 702-16-55530 | COVER, TOP | A80001-A80531- | |
| 31 | 702-16-55590 | BALL, DETENT | A80001-A80531- | |
| 32 | 702-16-55560 | SEAT, DETENT | A80001-A80531- | |
| 33 | 702-16-55550 | SHIM | A80001-A80531- | |
| 34 | 702-16-53140 | RETAINER, SPRING | A80001-A80531- | |
| 35 | 702-16-55630 | SPRING, OUTER | A80001-A80531- | |
| 36 | 702-16-55620 | SPRING, INNER | A80001-A80531- | |
| 37 | 702-16-55570 | HOLDER, SEAL | A80001-A80531- | |
| 38 | 07000-12020 | O-RING | A80001-A80531- | |
| 39 | 702-16-55440 | ACTUATOR AND SPOOL | A80001-A80531- | |
| 40 | 702-16-55491 | SPRING, RETURN | A80001-A80531- | |
| 41 | 702-16-53160 | SPRING, OUTER | A80001-A80531- | |
| F1 - THIS PART IS SUPPLIED AS PART OF THE ASSEMBLY. IT IS AVAILABLE AS AN INDIVIDUAL PART TO AUTHORIZED DISTRIBUTORS ONLY. |
