| Item | Part No. | Part Name | Qty | Serial No. |

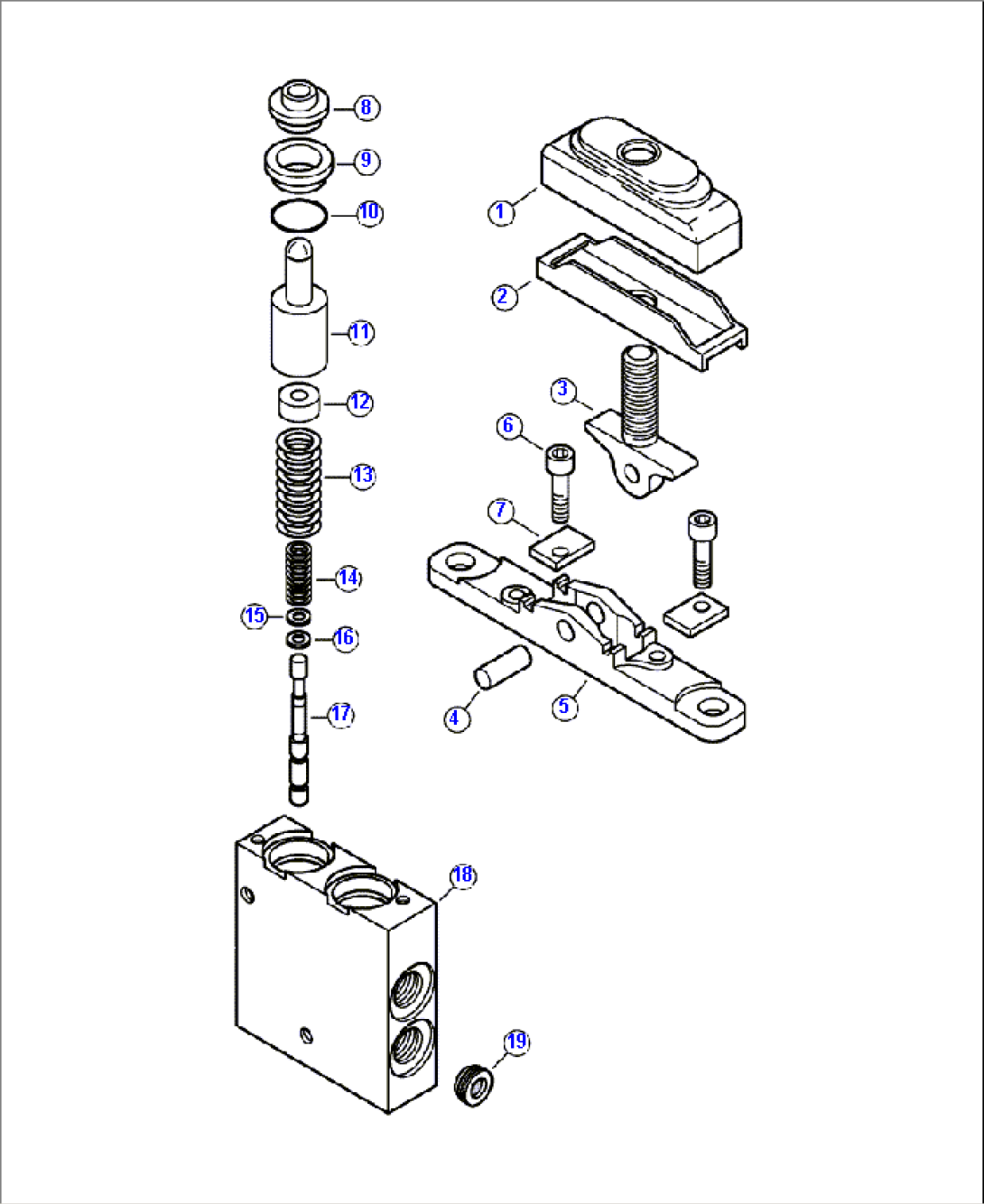

| PEDAL AND VALVE (SEE FIG. H3034-1A07 ) | A10001 and UP- | |||
| 702-16-03480 | VALVE, FOOT | A10001 and UP- | ||
| 1 | 702-16-54641 | BOOT, CAM | A10001 and UP- | |
| 2 | 702-16-54660 | PLATE, BOOT | A10001 and UP- | |
| 3 | 702-16-54610 | LEVER, CAM | A10001 and UP- | |
| 4 | 702-16-54630 | PIN, LEVER | A10001 and UP- | |
| 5 | 702-16-54620 | PLATE, MOUNTING | A10001 and UP- | |
| 6 | 01252-30625 | BOLT, ALLEN | A10001 and UP- | |
| 7 | 702-16-54650 | WASHER, FLAT | A10001 and UP- | |
| 8 | 702-16-51270 | SEAL, WIPER | A10001 and UP- | |
| 9 | 702-16-54580 | HOLDER, SEAL | A10001 and UP- | |
| 10 | 702-16-54590 | O-RING | A10001 and UP- | |
| 11 | 702-16-53170 | ACTUATOR, SPOOL | A10001 and UP- | |
| 12 | 702-16-53530 | RETAINER, SPRING | A10001 and UP- | |
| 13 | 702-16-54560 | SPRING, OUTER | A10001 and UP- | |
| 14 | 702-16-71370 | SPRING, INNER | A10001 and UP- | |
| 15 | 702-16-51140 | SHIM - 0.3 MM | A10001 and UP- | |
| 16 | 702-16-54670 | SHIM - 0.2 MM | A10001 and UP- | |
| 17 | (NSS) | SPOOL, VALVE | A10001 and UP- | |
| 18 | (NSS) | HOUSING, VALVE | A10001 and UP- | |
| 19 | 702-16-54880 | FILTER, IN LINE | A10001 and UP- |
