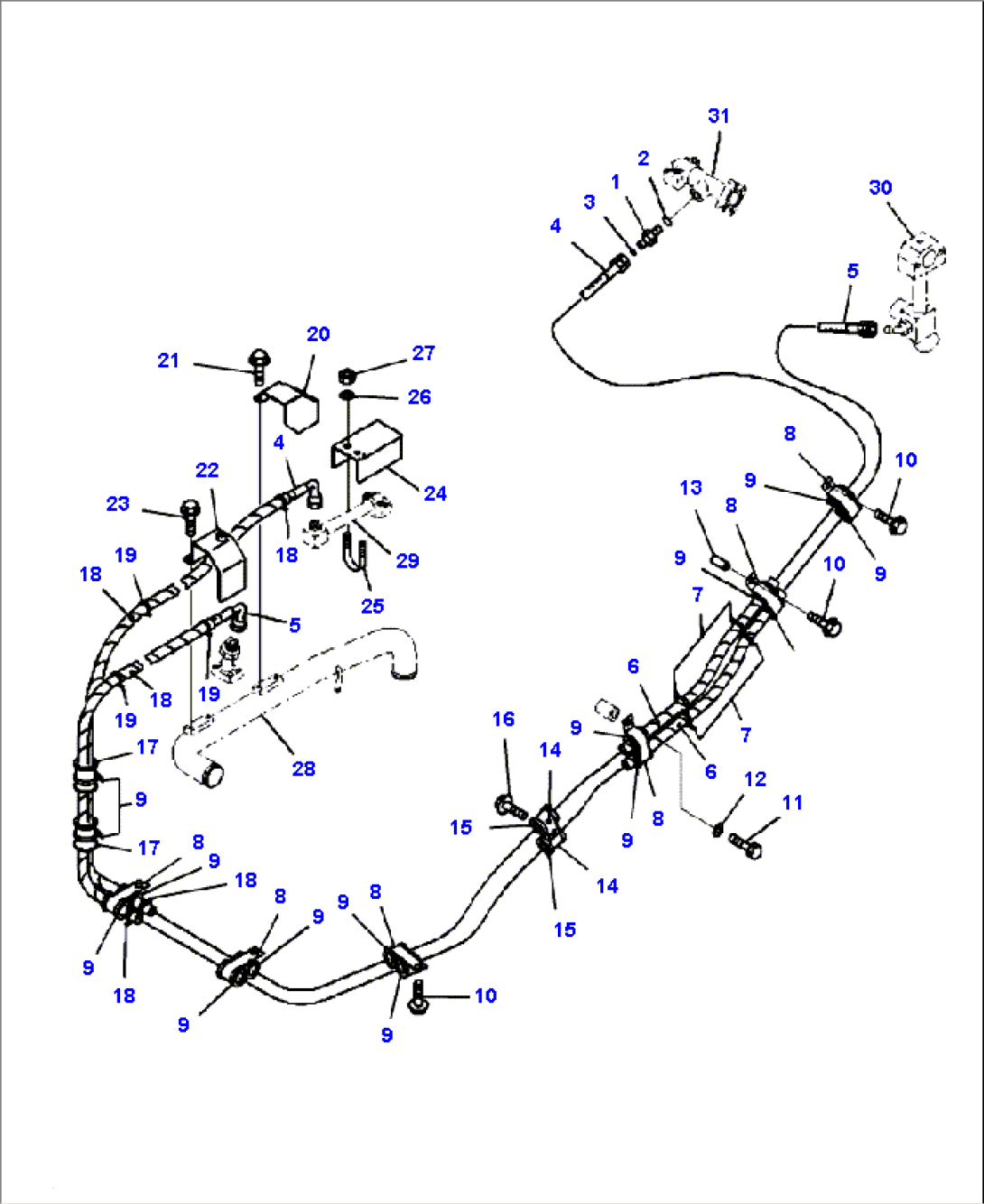

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02781-00628 | UNION | A11001-- | |
| 2 | 07002-22434 | O-RING | A11001-- | |
| 3 | 02896-21018 | O-RING | A11001-- | |
| 4 | 56E-61-27560 | HOSE, FACE SEAL TYPE | A11001-- | |
| 5 | 56E-61-27570 | HOSE, FACE SEAL TYPE | A11001-- | |
| 6 | 08210-02908 | SPIRAL TUBE | A11001-- | |
| 7 | 08034-20519 | STRAP, TIE | A11001-- | |
| 8 | 569-06-61980 | CLIP | A11001-- | |
| 9 | 566-06-41290 | INSULATOR | A11001-- | |
| 10 | 01435-01016 | BOLT | A11001-- | |
| 11 | 01010-81220 | BOLT | A11001-- | |
| 12 | 01643-31232 | WASHER | A11001-- | |
| 13 | 6134-11-5120 | SPACER | A11001-- | |
| 14 | 285-02-11320 | CLIP | A11001-- | |
| 15 | 07095-20627 | CUSHION | A11001-- | |
| 16 | 01435-01016 | BOLT | A11001-- | |
| 17 | 07095-01038 | CUSHION | A11001-- | |
| 18 | 08210-02906 | SPIRAL TUBE | A11001-- | |
| 19 | 08034-20519 | STRAP, TIE | A11001-- | |
| 20 | 56D-61-11911 | COVER | A11001-- | |
| 21 | 01435-01016 | BOLT | A11001-- | |
| 22 | 56D-61-21941 | COVER | A11001-- | |
| 23 | 01435-01016 | BOLT | A11001-- | |
| 24 | 56D-61-11930 | COVER | A11001-- | |
| 25 | 07283-32738 | U-BOLT | A11001-- | |
| 26 | 01643-31032 | WASHER | A11001-- | |
| 27 | 01597-01009 | NUT | A11001-- | |
| 28 | TUBE (SEE FIG. C0500-01A0 ) | A11001-- | ||
| 29 | TUBE (SEE FIG. C0500-03A0 ) | A11001-- | ||
| 30 | TUBE (SEE FIG. H0110-05A0 ) | A11001-- | ||
| 31 | TUBE (SEE FIG. H3410-09A0 ) | A11001-- |
