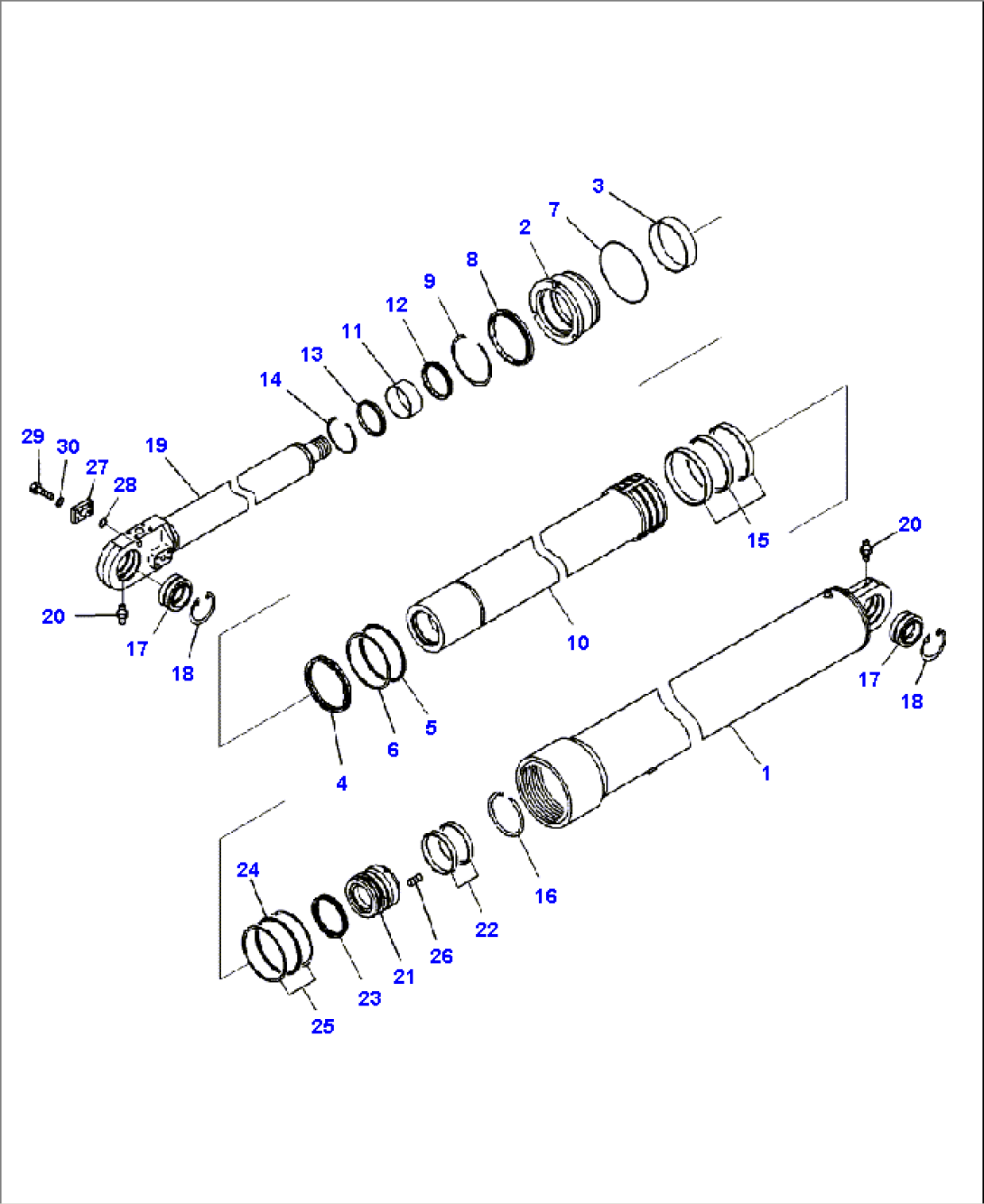

| Item | Part No. | Part Name | Qty | Serial No. |
| (NSS) | CYLINDER ASSEMBLY | A11001-- | ||
| 707-09-00031 | CYLINDER ASSEMBLY | A11001-- | ||
| 1 | 707-18-14011 | CYLINDER | A11001-- | |
| 2 | 707-29-14280 | CYLINDER HEAD | A11001-- | |
| 3 | 07177-01235 | BUSHING | A11001-- | |
| 4 | 707-51-12110 | PACKING | A11001-- | |
| 5 | 07000-15150 | O-RING | A11001-- | |
| 6 | 07146-05152 | RING, BACK-UP | A11001-- | |
| 7 | 07000-15160 | O-RING | A11001-- | |
| 8 | 195-63-93170 | SEAL, DUST | A11001-- | |
| 9 | 07179-13136 | RING, SNAP | A11001-- | |
| 10 | 707-18-10010 | CYLINDER | A11001-- | |
| 11 | 07177-08035 | BUSHING | A11001-- | |
| 12 | 707-51-80211 | PACKING | A11001-- | |
| 13 | 195-63-92190 | SEAL, DUST | A11001-- | |
| 14 | 07179-13094 | RING, SNAP | A11001-- | |
| 15 | 707-39-14100 | RING, WEAR | A11001-- | |
| 16 | 707-88-35410 | RING, WEAR | A11001-- | |
| 17 | 566-63-22291 | BEARING | A11001-- | |
| 18 | 04065-09030 | RING, SNAP, FOR HOLE SIDE | A11001-- | |
| 19 | 707-61-80520 | ROD, PISTON | A11001-- | |
| 20 | 07020-00000 | FITTING, GREASE | A11001-- | |
| 21 | 707-36-10731 | PISTON | A11001-- | |
| 22 | 707-39-10100 | RING, WEAR | A11001-- | |
| 23 | 707-44-10180 | RING, PISTON | A11001-- | |
| 24 | 707-34-55020 | O-RING | A11001-- | |
| 25 | 707-35-90610 | RING | A11001-- | |
| 26 | 01310-21016 | SCREW | A11001-- | |
| 27 | 707-88-33960 | PLATE | A11001-- | |
| 28 | 07000-13022 | O-RING | A11001-- | |
| 29 | 01010-80830 | BOLT | A11001-- | |
| 30 | 01643-50823 | WASHER, FLAT | A11001-- | |
| 707-99-54150 | SERVICE KIT, BODY HOIST CYLINDER | A11001-- | ||
| F1 - SERVICE KIT, HOIST CYLINDER |
