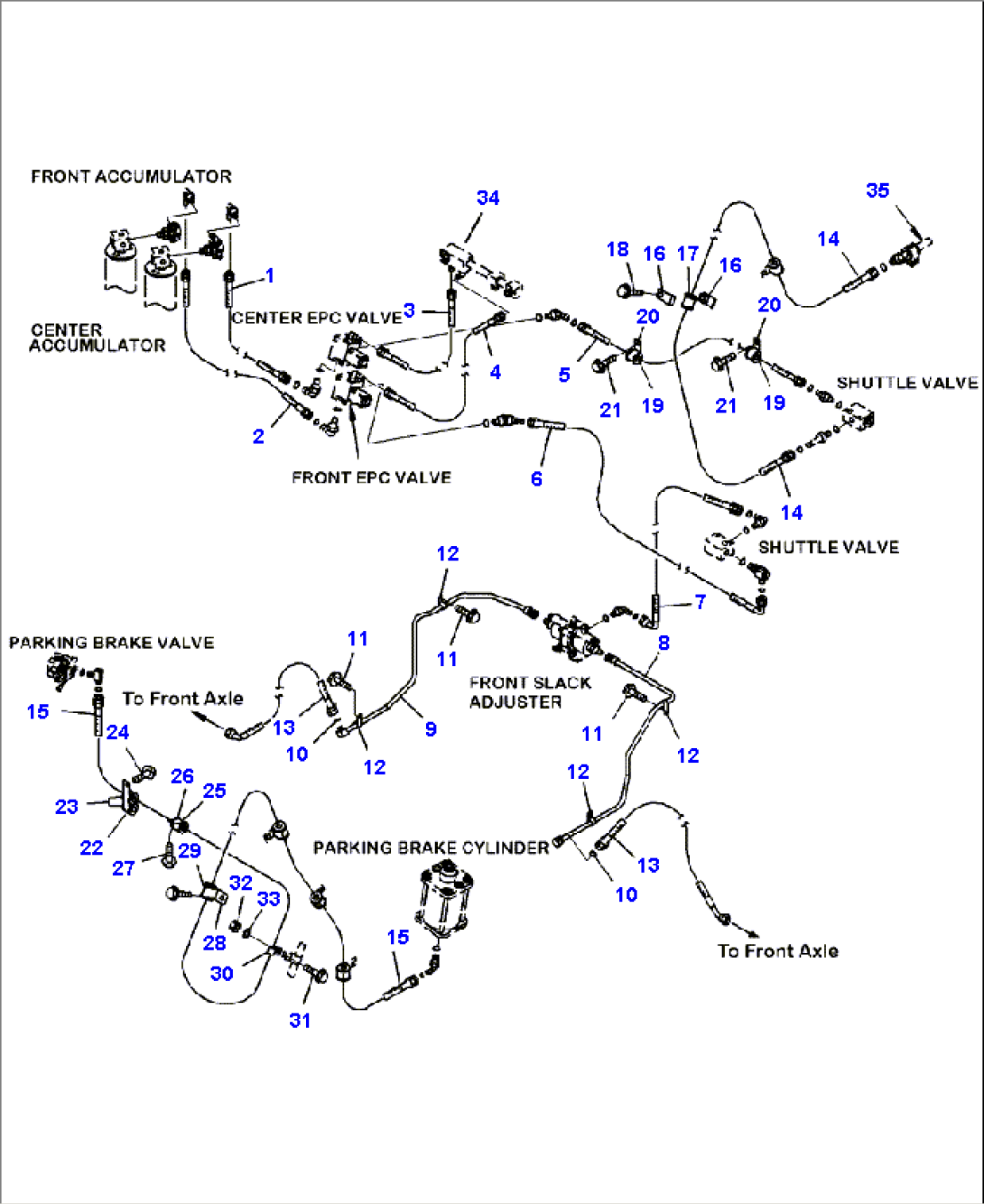

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02765-00404 | HOSE, FACE SEAL TYPE | A11001-- | |
| 2 | 02765-004A6 | HOSE, FACE SEAL TYPE | A11001-- | |
| 3 | 02762-00404 | HOSE, FACE SEAL TYPE | A11001-- | |
| 4 | 02762-00404 | HOSE, FACE SEAL TYPE | A11001-- | |
| 5 | 02767-004A7 | HOSE, FACE SEAL TYPE | A11001-- | |
| 6 | 02766-00411 | HOSE, FACE SEAL TYPE | A11001-- | |
| 7 | 02766-004A3 | HOSE, FACE SEAL TYPE | A11001-- | |
| 8 | 56D-43-17764 | TUBE | A11001-- | |
| 9 | 56D-43-27771 | TUBE | A11001-- | |
| 10 | 02896-21009 | O-RING | A11001-- | |
| 11 | 01435-01016 | BOLT | A11001-- | |
| 12 | 04434-51510 | CLIP | A11001-- | |
| 13 | 02767-B0308 | HOSE, FACE SEAL TYPE | A11001-- | |
| 14 | 02765-B0433 | HOSE, FACE SEAL TYPE | A11001-- | |
| 15 | 02765-B0344 | HOSE, FACE SEAL TYPE | A11001-- | |
| 16 | 07094-10417 | CLAMP | A11001-- | |
| 17 | 07095-00420 | CUSHION | A11001-- | |
| 18 | 01435-01060 | BOLT | A11001-- | |
| 19 | 07095-20420 | CUSHION | A11001-- | |
| 20 | 04434-52711 | CLIP | A11001-- | |
| 21 | 01435-01016 | BOLT | A11001-- | |
| 22 | 562-06-15180 | CLIP | A11001-- | |
| 23 | 581-07-11910 | BUSHING | A11001-- | |
| 24 | 01435-01016 | BOLT | A11001-- | |
| 25 | 08036-03014 | CLIP | A11001-- | |
| 26 | 07095-00317 | CUSHION | A11001-- | |
| 27 | 01435-01016 | BOLT | A11001-- | |
| 28 | 08036-03014 | CLIP | A11001-- | |
| 29 | 07095-00317 | CUSHION | A11001-- | |
| 30 | 419-09-11150 | CLIP | A11001-- | |
| 31 | 01435-01016 | BOLT | A11001-- | |
| 32 | 01580-01008 | NUT | A11001-- | |
| 33 | 01643-31032 | WASHER | A11001-- | |
| 34 | TUBE (SEE FIG. H3511-04A0 ) | A11001-- | ||
| 35 | TUBE (SEE FIG. H3511-06A0 ) | A11001-- |
