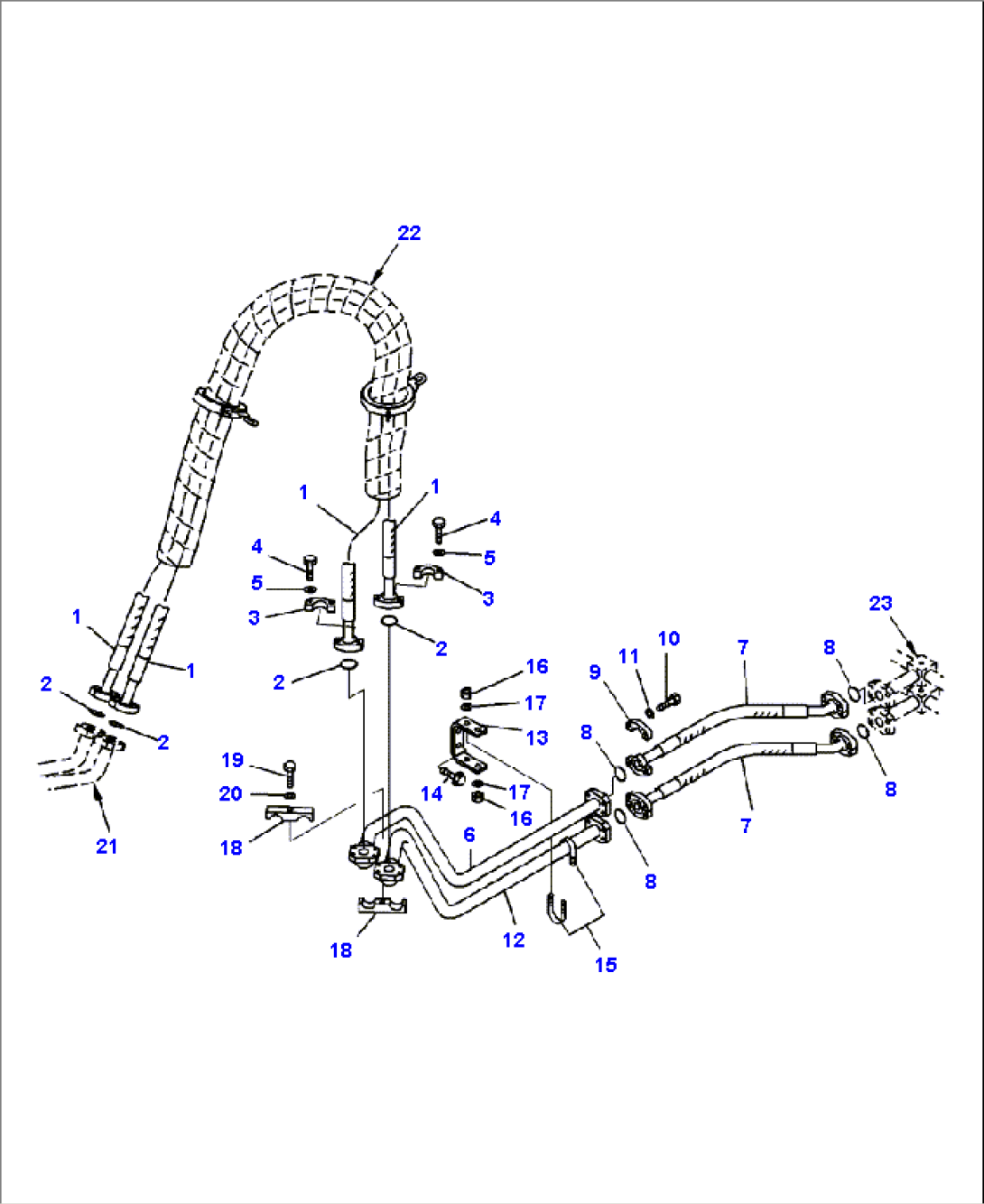

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07125-41223 | HOSE, FLANGE TYPE | A11001-- | |
| 2 | 07000-F3038 | O-RING | A11001-- | |
| 3 | 07371-31255 | FLANGE, SPLIT | A11001-- | |
| 4 | 07372-21035 | BOLT | A11001-- | |
| 5 | 01643-51032 | WASHER | A11001-- | |
| 6 | 56D-61-12464 | TUBE | A11001-- | |
| 7 | 07297-012A7 | HOSE, FLANGE TYPE | A11001-- | |
| 8 | 07000-F3038 | O-RING | A11001-- | |
| 9 | 07371-31255 | FLANGE, SPLIT | A11001-- | |
| 10 | 07372-21035 | BOLT | A11001-- | |
| 11 | 01643-51032 | WASHER | A11001-- | |
| 12 | 56D-61-12474 | TUBE | A11001-- | |
| 13 | 56D-61-12680 | BRACKET | A11001-- | |
| 14 | 01435-01020 | BOLT | A11001-- | |
| 15 | 07283-33442 | U-BOLT | A11001-- | |
| 16 | 01597-01009 | NUT | A11001-- | |
| 17 | 01643-31032 | WASHER | A11001-- | |
| 18 | 209-62-11730 | CLAMP | A11001-- | |
| 19 | 01010-81280 | BOLT | A11001-- | |
| 20 | 01643-31232 | WASHER | A11001-- | |
| 21 | TUBE (SEE FIG. H3511-11A0 ) | A11001-- | ||
| 22 | HOSES (SEE FIG. H3511-18A0 ) | A11001-- | ||
| 23 | TUBE (SEE FIG. H3511-07A0 ) | A11001-- |
