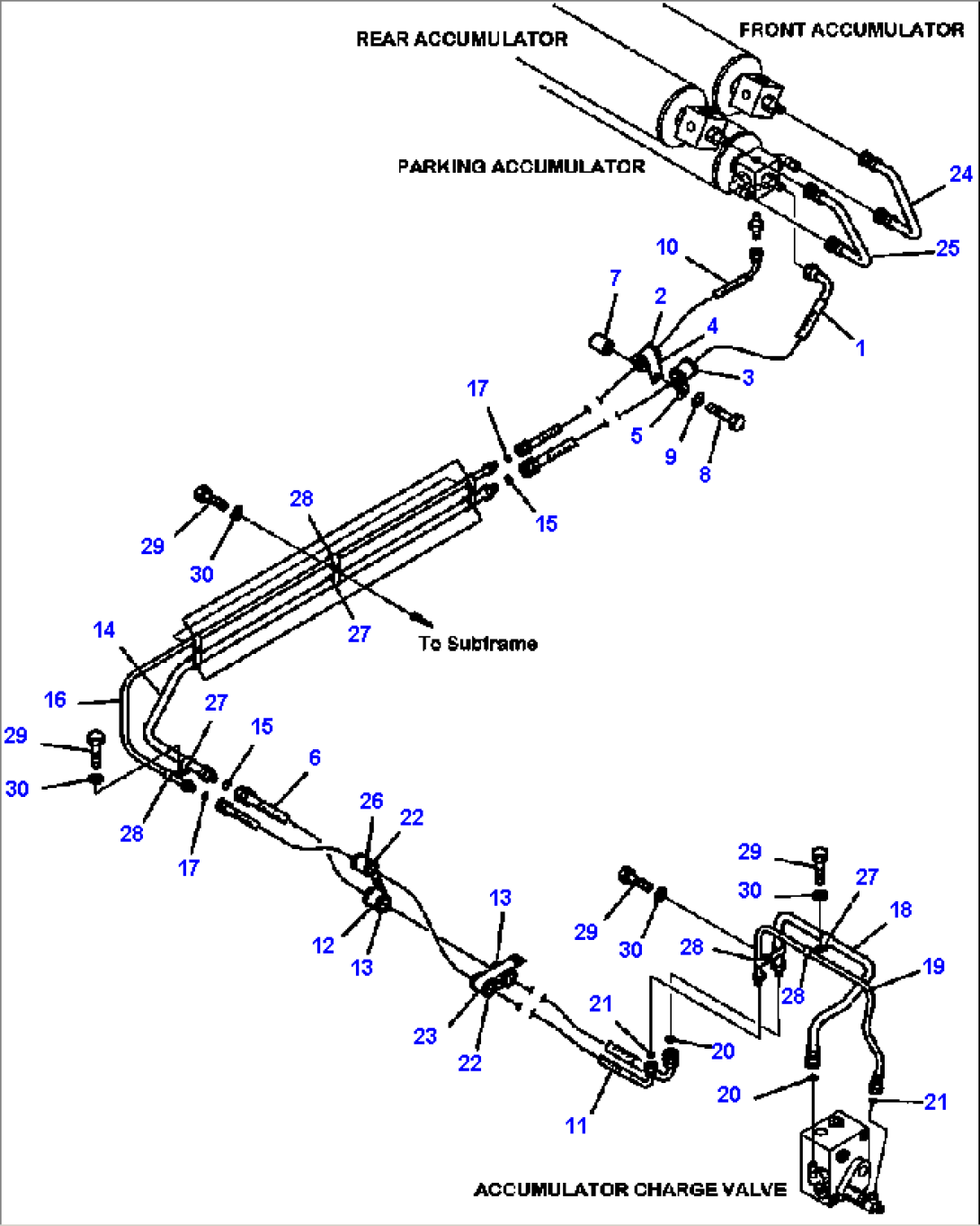

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02766-003A6 | HOSE | ||
| 2 | 07095-20213 | CUSHION | ||
| 3 | 07095-20418 | CUSHION | ||
| 4 | 04434-51910 | CLIP | ||
| 5 | 04434-52711 | CLIP | ||
| 6 | 02766-00309 | HOSE | ||
| 7 | 419-15-17541 | SPACER | ||
| 8 | 01010-81040 | BOLT | ||
| 9 | 01643-31032 | WASHER | ||
| 10 | 02766-002A6 | HOSE | ||
| 11 | 02766-00209 | HOSE | ||
| 12 | 08036-03014 | CLIP | ||
| 13 | 07095-00316 | CUSHION | ||
| 14 | 56B-43-17971 | TUBE | ||
| 15 | 02896-21009 | O-RING | ||
| 16 | 56B-43-27980 | TUBE | ||
| 17 | 02896-21008 | O-RING | ||
| 18 | 56B-43-17951 | TUBE | ||
| 19 | 56B-43-17962 | TUBE | ||
| 20 | 02896-21009 | O-RING | ||
| 21 | 02896-21008 | O-RING | ||
| 22 | 581-35-23540 | INSULATOR | ||
| 23 | 582-35-11170 | CLIP | ||
| 24 | 56B-43-17622 | TUBE | ||
| 25 | 56B-43-17632 | TUBE | ||
| 26 | 08036-02514 | CLIP | ||
| 27 | 04434-51510 | CLIP | ||
| 28 | 04434-51010 | CLIP | ||
| 29 | 01010-81020 | BOLT | ||
| 30 | 01643-31032 | WASHER |
