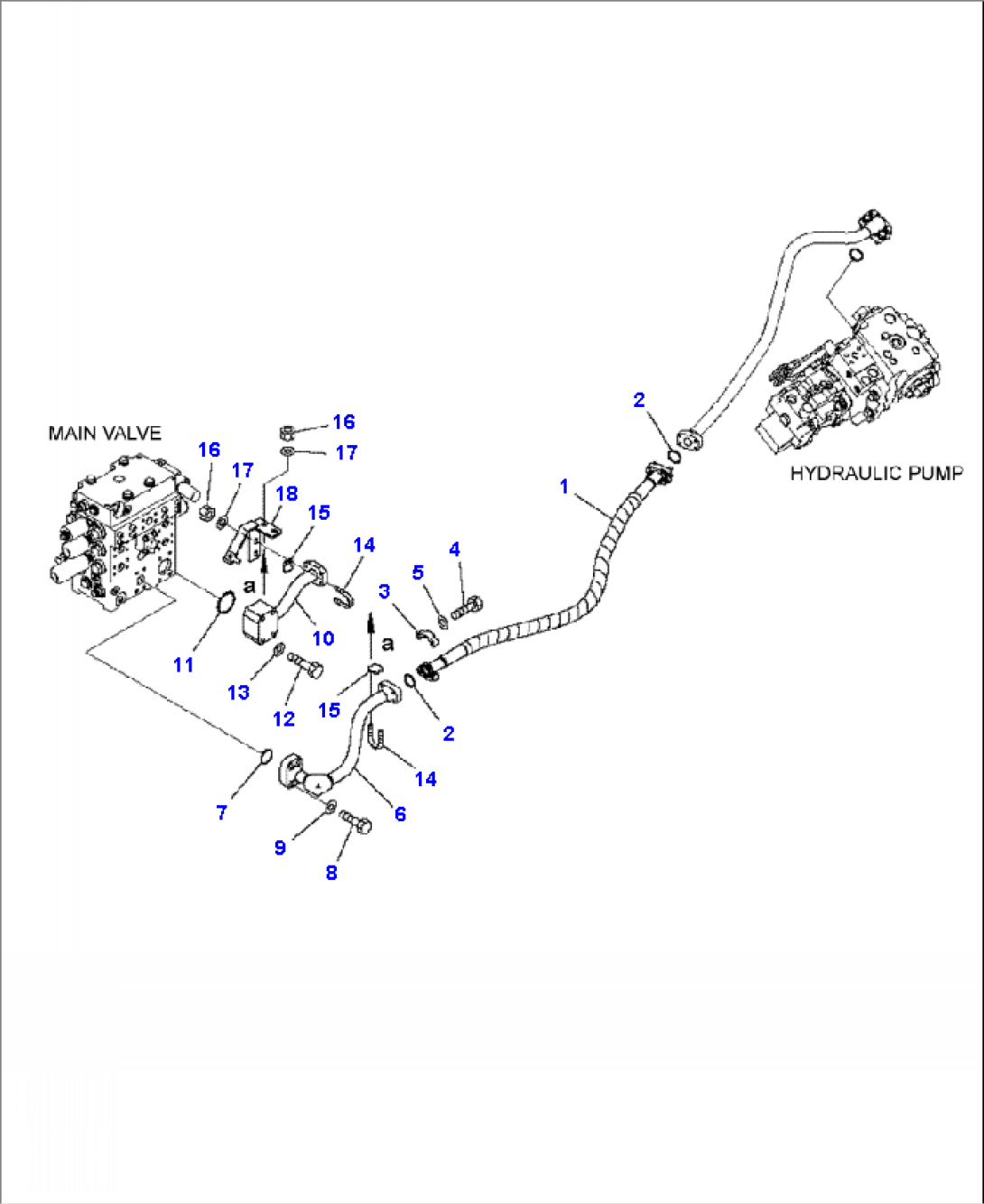

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-62-43310 | HOSE | A47001-- | |
| 2 | 07000-13032 | O-RING | A47001-- | |
| 3 | 07371-31049 | FLANGE | A47001-- | |
| 4 | 07372-21035 | BOLT | A47001-- | |
| 5 | 01643-51032 | WASHER | A47001-- | |
| 6 | 421-62-43110 | TUBE | A47001-- | |
| 7 | 07000-13038 | O-RING | A47001-- | |
| 8 | 01010-81250 | BOLT | A47001-- | |
| 9 | 01643-31232 | WASHER | A47001-- | |
| 10 | 421-62-43120 | TUBE | A47001-- | |
| 11 | 07000-12060 | O-RING | A47001-- | |
| 12 | 01010-81285 | BOLT | A47001-- | |
| 13 | 01643-31232 | WASHER | A47001-- | |
| 14 | 07283-33450 | CLIP | A47001-- | |
| 15 | 07283-53444 | SEAT | A47001-- | |
| 16 | 01597-01009 | NUT | A47001-- | |
| 17 | 01643-31032 | WASHER | A47001-- | |
| 18 | 421-62-43290 | BRACKET | A47001-- |
