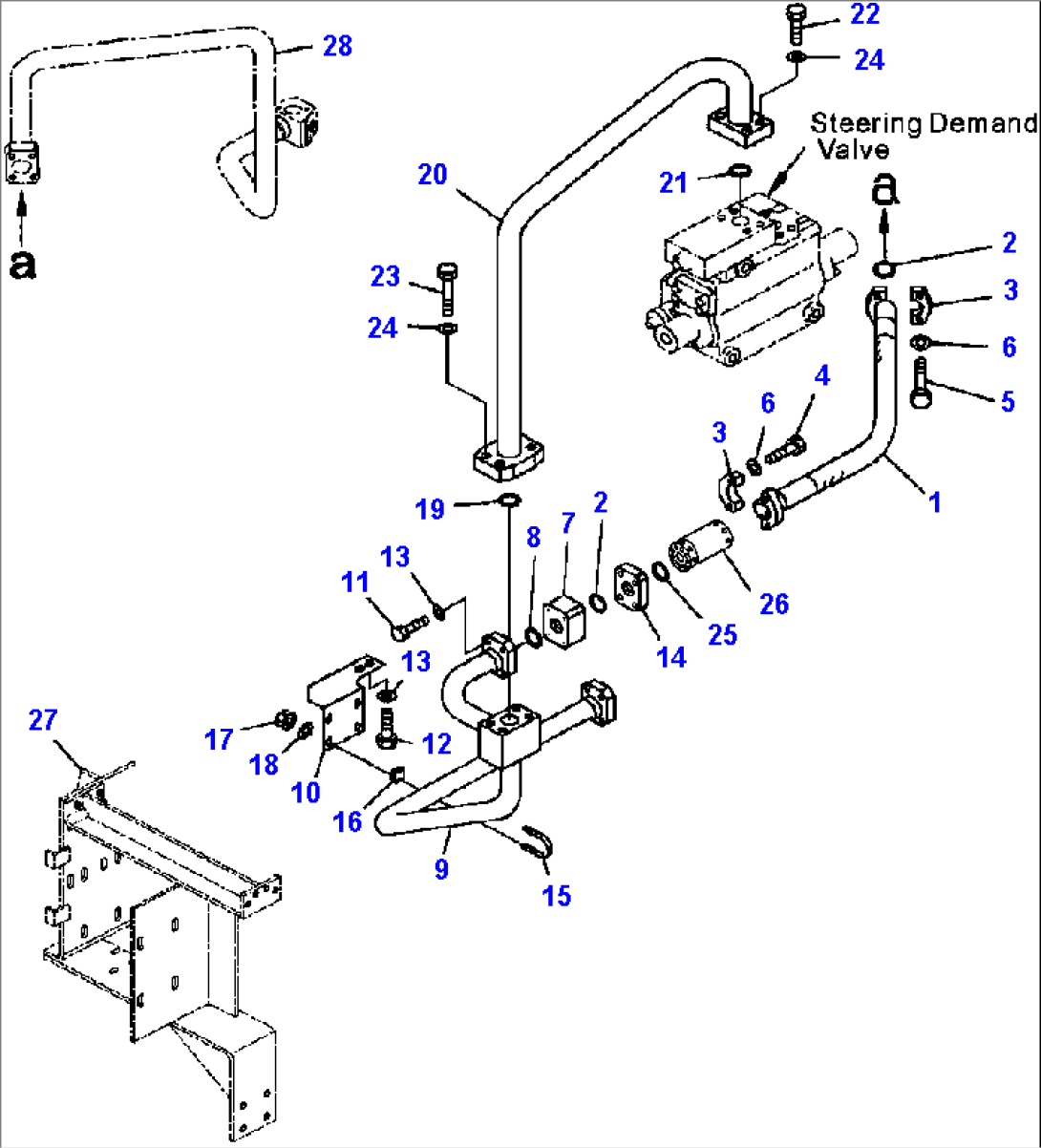

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-Z87-1330 | HOSE | A50001-- | |
| 2 | 07000-F3048 | O-RING | A50001-- | |
| 3 | 07371-51470 | FLANGE, SPLIT | A50001-- | |
| 4 | 01010-81445 | BOLT | A50001-- | |
| 5 | 01010-81430 | BOLT | A50001-- | |
| 6 | 01643-31445 | WASHER | A50001-- | |
| 7 | VALVE ASSEMBLY, CHECK (SEE FIG. H4500-03A0 ) | A50001-- | ||
| 8 | ||||
| 8 | 07000-F3045 | O-RING | A50001-- | |
| 9 | 427-N35-1240 | TUBE | A50001-- | |
| 10 | 427-S33-2430 | PLATE | A50001-- | |
| 11 | 01011-81450 | BOLT | A50001-- | |
| 12 | 01010-81230 | BOLT | A50001-- | |
| 13 | 01643-31445 | WASHER | A50001-- | |
| 14 | 427-N35-1180 | BLOCK | A50001-- | |
| 15 | 07283-34354 | CLIP | A50001-- | |
| 16 | 07283-54353 | SEAT | A50001-- | |
| 17 | 01597-01009 | NUT | A50001-- | |
| 18 | 01643-31032 | WASHER | A50001-- | |
| 19 | 07000-F3048 | O-RING | A50001-- | |
| 20 | 427-N35-1230 | TUBE | A50001-- | |
| 21 | 07000-F3042 | O-RING | A50001-- | |
| 22 | 01010-81455 | BOLT | A50001-- | |
| 23 | 01011-81405 | BOLT | A50001-- | |
| 24 | 20D-14-11510 | WASHER | A50001-- | |
| 25 | 07000-F3042 | O-RING | A50001-- | |
| 26 | STRAINER (SEE FIG. H4500-02A0 ) | A50001-- | ||
| 27 | BRACKET (SEE FIG. H4200-07A0 ) | A50001-- | ||
| 28 | TUBE (SEE FIG. H4200-03A0 ) | A50001-- |
