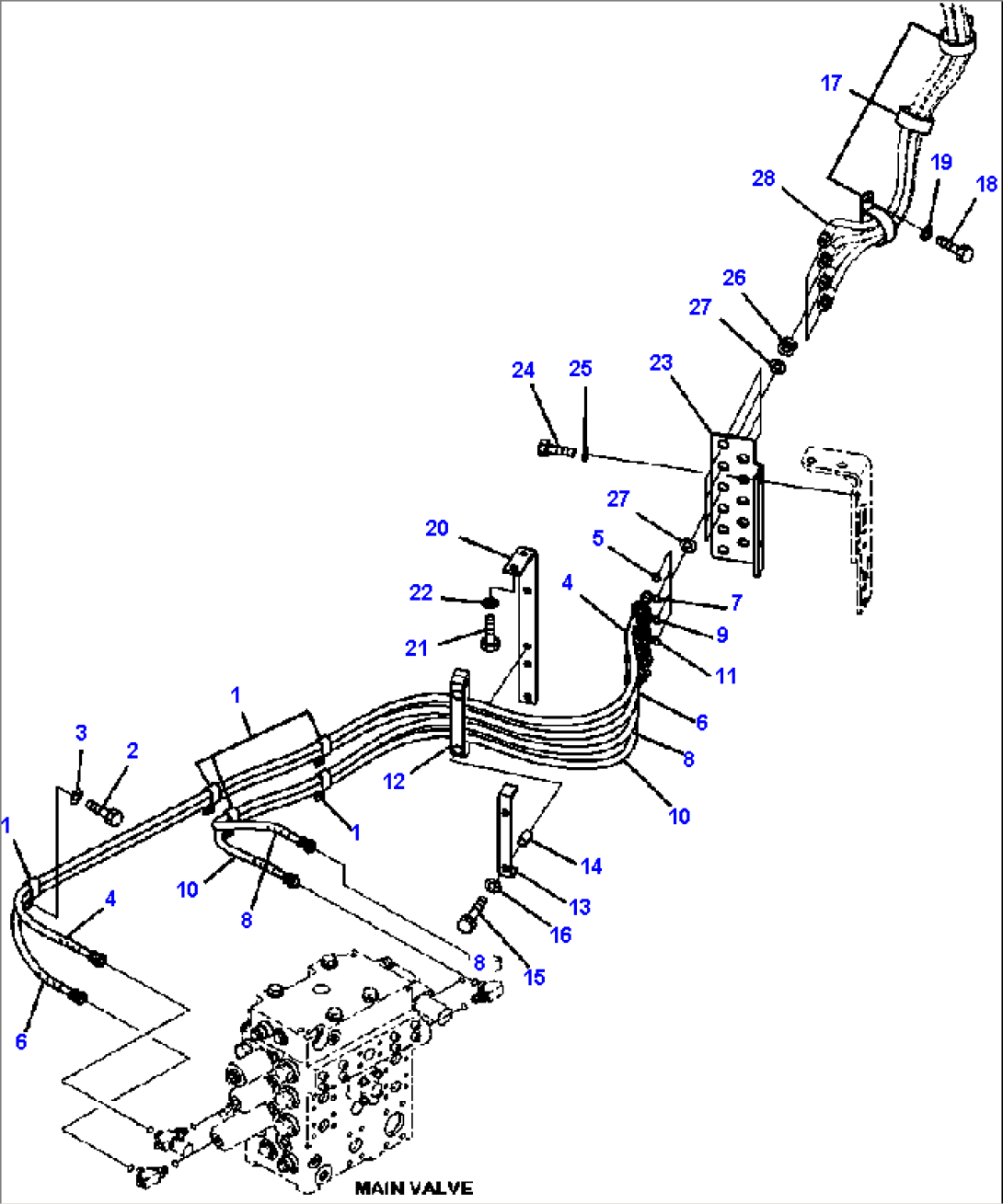

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 04435-51610 | CLIP | A45001-- | |
| 2 | 01010-81020 | BOLT | A45001-- | |
| 3 | 01643-31032 | WASHER | A45001-- | |
| 4 | 421-62-43350 | HOSE, BLUE | A45001-- | |
| 21U-62-34750 | BAND, BLUE | A45001-- | ||
| 5 | 02896-11009 | O-RING | A45001-- | |
| 6 | 421-62-43360 | HOSE, YELLOW | A45001-- | |
| 21U-62-34710 | BAND, YELLOW | A45001-- | ||
| 7 | 02896-11009 | O-RING | A45001-- | |
| 8 | 421-62-43370 | HOSE, GREEN | A45001-- | |
| 21U-62-34730 | BAND, GREEN | A45001-- | ||
| 9 | 02896-11009 | O-RING | A45001-- | |
| 10 | 421-62-43380 | HOSE, WHITE | A45001-- | |
| 21U-62-34770 | BAND, WHITE | A45001-- | ||
| 11 | 02896-11009 | O-RING | A45001-- | |
| 12 | 419-62-23990 | RUBBER | A45001-- | |
| 13 | 421-62-46460 | PLATE | A45001-- | |
| 14 | 419-43-17910 | SPACER | A45001-- | |
| 15 | 01010-81060 | BOLT | A45001-- | |
| 16 | 01643-31032 | WASHER | A45001-- | |
| 17 | 207-62-33690 | CLIP | A45001-- | |
| 18 | 01010-81020 | BOLT | A45001-- | |
| 19 | 01643-31032 | WASHER | A45001-- | |
| 20 | 421-62-44260 | BRACKET | A45001-- | |
| 21 | 01010-81025 | BOLT | A45001-- | |
| 22 | 01643-31032 | WASHER | A45001-- | |
| 23 | 421-62-46510 | PLATE | A45001-- | |
| 24 | 01010-81025 | BOLT | A45001-- | |
| 25 | 01643-31032 | WASHER | A45001-- | |
| 26 | 426-62-35620 | NUT | A45001-- | |
| 27 | 01643-31845 | WASHER | A45001-- | |
| 28 | HOSE, 2120MM (SEE FIG. K4202-08A0) | A45001-- |
