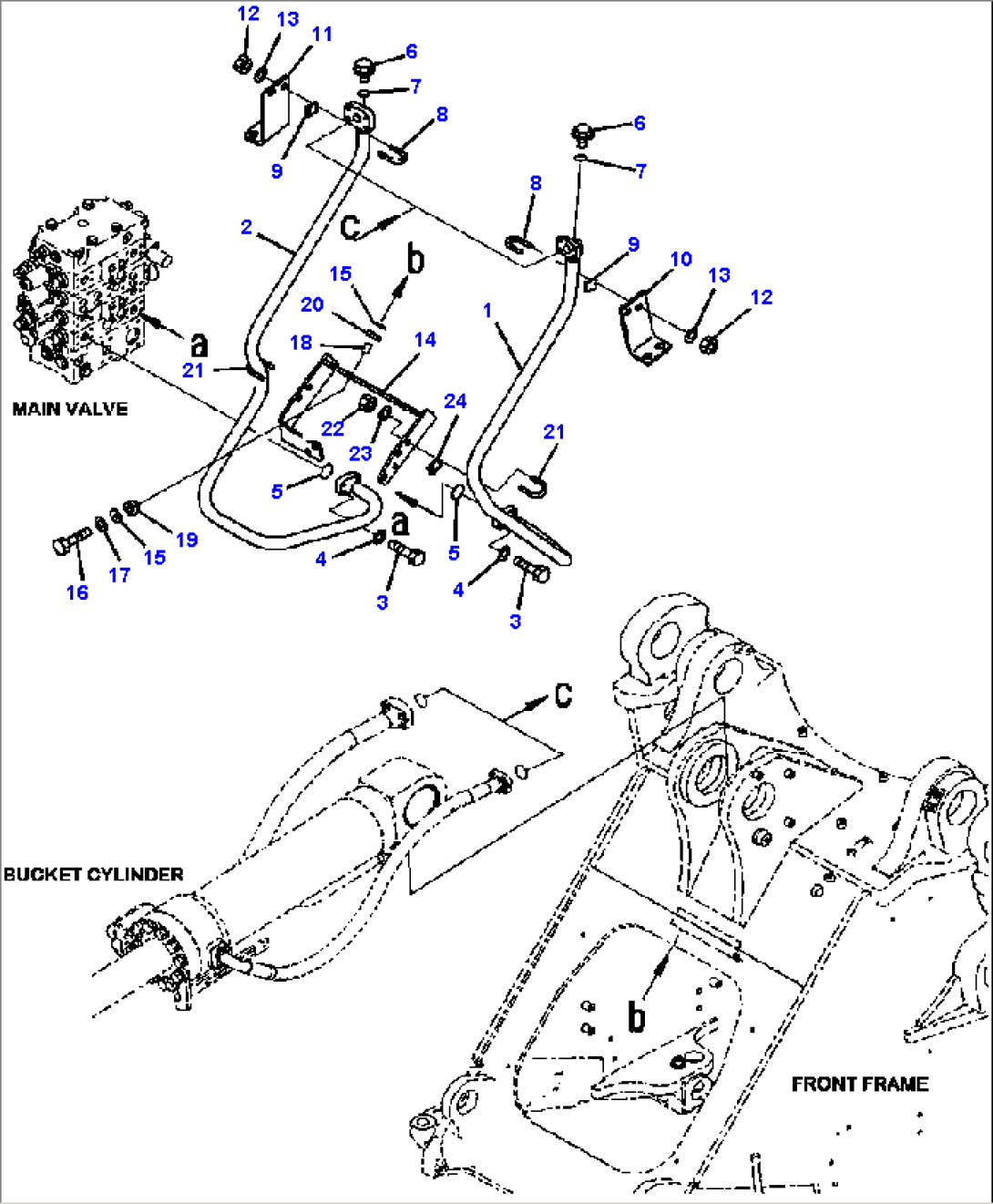

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-62-43211 | TUBE | A45001-- | |
| 2 | 421-62-43221 | TUBE | A45001-- | |
| 3 | 07372-21040 | BOLT | A45001-- | |
| 4 | 01643-51032 | WASHER | A45001-- | |
| 5 | 07000-13035 | O-RING | A45001-- | |
| 6 | 708-8E-16150 | PLUG | A45001-- | |
| 7 | 07002-11023 | O-RING | A45001-- | |
| 8 | 07283-33450 | CLIP | A45001-- | |
| 9 | 07283-53444 | SEAT | A45001-- | |
| 10 | 421-62-43170 | PLATE | A45001-- | |
| 11 | 421-62-43180 | PLATE | A45001-- | |
| 12 | 01597-01009 | NUT | A45001-- | |
| 13 | 203-54-56970 | WASHER | A45001-- | |
| 14 | 421-877-4530 | BRACKET | A45001-- | |
| 15 | 415-64-13120 | WASHER | A45001-- | |
| 16 | 01010-81060 | BOLT | A45001-- | |
| 17 | 01643-31032 | WASHER | A45001-- | |
| 18 | 421-62-18560 | SPACER | A45001-- | |
| 19 | 419-43-17930 | CUSHION | A45001-- | |
| 20 | 415-64-13130 | CUSHION | A45001-- | |
| 21 | 07283-33450 | CLIP | A45001-- | |
| 22 | 01597-01009 | NUT | A45001-- | |
| 23 | 01643-31032 | WASHER | A45001-- | |
| 24 | 07283-53444 | SEAT | A45001-- |
