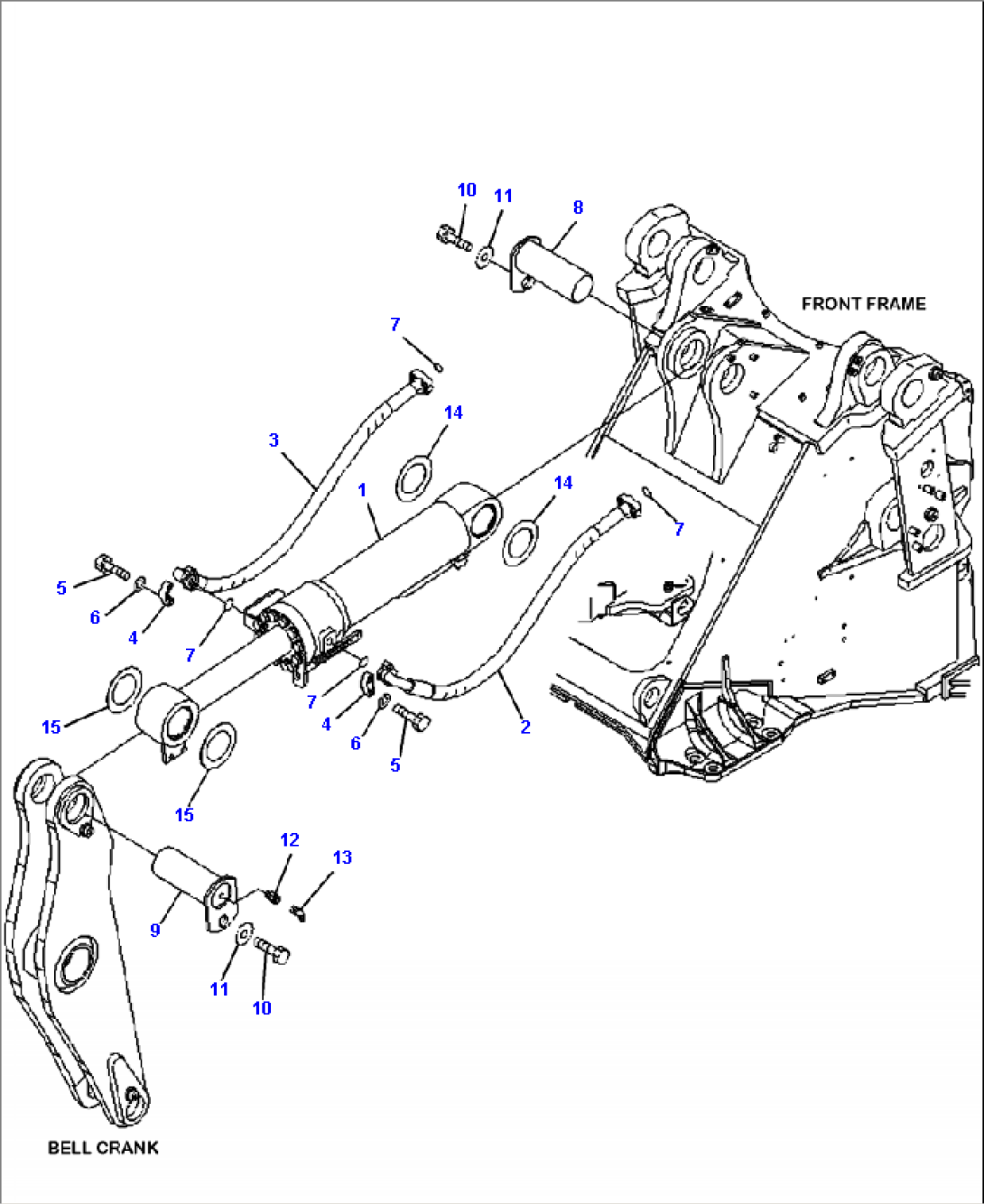

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | CYLINDER, ASSEMBLY (SEE FIG. H4200-05A2 ) | A47001-- | ||
| 2 | 07084-01014 | HOSE | A47001-- | |
| 3 | 07084-01214 | HOSE | A47001-- | |
| 4 | 07371-51260 | FLANGE | A47001-- | |
| 5 | 07372-81245 | BOLT | A47001-- | |
| 6 | 01643-31232 | WASHER | A47001-- | |
| 7 | 07000-13038 | O-RING | A47001-- | |
| 8 | 425-70-11950 | PIN | A47001-- | |
| 9 | 425-70-11950 | PIN | A47001-- | |
| 10 | 01010-81630 | BOLT | A47001-- | |
| 11 | 421-70-11280 | WASHER | A47001-- | |
| 12 | 421-70-11160 | NIPPLE | A47001-- | |
| 13 | 07020-00675 | FITTING, GREASE | A47001-- | |
| 14 | 421-70-41410 | SHIM, T= 1.0 | A47001-- | |
| 15 | 421-70-41410 | SHIM, T= 1.0 | A47001-- |
