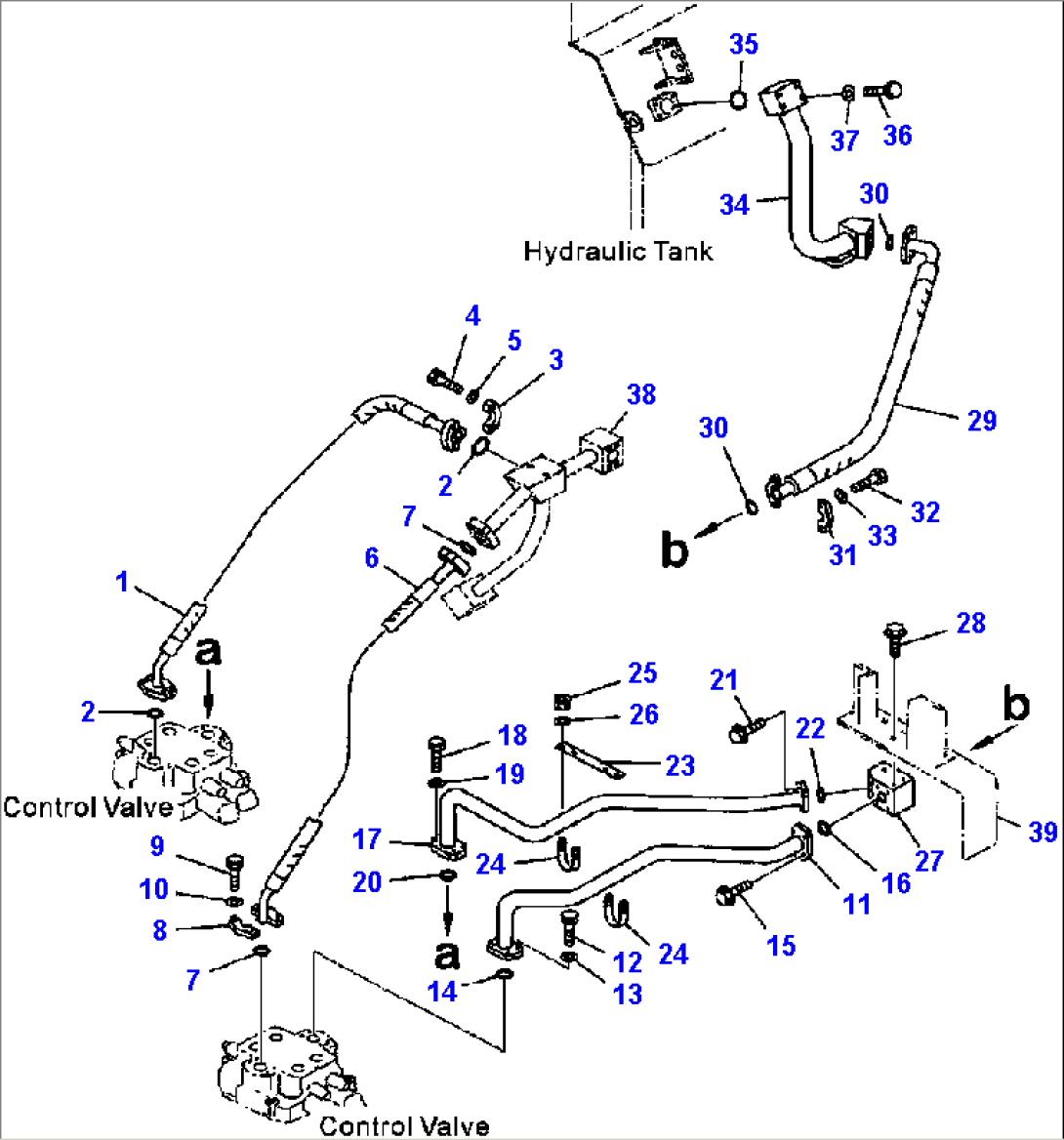

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-62-15611 | HOSE | A50001-- | |
| 2 | 07000-F3048 | O-RING | A50001-- | |
| 3 | 07371-51470 | FLANGE, SPLIT | A50001-- | |
| 4 | 01010-81455 | BOLT | A50001-- | |
| 5 | 01643-31445 | WASHER | A50001-- | |
| 6 | 427-62-15750 | HOSE | A50001-- | |
| 7 | 07000-F3048 | O-RING | A50001-- | |
| 8 | 07371-51470 | FLANGE, SPLIT | A50001-- | |
| 9 | 01010-81455 | BOLT | A50001-- | |
| 10 | 01643-31445 | WASHER | A50001-- | |
| 11 | 427-62-12611 | TUBE | A50001-- | |
| 12 | 01010-81240 | BOLT | A50001-- | |
| 13 | 01643-31232 | WASHER | A50001-- | |
| 14 | 07000-F2060 | O-RING | A50001-- | |
| 15 | 01435-01245 | BOLT | A50001-- | |
| 16 | 07000-F3048 | O-RING | A50001-- | |
| 17 | 427-62-12621 | TUBE | A50001-- | |
| 18 | 01010-81240 | BOLT | A50001-- | |
| 19 | 01643-31232 | WASHER | A50001-- | |
| 20 | 07000-F2060 | O-RING | A50001-- | |
| 21 | 01435-01245 | BOLT | A50001-- | |
| 22 | 07000-F3048 | O-RING | A50001-- | |
| 23 | 427-62-12580 | PLATE | A50001-- | |
| 24 | 07283-34949 | CLIP | A50001-- | |
| 25 | 01597-01009 | NUT | A50001-- | |
| 26 | 01643-31032 | WASHER | A50001-- | |
| 27 | 427-62-22660 | BLOCK | A50001-- | |
| 28 | 01435-01230 | BOLT | A50001-- | |
| 29 | 427-62-13932 | HOSE | A50001-- | |
| 30 | 07000-F2070 | O-RING | A50001-- | |
| 31 | 07371-12484 | FLANGE, SPLIT | A50001-- | |
| 32 | 07372-21240 | BOLT | A50001-- | |
| 33 | 01643-51232 | WASHER | A50001-- | |
| 34 | 427-62-23110 | TUBE | A50001-A50031- | |
| OR | ||||
| 34 | 427-62-23111 | TUBE | A50032-- | |
| 35 | 07000-F2070 | O-RING | A50001-- | |
| 36 | 01011-81200 | BOLT | A50001-- | |
| 37 | 01643-31232 | WASHER | A50001-- | |
| 38 | TUBE (SEE FIG. H4200-02A0 ) | A50001-- | ||
| 39 | BRACKET (SEE FIG. H4200-07A0 ) | A50001-- |
