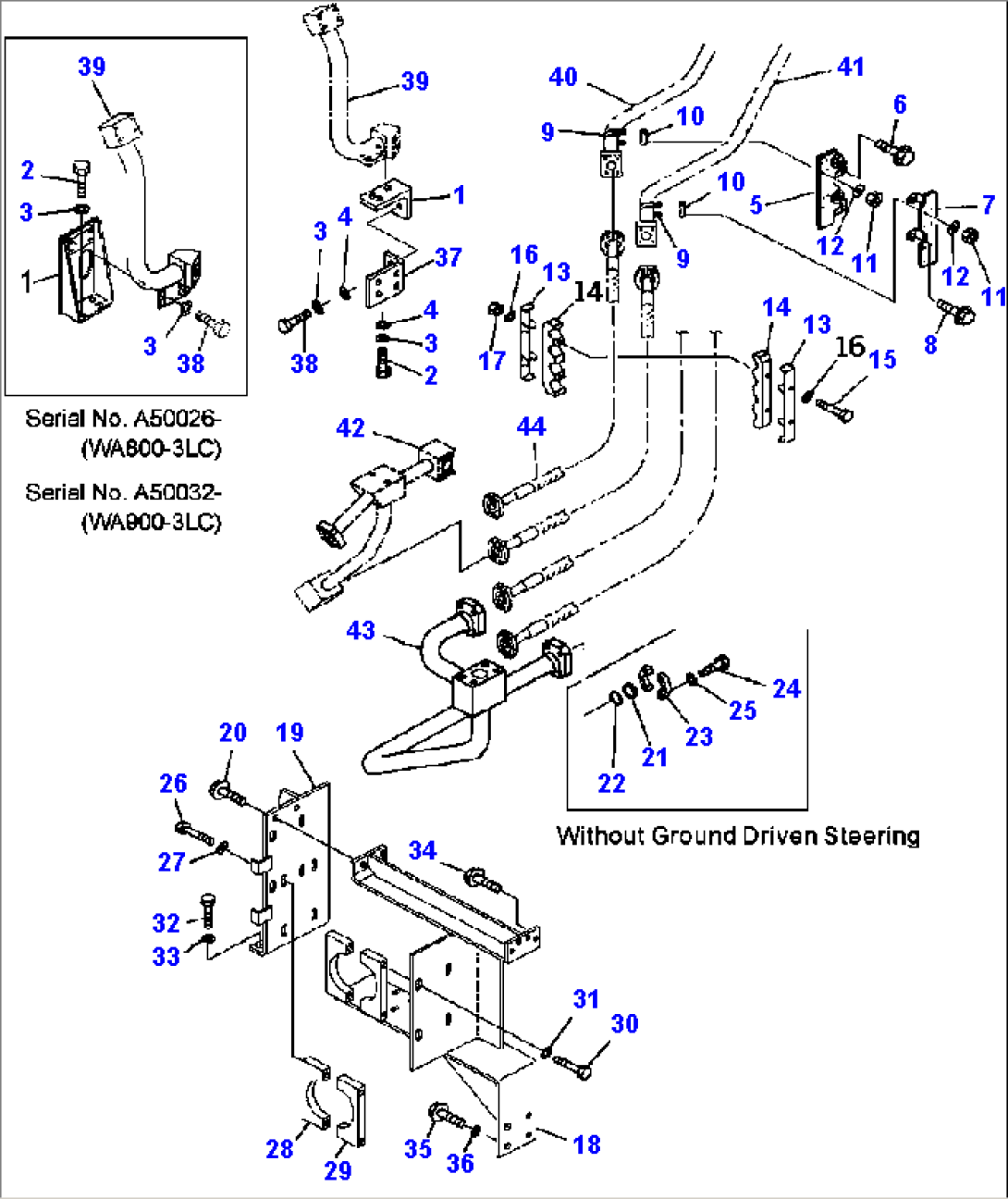

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-62-15120 | BRACKET | A50001-A50013- | |
| OR | ||||
| 1 | 427-62-25510 | BRACKET | A50014-A50031- | |
| OR | ||||
| 1 | 427-62-25531 | BRACKET | A50032-- | |
| 2 | 01010-81640 | BOLT | A50001-A50031- | |
| OR | ||||
| 2 | 01010-81640 | BOLT | A50032-- | |
| 3 | 01643-31645 | WASHER | A50001-A50013- | |
| OR | ||||
| 3 | 01643-31645 | WASHER | A50014-A50031- | |
| OR | ||||
| 3 | 01643-31645 | WASHER | A50032-- | |
| 4 | 01643-31845 | WASHER | A50001-A50013- | |
| OR | ||||
| 4 | 01643-31845 | WASHER | A50014-A50031- | |
| 5 | 427-62-13842 | BRACKET | A50001-- | |
| 6 | 01435-01230 | BOLT | A50001-- | |
| 7 | 427-62-13851 | BRACKET | A50001-- | |
| 8 | 01435-01230 | BOLT | A50001-- | |
| 9 | 07283-34957 | CLIP | A50001-- | |
| 10 | 07283-54959 | SEAT | A50001-- | |
| 11 | 01597-01009 | NUT | A50001-- | |
| 12 | 01643-31032 | WASHER | A50001-- | |
| 13 | 427-62-24890 | BRACKET | A50001-- | |
| 14 | 427-62-14881 | STRIP | A50001-- | |
| 15 | 01011-81015 | BOLT | A50001-- | |
| 16 | 01643-31032 | WASHER | A50001-- | |
| 17 | 01596-01009 | NUT | A50001-- | |
| 18 | 427-N35-2111 | BRACKET | A50001-- | |
| 19 | 427-N35-1320 | BRACKET | A50001-- | |
| 20 | 01435-01240 | BOLT | A50001-- | |
| 21 | 07378-11410 | HEAD, SLEEVE | A50001-- | |
| 22 | 07000-F3048 | O-RING | A50001-- | |
| 23 | 07371-51470 | FLANGE, SPLIT | A50001-- | |
| 24 | 01010-81455 | BOLT | A50001-- | |
| 25 | 01011-81610 | BOLT | A50001-- | |
| 26 | 01643-31645 | WASHER | A50001-- | |
| 27 | 209-62-61210 | CLAMP | A50001-- | |
| 28 | 209-62-61190 | CLAMP, TAPPED | A50001-- | |
| 29 | 01011-81615 | BOLT | A50001-A50013- | |
| OR | ||||
| 30 | 01011-81610 | BOLT | A50014-- | |
| 31 | 01643-31645 | WASHER | A50001-- | |
| 32 | 01010-81235 | BOLT | A50001-- | |
| 33 | 01643-31232 | WASHER | A50001-- | |
| 34 | 01435-01235 | BOLT | A50001-- | |
| 35 | 01010-81240 | BOLT | A50001-- | |
| 36 | 01643-31232 | WASHER | A50001-- | |
| 37 | 427-62-25520 | BRACKET | A50001-A50031- | |
| 38 | 01010-81645 | BOLT | A50001-A50031- | |
| OR | ||||
| 38 | 01010-81635 | BOLT | A50032-- | |
| 39 | TUBE (SEE FIG. H4200-06A0 ) | A50001-- | ||
| 40 | TUBE (SEE FIG. H4200-05A0 ) | A50001-- | ||
| 41 | TUBE (SEE FIG. H4200-02A0 ) | A50001-- | ||
| 42 | TUBE (SEE FIG. H4200-02A0 ) | A50001-- | ||
| 43 | TUBE (SEE FIG. H4200-04A0 ) | A50001-- | ||
| 44 | HOSE (SEE FIG. H4200-05A0 ) | A50001-- |
