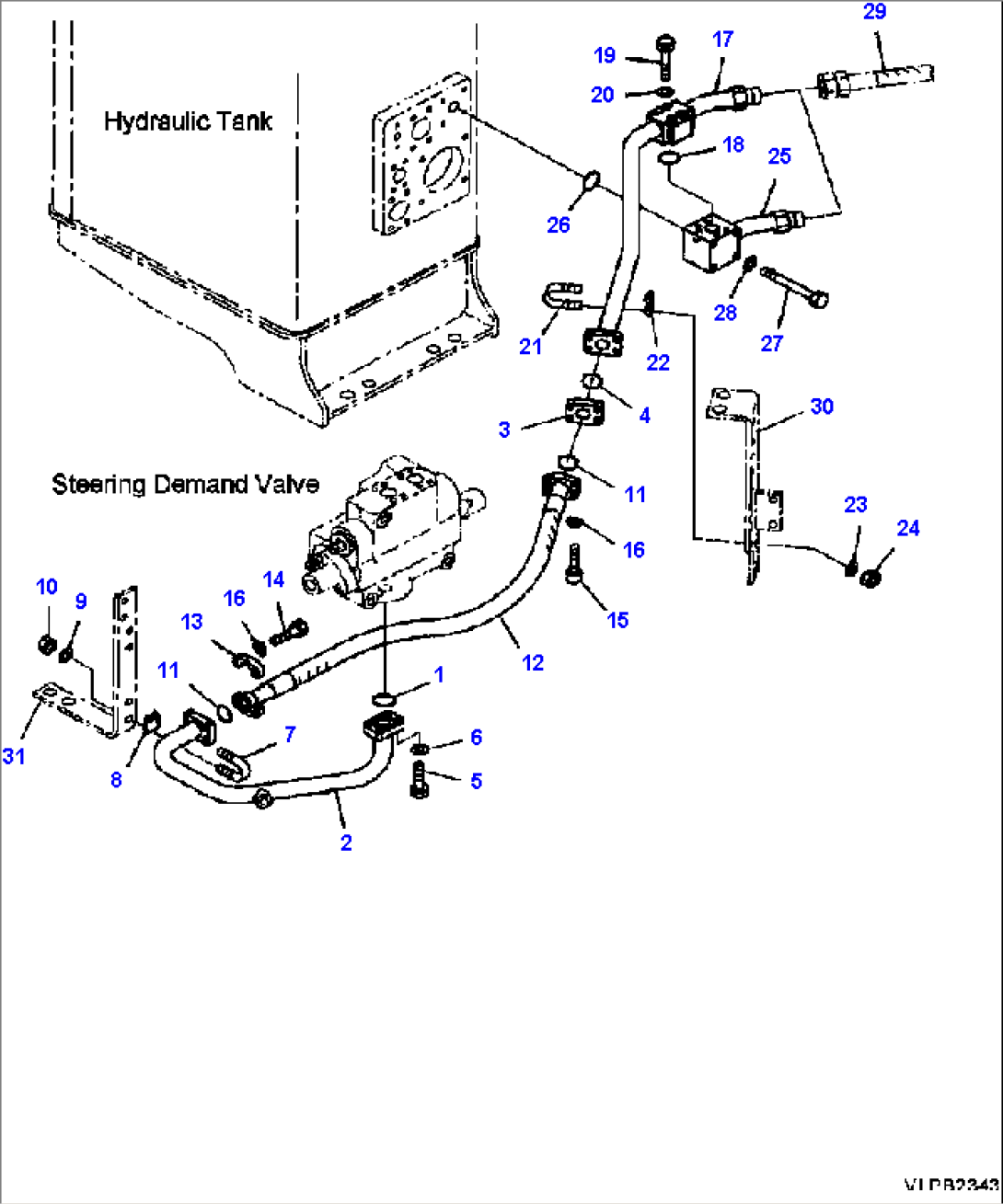

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07000-F3035 | O-RING | A52001-- | |
| 2 | 426-S99-2960 | TUBE | A52001-- | |
| 3 | 426-62-25910 | FLANGE | A52001-- | |
| 4 | 07000-F3032 | O-RING | A52001-- | |
| 5 | 07372-21045 | BOLT | A52001-- | |
| 6 | 01643-31032 | WASHER | A52001-- | |
| 7 | 07283-33450 | CLIP | A52001-- | |
| 8 | 07283-53444 | SEAT | A52001-- | |
| 9 | 01643-31032 | WASHER | A52001-- | |
| 10 | 01597-01009 | NUT | A52001-- | |
| 11 | 07000-F3032 | O-RING | A52001-- | |
| 12 | 07119-01011 | HOSE | A52001-- | |
| 13 | 07371-31049 | FLANGE, SPLIT | A52001-- | |
| 14 | 07372-21035 | BOLT | A52001-- | |
| 15 | 07372-21055 | BOLT | A52001-- | |
| 16 | 01643-51032 | WASHER | A52001-- | |
| 17 | 426-62-25122 | TUBE. | A52001-- | |
| 18 | 07000-13035 | O-RING | A52001-- | |
| 19 | 07372-21060 | BOLT | A52001-- | |
| 20 | 01643-51032 | WASHER | A52001-- | |
| 21 | 07283-33450 | CLIP | A52001-- | |
| 22 | 07283-53444 | SEAT | A52001-- | |
| 23 | 01643-31032 | WASHER | A52001-- | |
| 24 | 01597-01009 | NUT | A52001-- | |
| 25 | 426-62-25131 | TUBE | A52001-- | |
| 26 | 07000-13035 | O-RING | A52001-- | |
| 27 | 01010-81095 | BOLT | A52001-- | |
| 28 | 01643-31032 | WASHER | A52001-- | |
| 29 | HOSE (SEE FIG. C0120-01A0 ) | A52001-- | ||
| 30 | PLATE (SEE FIG. H4200-02A0 ) | A52001-- | ||
| 31 | PLATE (SEE FIG. H4200-05A0 ) | A52001-- |
