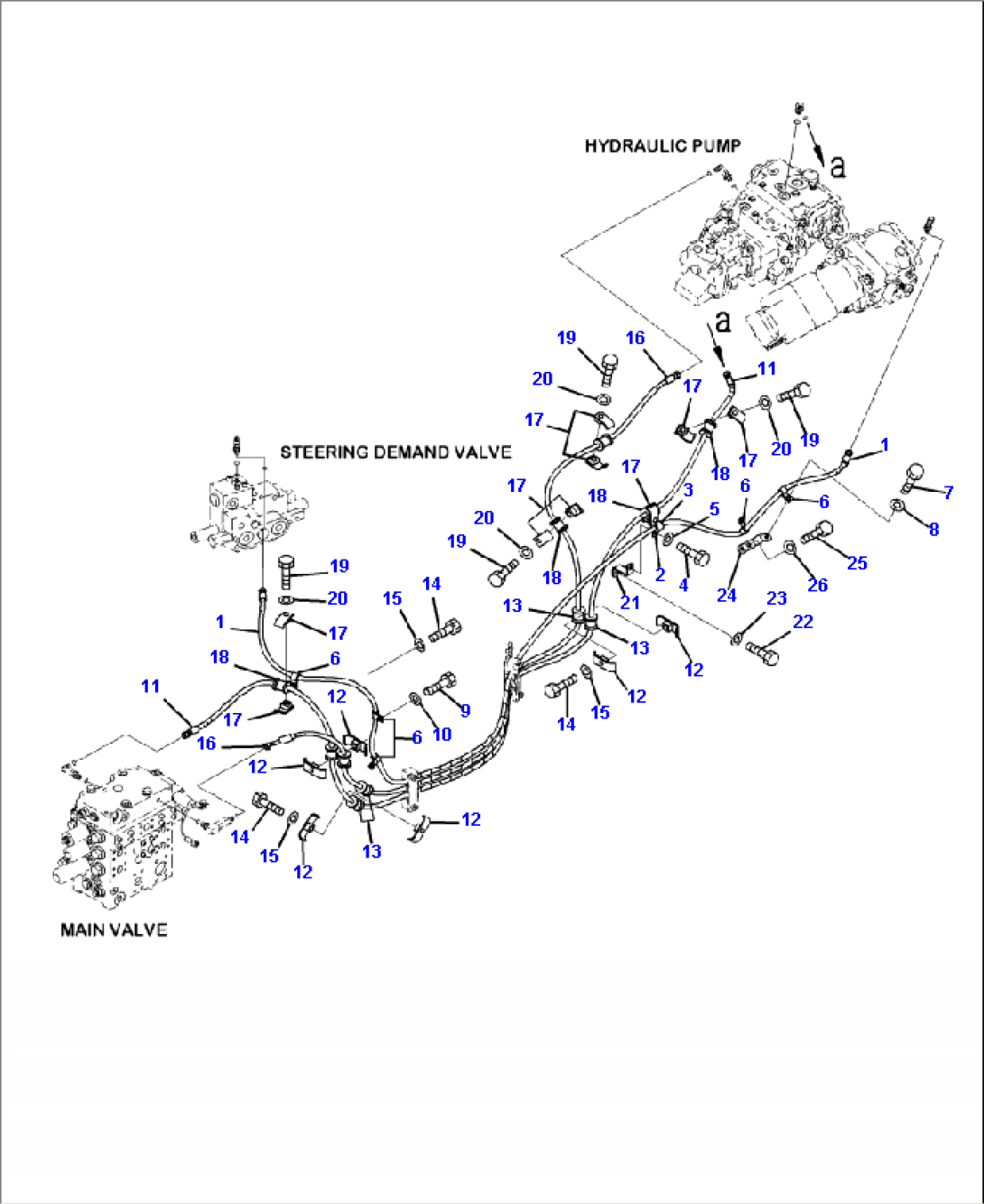

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-62-45890 | HOSE, 3500 MM | A47001-- | |
| N/I | 21U-62-34710 | BAND, YELLOW | A47001-- | |
| 2 | 04434-52112 | CLIP | A47001-- | |
| 3 | 07095-20314 | CUSHION | A47001-- | |
| 4 | 01010-81020 | BOLT | A47001-- | |
| 5 | 01643-31032 | WASHER | A47001-- | |
| 6 | 04434-51512 | CLIP | A47001-- | |
| 7 | 01010-81020 | BOLT | A47001-- | |
| 8 | 01643-31032 | WASHER | A47001-- | |
| 9 | 01010-81025 | BOLT | A47001-- | |
| 10 | 01643-31032 | WASHER | A47001-- | |
| 11 | 421-62-45760 | HOSE, 3480 MM | A47001-- | |
| N/I | 21U-62-34770 | BAND, WHITE | A47001-- | |
| 12 | 22P-62-13540 | CLAMP | A47001-- | |
| 13 | 07095-00314 | CUSHION | A47001-- | |
| 14 | 01010-81260 | BOLT | A47001-- | |
| 15 | 01643-31232 | WASHER | A47001-- | |
| 16 | 421-62-45770 | HOSE, 3030 MM | A47001-- | |
| N/I | 21U-62-34750 | BAND, BLUE | A47001-- | |
| 17 | 22P-62-13510 | CLAMP | A47001-- | |
| 18 | 07095-00314 | CUSHION | A47001-- | |
| 19 | 01010-81260 | BOLT | A47001-- | |
| 20 | 01643-31232 | WASHER | A47001-- | |
| 21 | 421-06-42240 | PLATE | A47001-- | |
| 22 | 01010-81020 | BOLT | A47001-- | |
| 23 | 01643-31032 | WASHER | A47001-- | |
| 24 | 421-62-46141 | BRACKET | A47001-- | |
| 25 | 01010-81020 | BOLT | A47001-- | |
| 26 | 01643-31032 | WASHER | A47001-- |
