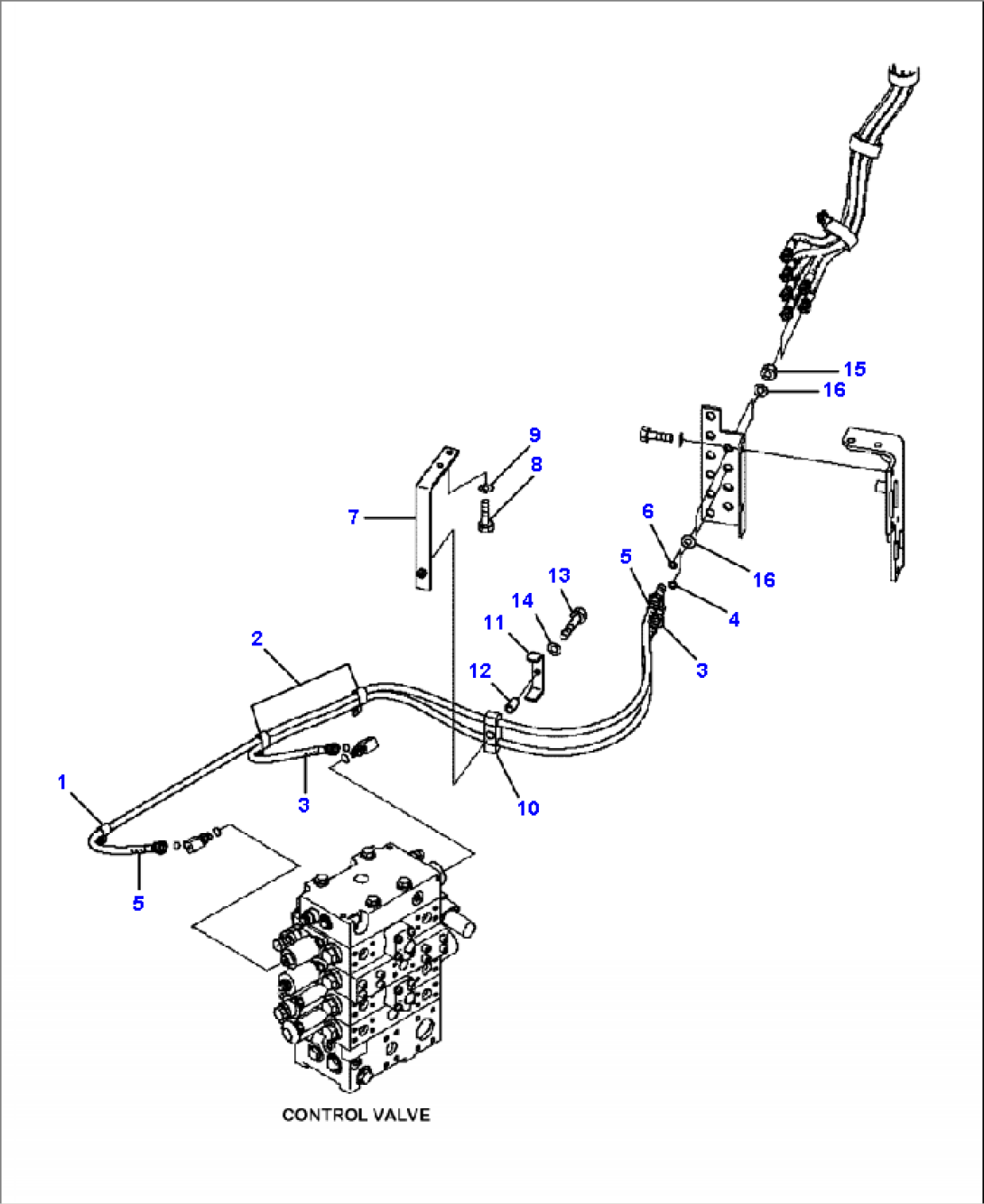

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 04434-51612 | CLIP | A47001-- | |
| 2 | 04435-51610 | CLIP | A47001-- | |
| 3 | 421-877-4571 | HOSE | A47001-- | |
| 4 | 02896-11009 | O-RING | A47001-- | |
| 5 | 421-877-4581 | HOSE | A47001-- | |
| 6 | 02896-11009 | O-RING | A47001-- | |
| 7 | 421-877-4590 | BRACKET | A47001-- | |
| 8 | 01010-81025 | BOLT | A47001-- | |
| 9 | 01643-31032 | WASHER | A47001-- | |
| 10 | 423-877-2540 | RUBBER | A47001-- | |
| 11 | 421-62-12120 | PLATE | A47001-- | |
| 12 | 419-43-17910 | SPACER | A47001-- | |
| 13 | 01010-81055 | BOLT | A47001-- | |
| 14 | 01643-31032 | WASHER | A47001-- | |
| 15 | 426-62-35620 | NUT | A47001-- | |
| 16 | 01643-31845 | WASHER | A47001-- |
