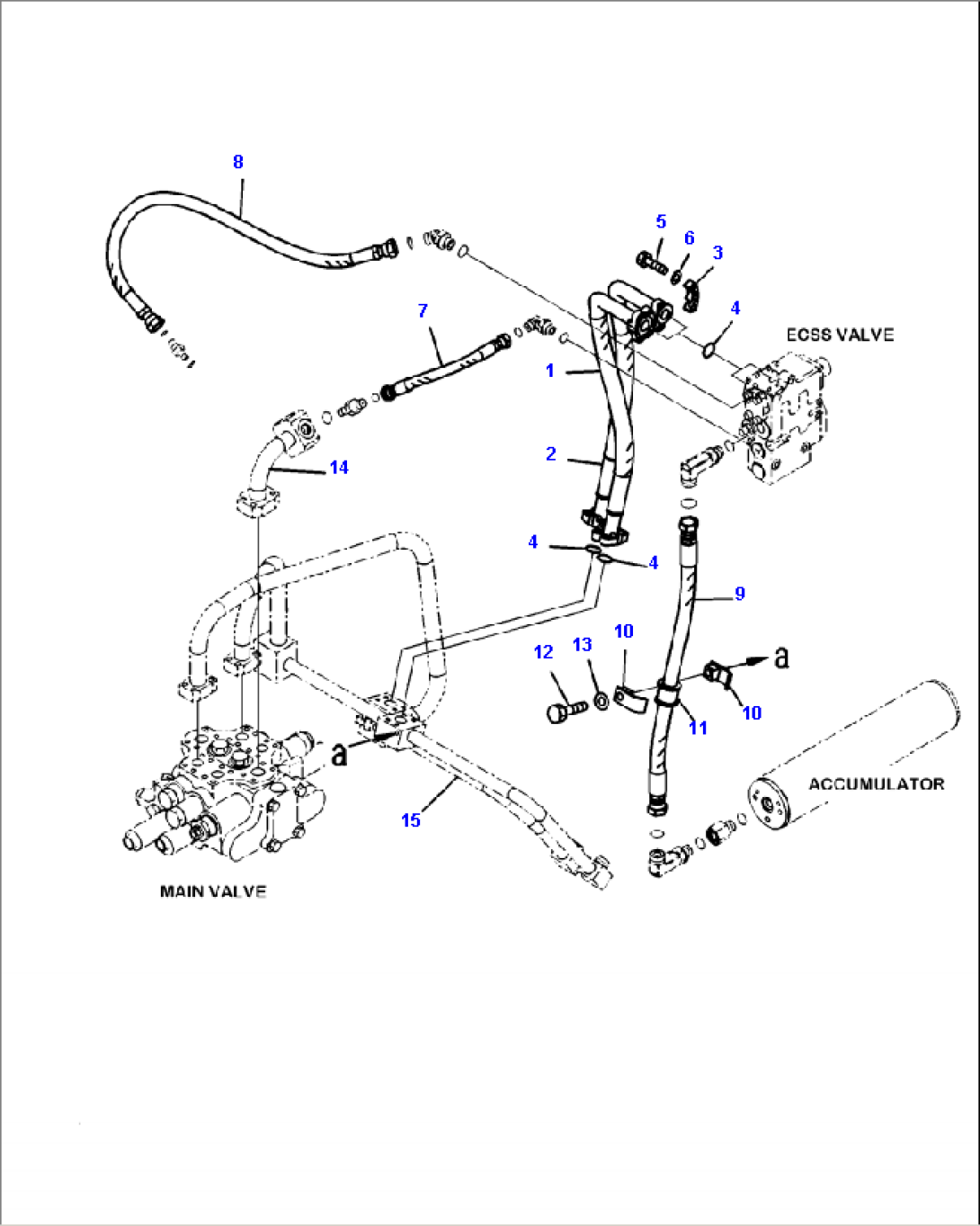

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 419-62-44430 | HOSE, 600 MM | A35001-- | |
| 2 | 419-62-33631 | HOSE, 630 MM | A35001-- | |
| 3 | 07371-31049 | FLANGE | A35001-- | |
| 4 | 07000-13032 | O-RING | A35001-- | |
| 5 | 07372-21035 | BOLT | A35001-- | |
| 6 | 01643-51032 | WASHER | A35001-- | |
| 7 | 419-62-34440 | HOSE, 335 MM | A35001-- | |
| 8 | 419-62-33592 | HOSE, 900 MM | A35001-- | |
| 9 | 02753-00608 | HOSE | A35001-- | |
| 10 | 07094-10620 | CLAMP | A35001-- | |
| 11 | 07095-00630 | CUSHION | A35001-- | |
| 12 | 01010-81065 | BOLT | A35001-- | |
| 13 | 01643-31032 | WASHER | A35001-- | |
| 14 | TUBE (SEE FIG. H4200-02A0) | A35001-- | ||
| 15 | TUBE (SEE FIG. H4200-07A0 ) | A35001-- |
