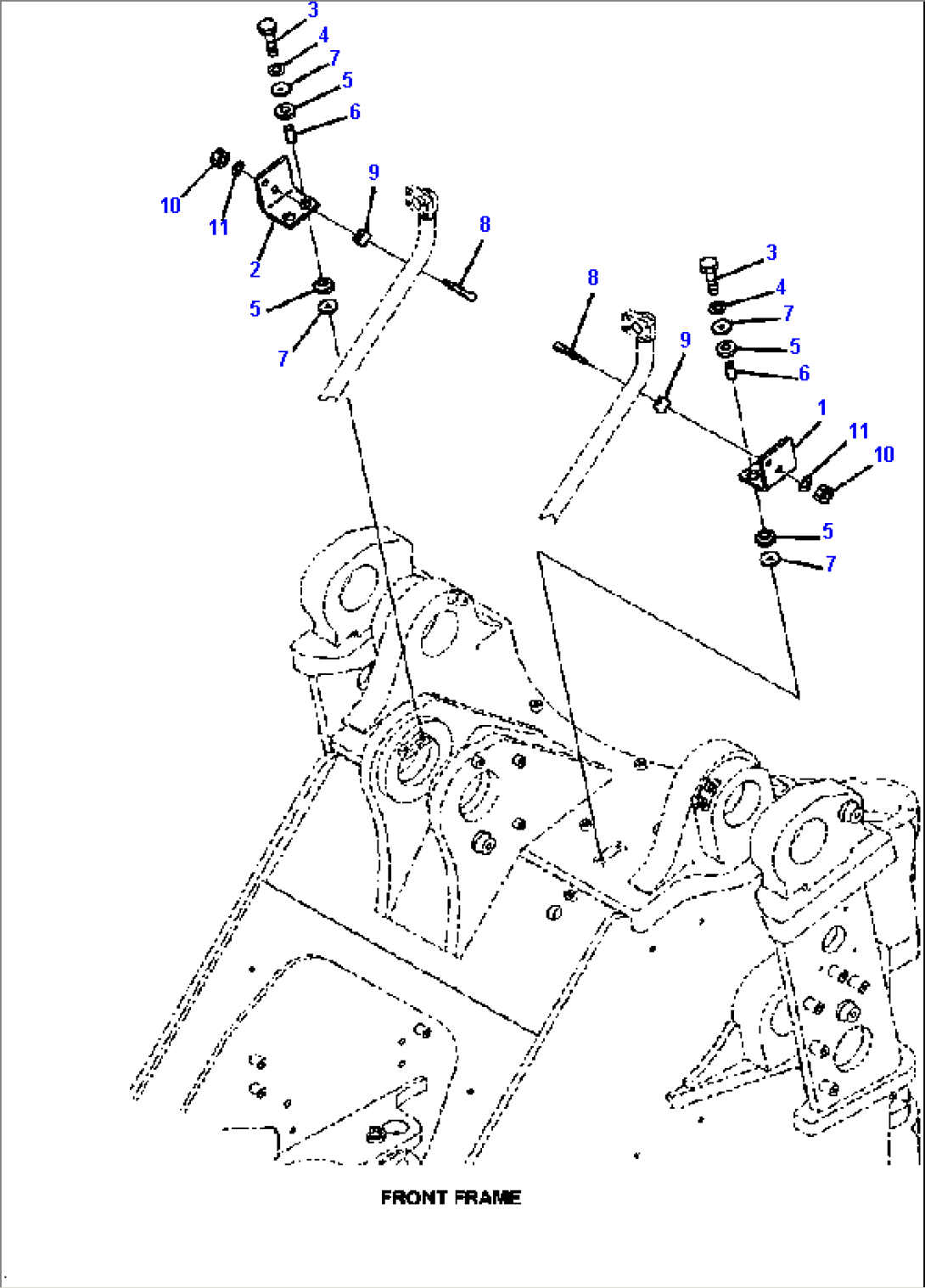

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-877-3530 | PLATE, L.H. | A45001-- | |
| 2 | 421-877-3540 | PLATE, R.H. | A45001-- | |
| 3 | 01010-81060 | BOLT | A45001-- | |
| 4 | 01643-31032 | WASHER | A45001-- | |
| 5 | 419-43-17930 | CUSHION | A45001-- | |
| 6 | 421-877-2250 | SPACER | A45001-- | |
| 7 | 415-64-13120 | WASHER | A45001-- | |
| 8 | 07283-33450 | CLIP | A45001-- | |
| 9 | 07283-53444 | SEAT | A45001-- | |
| 10 | 01597-01009 | NUT | A45001-- | |
| 11 | 01643-31032 | WASHER | A45001-- |
