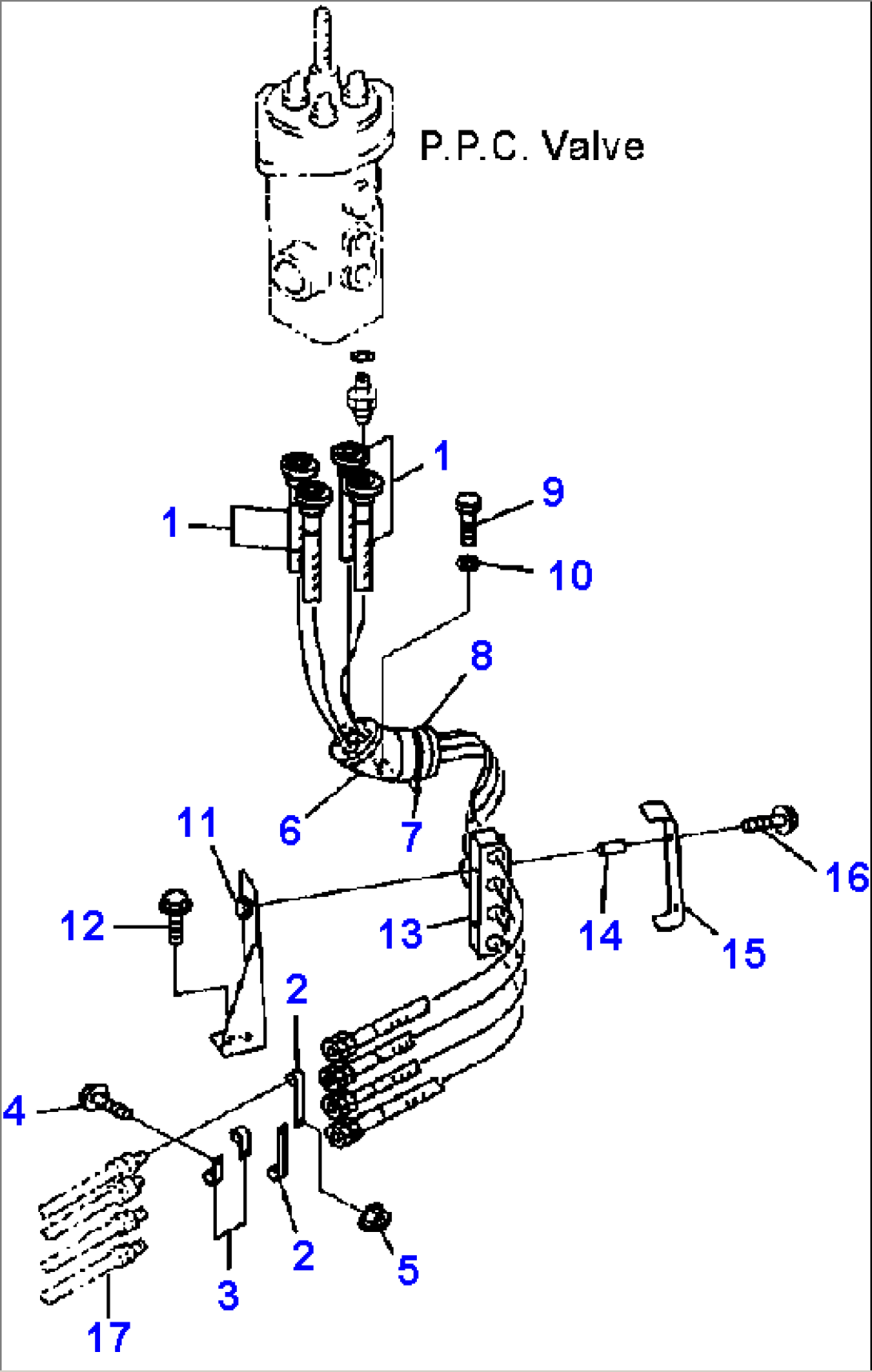

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 209-62-76510 | HOSE 1400 MM | A50001-- | |
| 2 | 08035-03008 | CLIP | A50001-- | |
| 3 | 08036-01814 | CLIP | A50001-- | |
| 4 | 01435-01025 | BOLT | A50001-- | |
| 5 | 01584-01008 | NUT | A50001-- | |
| 6 | 427-62-11650 | COVER | A50001-- | |
| 7 | 08034-20536 | BAND | A50001-- | |
| 8 | 198-911-4480 | CLIP | A50001-- | |
| 9 | 01010-81016 | BOLT | A50001-- | |
| 10 | 01643-31032 | WASHER | A50001-- | |
| 11 | 427-62-11620 | BRACKET | A50001-- | |
| 12 | 01435-01020 | BOLT | A50001-- | |
| 13 | 427-62-21630 | RUBBER | A50001-- | |
| 14 | 20T-03-11130 | SPACER | A50001-- | |
| 15 | 427-62-11640 | PLATE | A50001-- | |
| 16 | 01435-01055 | BOLT | A50001-- | |
| 17 | TUBE (SEE FIG. H4200-18A0 ) | A50001-- |
