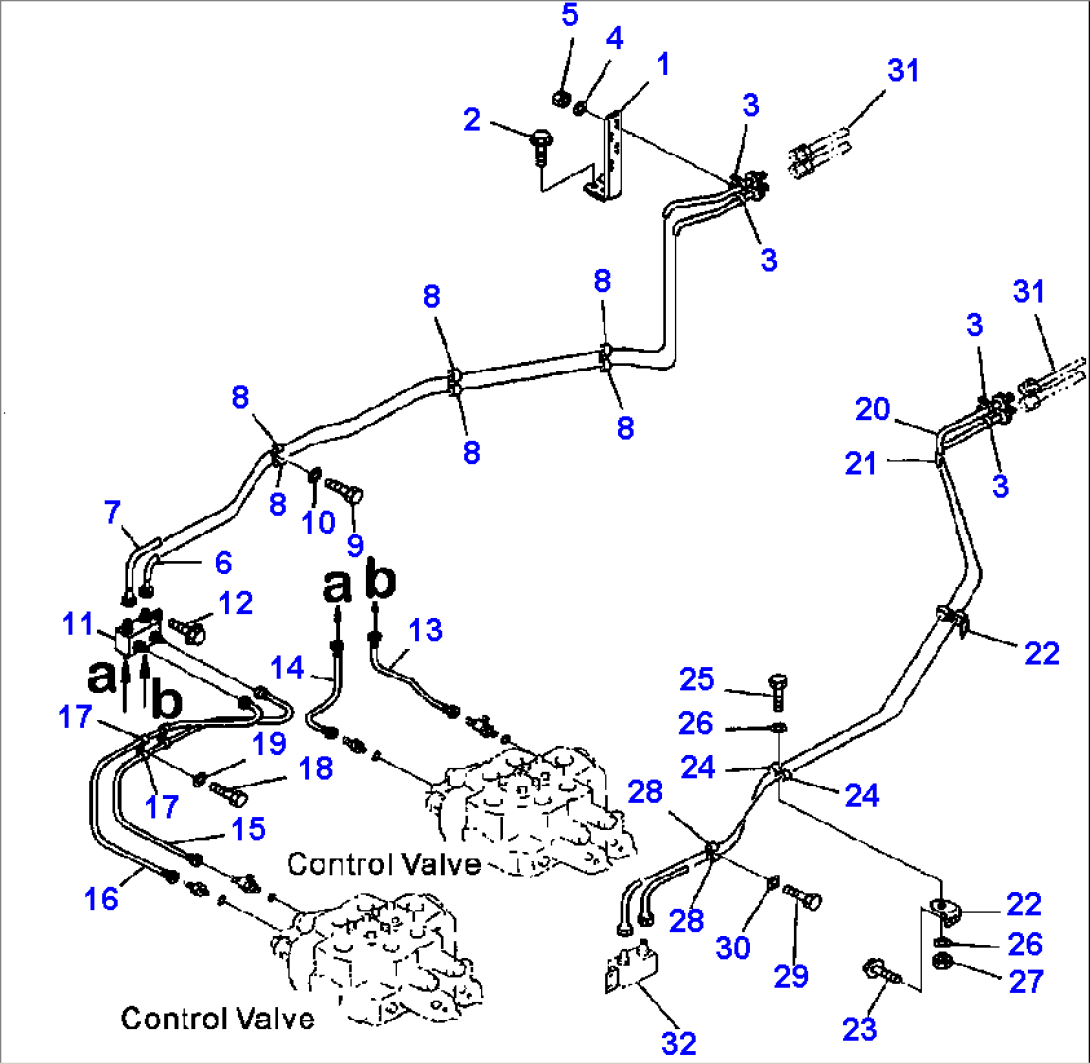

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-62-11610 | BRACKET | A50001-- | |
| 2 | 01435-01225 | BOLT | A50001-- | |
| 3 | 07283-31529 | CLIP | A50001-- | |
| 4 | 01643-30823 | WASHER | A50001-- | |
| 5 | 01596-00807 | NUT | A50001-- | |
| 6 | 427-62-11432 | TUBE | A50001-- | |
| 7 | 427-62-11412 | TUBE | A50001-- | |
| 8 | 08035-01510 | CLIP | A50001-- | |
| 9 | 01010-81020 | BOLT | A50001-- | |
| 10 | 01643-31032 | WASHER | A50001-- | |
| 11 | 427-62-11451 | BLOCK | A50001-- | |
| 12 | 01435-01020 | BOLT | A50001-- | |
| 13 | 427-62-11461 | TUBE | A50001-- | |
| 14 | 427-62-11491 | TUBE | A50001-- | |
| 15 | 427-62-11483 | TUBE | A50017-- | |
| OR | ||||
| 15 | 427-62-11482 | TUBE | A50001-A50016- | |
| 16 | 427-62-11511 | TUBE | A50001-- | |
| 17 | 04434-51510 | CLIP | A50001-- | |
| 18 | 01010-81020 | BOLT | A50001-- | |
| 19 | 01643-31032 | WASHER | A50001-- | |
| 20 | 427-62-11442 | TUBE | A50001-- | |
| 21 | 427-62-11422 | TUBE | A50001-- | |
| 22 | 427-62-11560 | PLATE | A50001-- | |
| 23 | 01435-01020 | BOLT | A50001-- | |
| 24 | 08035-01510 | CLIP | A50001-- | |
| 25 | 01010-81020 | BOLT | A50001-- | |
| 26 | 01643-31032 | WASHER | A50001-- | |
| 27 | 01580-11008 | NUT | A50001-- | |
| 28 | 08035-01510 | CLIP | A50001-- | |
| 29 | 01010-81020 | BOLT | A50001-- | |
| 30 | 01643-31032 | WASHER | A50001-- | |
| 31 | TUBE (SEE FIG. H4200-17A0 ) | A50001-- | ||
| 32 | BLOCK (SEE FIG. H4200-19A0 ) | A50001-- |
