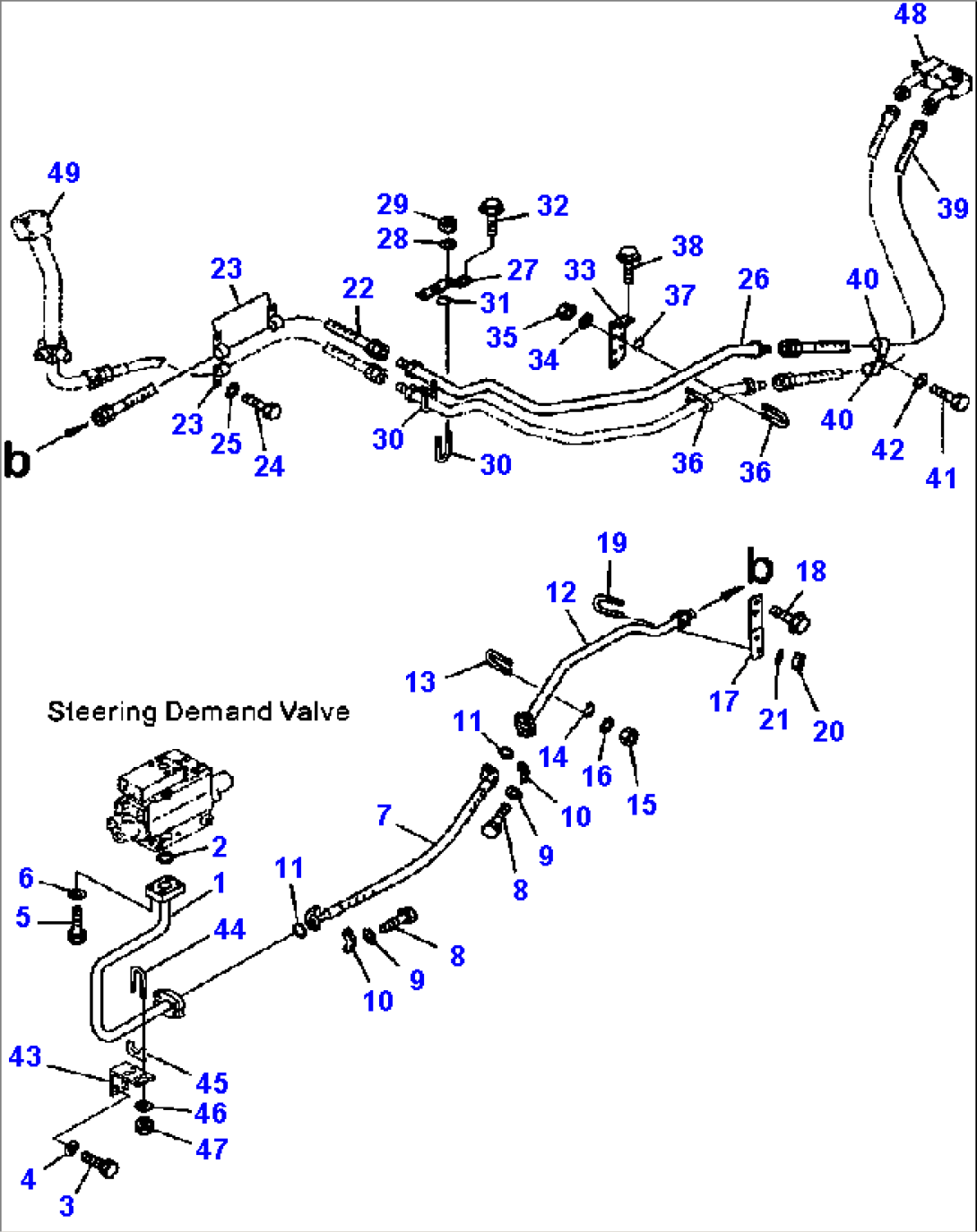

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-N35-A130 | TUBE | A50013-- | |
| OR | ||||
| 1 | 427-N35-1271 | TUBE | A50001-A50012- | |
| 2 | 07000-F3048 | O-RING | A50001-- | |
| 3 | 01010-81235 | BOLT | A50001-- | |
| 4 | 01643-31232 | WASHER | A50001-- | |
| 5 | 01010-81455 | BOLT | A50001-- | |
| 6 | 20D-14-11510 | WASHER | A50001-- | |
| 7 | 07119-01417 | HOSE | A50001-- | |
| 8 | 07372-21240 | BOLT | A50001-- | |
| 9 | 01643-51232 | WASHER | A50001-- | |
| 10 | 07371-31465 | FLANGE, SPLIT | A50001-- | |
| 11 | 07000-E3048 | O-RING | A50001-- | |
| 12 | 427-62-14290 | TUBE | A50001-- | |
| 13 | 07283-34354 | CLIP | A50001-- | |
| 14 | 07283-54353 | SEAT | A50001-- | |
| 15 | 01597-01009 | NUT | A50001-- | |
| 16 | 01643-31032 | WASHER | A50001-- | |
| 17 | 427-62-14361 | PLATE | A50001-- | |
| 18 | 01435-01225 | BOLT | A50001-- | |
| 19 | 07283-34346 | CLIP | A50001-- | |
| 20 | 01597-01009 | NUT | A50001-- | |
| 21 | 01643-31032 | WASHER | A50001-- | |
| 22 | 07102-21415 | HOSE | A50001-- | |
| 23 | 19M-60-12720 | CLIP | A50001-- | |
| 24 | 01020-81232 | BOLT | A50001-- | |
| 25 | 01643-31232 | WASHER | A50001-- | |
| 26 | 427-62-25170 | TUBE | A50001-- | |
| 27 | 427-62-25241 | PLATE | A50001-- | |
| 28 | 01643-31032 | WASHER | A50001-- | |
| 29 | 01597-01009 | NUT | A50001-- | |
| 30 | 07283-34354 | CLIP | A50001-- | |
| 31 | 07283-54353 | SEAT | A50001-- | |
| 32 | 01435-01225 | BOLT | A50001-- | |
| 33 | 427-62-25221 | PLATE | A50001-- | |
| 34 | 01643-31032 | WASHER | A50001-- | |
| 35 | 01597-01009 | NUT | A50001-- | |
| 36 | 07283-34354 | CLIP | A50001-- | |
| 37 | 07283-54353 | SEAT | A50001-- | |
| 38 | 01435-01230 | BOLT | A50001-- | |
| 39 | 07102-21412 | HOSE | A50001-- | |
| 40 | 19M-60-12720 | CLIP | A50001-- | |
| 41 | 01010-81020 | BOLT | A50001-- | |
| 42 | 01643-31032 | WASHER | A50001-- | |
| 43 | 427-N35-1170 | PLATE | A50001-- | |
| 44 | 07283-34354 | CLIP | A50001-- | |
| 45 | 07283-54353 | SEAT | A50001-- | |
| 46 | 01643-31032 | WASHER | A50001-- | |
| 47 | 01597-01009 | NUT | A50001-- | |
| 48 | BLOCK (SEE FIG. H4200-22A0 ) | A50001-- | ||
| 49 | TUBE (SEE FIG. H4200-22A0 ) | A50001-- |
