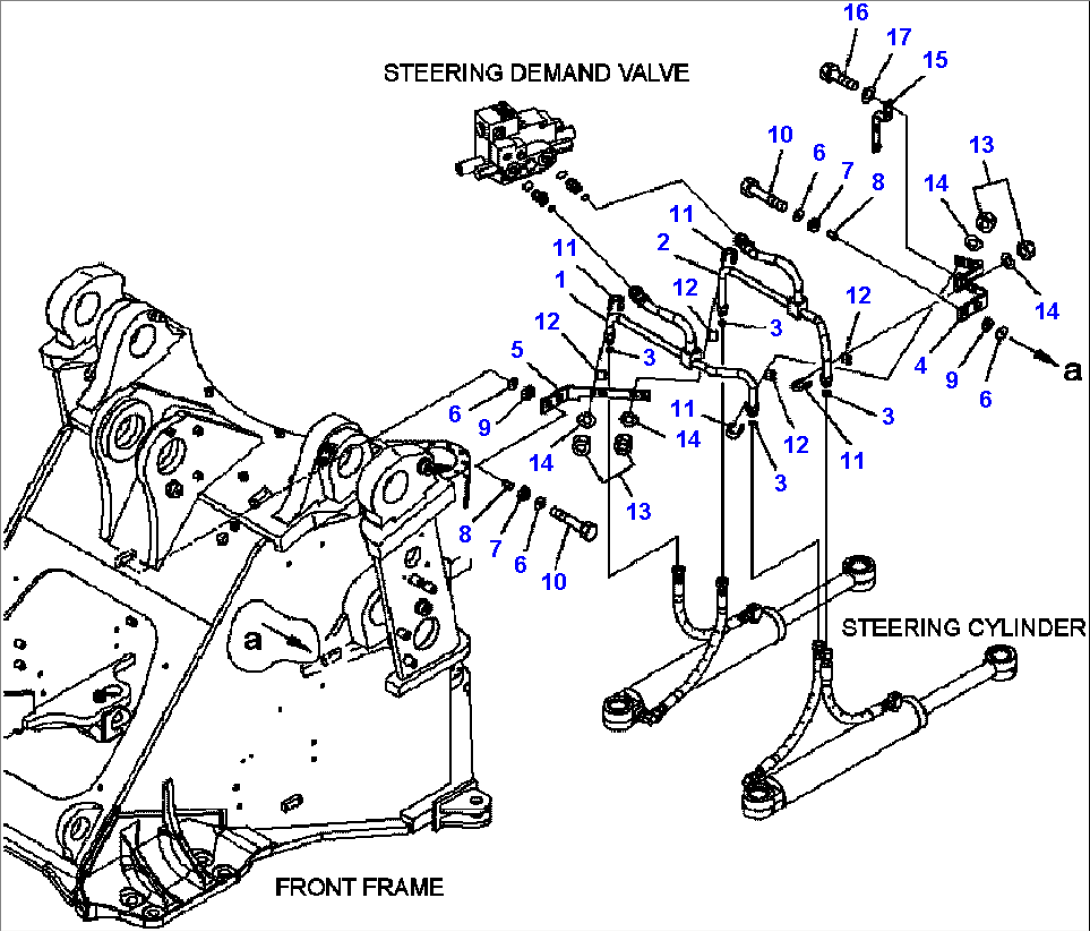

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-62-42370 | TUBE | A45001-- | |
| 2 | 421-62-42380 | TUBE | A45001-- | |
| 3 | 02896-11015 | O-RING | A45001-- | |
| 4 | 421-62-42290 | PLATE, L.H. | A45001-- | |
| 5 | 421-62-21130 | PLATE, R.H. | A45001-- | |
| 6 | 415-64-13120 | WASHER | A45001-- | |
| 7 | 415-64-13130 | CUSHION | A45001-- | |
| 8 | 421-62-18560 | SPACER | A45001-- | |
| 9 | 419-43-17930 | CUSHION | A45001-- | |
| 10 | 01010-81050 | BOLT | A45001-- | |
| 11 | 07283-32244 | CLIP | A45001-- | |
| 12 | 07283-52232 | SEAT | A45001-- | |
| 13 | 01597-01009 | NUT | A45001-- | |
| 14 | 01643-31032 | WASHER | A45001-- | |
| 15 | 421-62-41431 | BRACKET | A45001-- | |
| 16 | 01010-81020 | BOLT | A45001-- | |
| 17 | 01643-31032 | WASHER | A45001-- |
