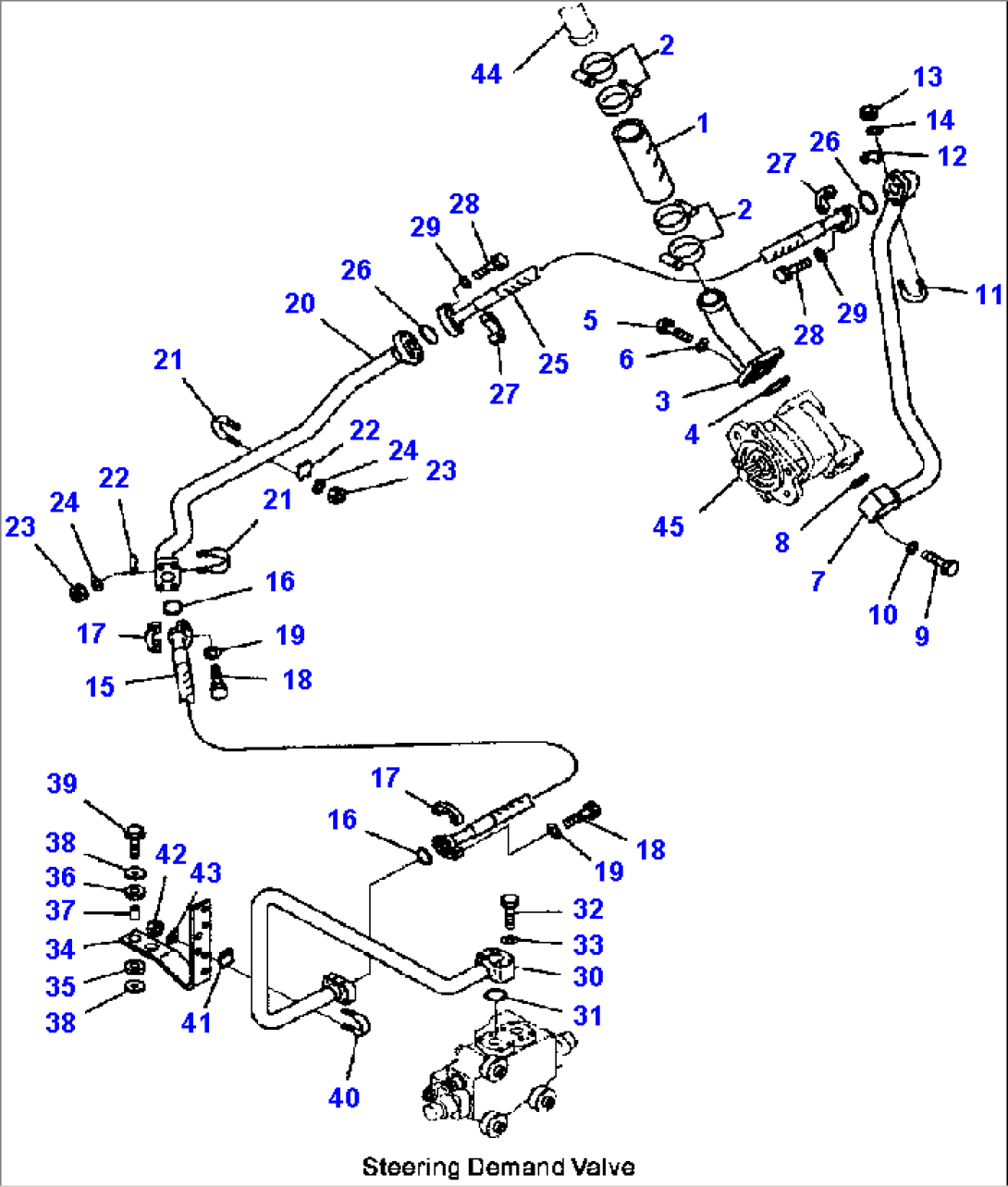

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07260-04718 | HOSE | A70001 -- | |
| 2 | 07281-00709 | CLAMP | A70001 -- | |
| 3 | 425-62-21111 | TUBE | A70001 -- | |
| 4 | 07000-12060 | O-RING | A70001 -- | |
| 5 | 01010-81035 | BOLT | A70001 -- | |
| 6 | 01643-51032 | WASHER | A70001 -- | |
| 7 | 425-62-21120 | TUBE | A70001 -- | |
| 8 | 07000-13035 | O-RING | A70001 -- | |
| 9 | 01010-81060 | BOLT | A70001 -- | |
| 10 | 01643-51032 | WASHER | A70001 -- | |
| 11 | 07283-33450 | CLIP | A70001 -- | |
| 12 | 07283-53444 | SEAT | A70001 -- | |
| 13 | 01596-01009 | NUT | A70001 -- | |
| 14 | 01643-31032 | WASHER | A70001 -- | |
| 15 | 07089-01010 | HOSE | A70001 -- | |
| 16 | 07000-13032 | O-RING | A70001 -- | |
| 17 | 07371-31049 | FLANGE, SPLIT | A70001 -- | |
| 18 | 07372-21035 | BOLT | A70001 -- | |
| 19 | 01643-51032 | WASHER | A70001 -- | |
| 20 | 425-62-21131 | TUBE | A70001 -- | |
| 21 | 07283-33450 | CLIP | A70001 -- | |
| 22 | 07283-53444 | SEAT | A70001 -- | |
| 23 | 01597-01009 | NUT | A70001 -- | |
| 24 | 01643-31032 | WASHER | A70001 -- | |
| 25 | 07089-01010 | HOSE | A70001 -- | |
| 26 | 07000-13032 | O-RING | A70001 -- | |
| 27 | 07371-31049 | FLANGE, SPLIT | A70001 -- | |
| 28 | 07372-21035 | BOLT | A70001 -- | |
| 29 | 01643-51032 | WASHER | A70001 -- | |
| 30 | 425-62-21140 | TUBE | A70001 -- | |
| 31 | 07000-13035 | O-RING | A70001 -- | |
| 32 | 01010-81060 | BOLT | A70001 -- | |
| 33 | 01643-51032 | WASHER | A70001 -- | |
| 34 | 425-62-21220 | PLATE | A70001 -- | |
| 35 | 415-64-13130 | CUSHION | A70001 -- | |
| 36 | 419-43-17930 | CUSHION | A70001 -- | |
| 37 | 421-62-18560 | SPACER | A70001 -- | |
| 38 | 415-64-13120 | WASHER | A70001 -- | |
| 39 | 01435-01050 | BOLT | A70001 -- | |
| 40 | CLIP (SEE FIG. H4200-10A0 ) | A70001 -- | ||
| 41 | SEAT (SEE FIG. H4200-10A0 ) | A70001 -- | ||
| 42 | NUT (SEE FIG. H4200-10A0 ) | A70001 -- | ||
| 43 | WASHER (SEE FIG. H4200-10A0 ) | A70001 -- | ||
| 44 | TUBE (SEE FIG. H4200-01A0 ) | A70001 -- | ||
| 45 | PUMP (SEE FIG. H0210-01A0 ) | A70001 -- |
