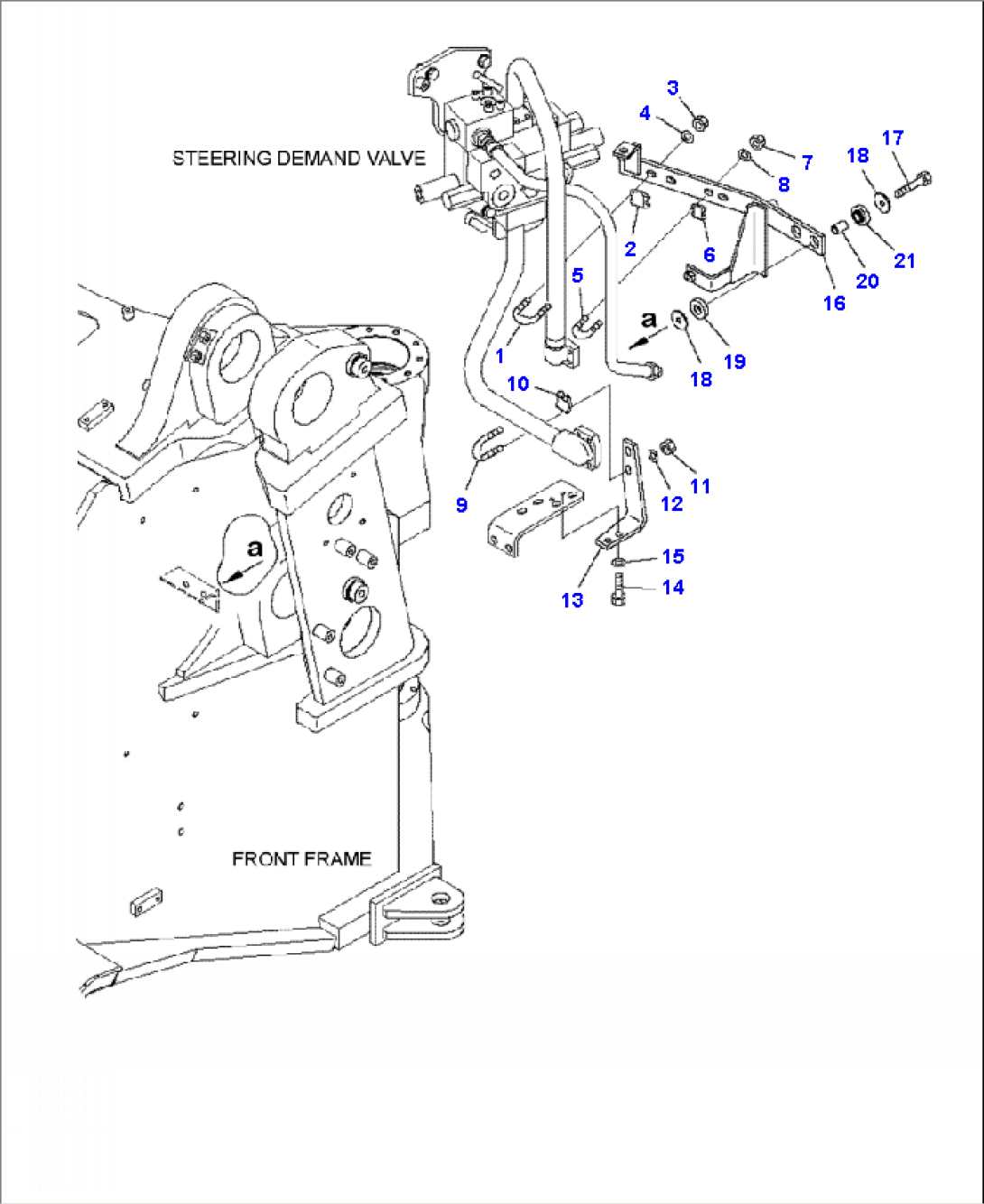

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07283-33450 | CLIP | A47001-- | |
| 2 | 07283-53444 | SEAT | A47001-- | |
| 3 | 01597-01009 | NUT | A47001-- | |
| 4 | 01643-31032 | WASHER | A47001-- | |
| 5 | 07283-32244 | CLIP | A47001-- | |
| 6 | 07283-52232 | SEAT | A47001-- | |
| 7 | 01597-01009 | NUT | A47001-- | |
| 8 | 01643-31032 | WASHER | A47001-- | |
| 9 | 07283-33450 | CLIP | A47001-- | |
| 10 | 07283-53444 | SEAT | A47001-- | |
| 11 | 01597-01009 | NUT | A47001-- | |
| 12 | 01643-31032 | WASHER | A47001-- | |
| 13 | 421-62-42120 | PLATE | A47001-- | |
| 14 | 01010-81025 | BOLT | A47001-- | |
| 15 | 01643-31032 | WASHER | A47001-- | |
| 16 | 421-62-42142 | BRACKET | A47001-- | |
| 17 | 01010-81055 | BOLT | A47001-- | |
| 18 | 415-64-13120 | WASHER | A47001-- | |
| 19 | 415-64-13130 | CUSHION | A47001-- | |
| 20 | 421-62-18560 | SPACER | A47001-- | |
| 21 | 419-43-17930 | CUSHION | A47001-- |
