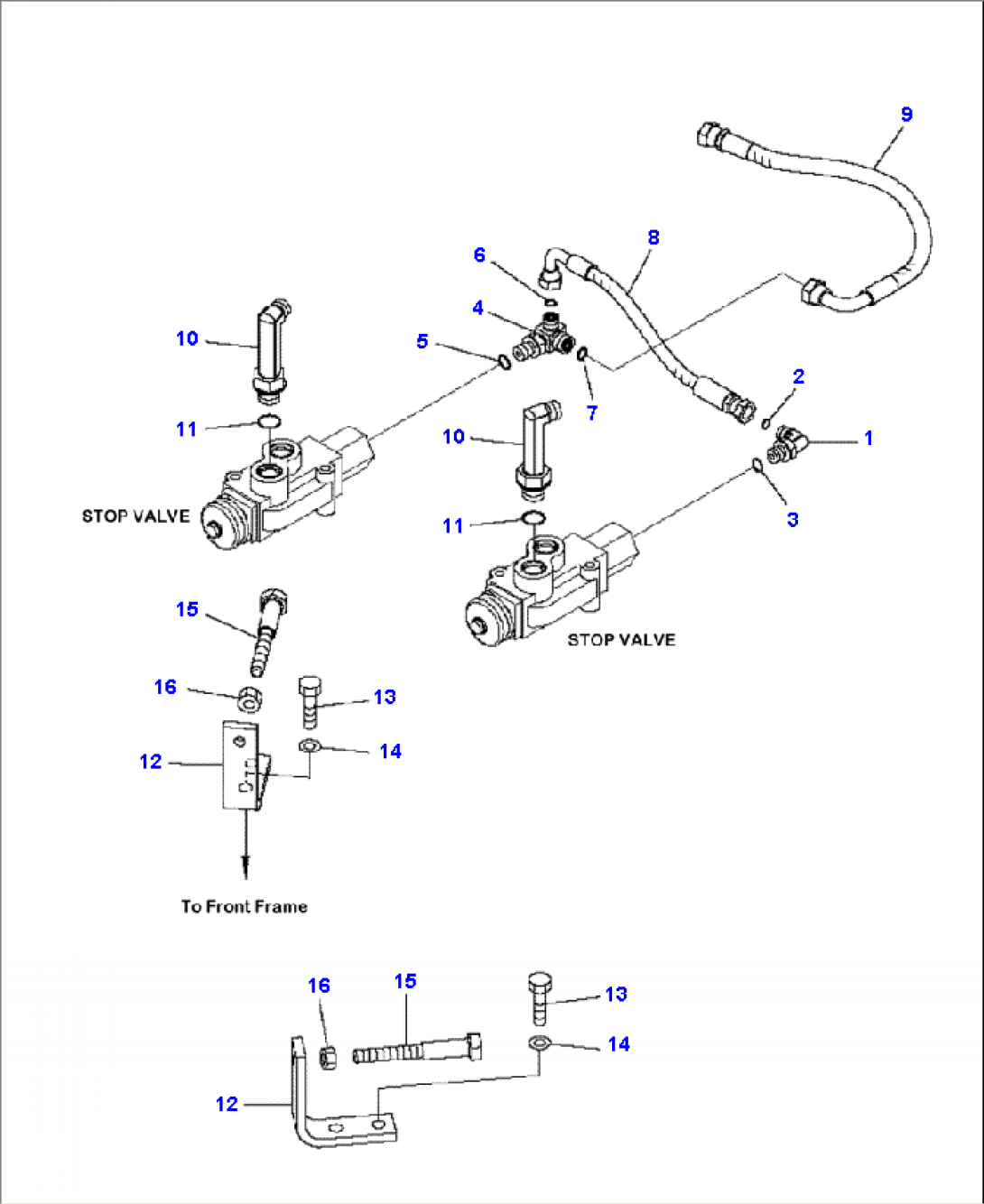

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02782-10210 | ELBOW | A47001-- | |
| 2 | 02896-11008 | O-RING | A47001-- | |
| 3 | 07002-11423 | O-RING | A47001-- | |
| 4 | 20Y-62-45710 | TEE | A47001-- | |
| 5 | 07002-11423 | O-RING | A47001-- | |
| 6 | 02896-11008 | O-RING | A47001-- | |
| 7 | 02896-11009 | O-RING | A47001-- | |
| 8 | 423-62-41730 | HOSE, 280 MM | A47001-- | |
| 9 | 421-62-46150 | HOSE | A47001-- | |
| 10 | 02782-10317 | ELBOW | A47001-- | |
| 11 | 07002-12034 | O-RING | A47001-- | |
| 12 | 421-62-12310 | BRACKET | A47001-- | |
| 13 | 01010-81030 | BOLT | A47001-- | |
| 14 | 01643-31032 | WASHER | A47001-- | |
| 15 | 421-62-12320 | BOLT | A47001-- | |
| 16 | 01580-11210 | NUT | A47001-- |
