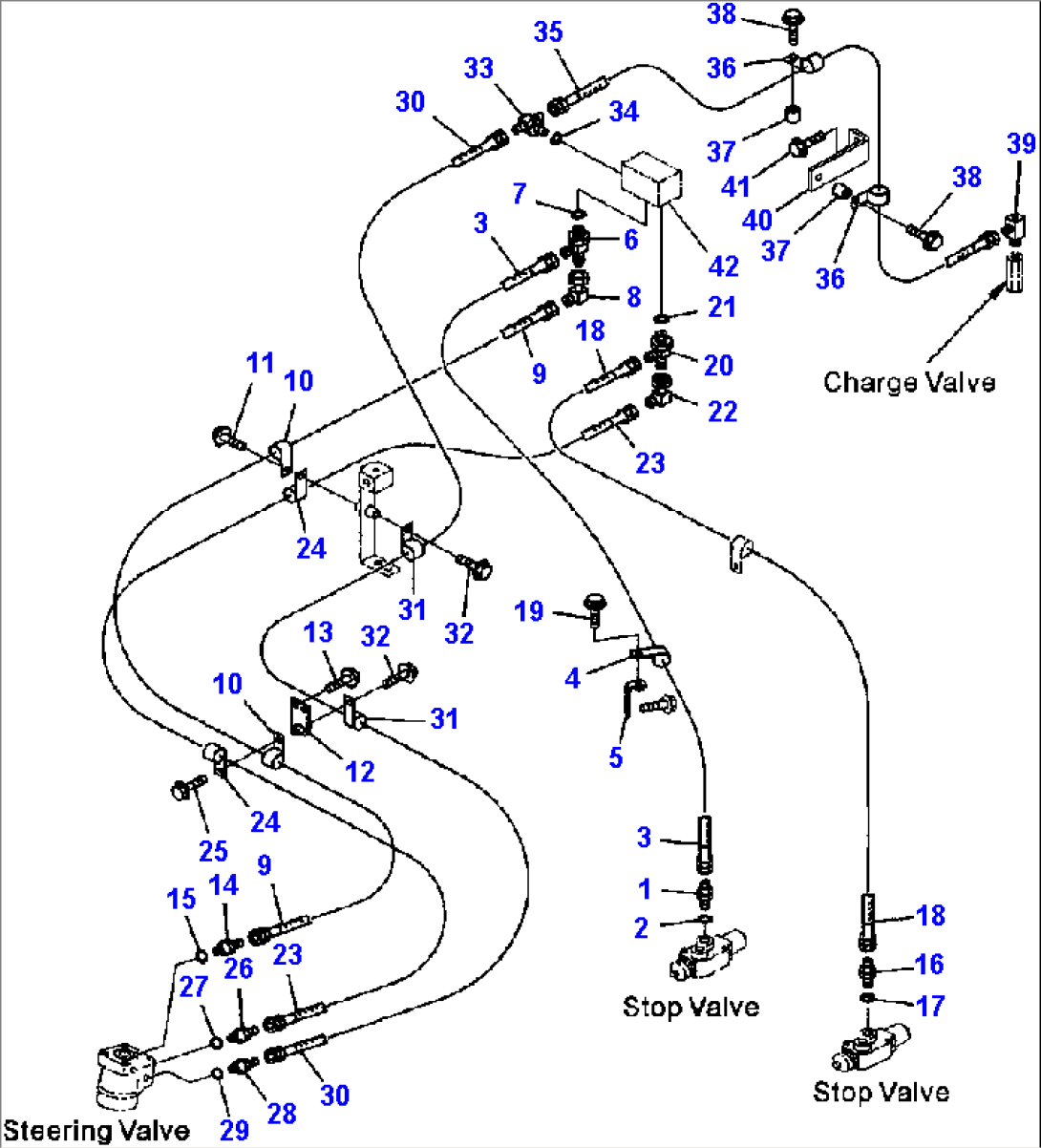

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07230-20315 | UNION | A50001-- | |
| 2 | 07002-22034 | O-RING | A50001-- | |
| 3 | 07102-20309 | HOSE | A50001-- | |
| 4 | 04434-51810 | CLIP | A50001-- | |
| 5 | 426-35-11590 | BRACKET | A50001-- | |
| 6 | 415-62-11571 | TEE | A50001-- | |
| 7 | 07002-12034 | O-RING | A50001-- | |
| 8 | 415-62-11350 | ELBOW | A50001-- | |
| 9 | 07102-20314 | HOSE | A50001-- | |
| 10 | 04434-51810 | CLIP | A50001-- | |
| 11 | 01435-01016 | BOLT | A50001-- | |
| 12 | 427-62-21120 | BRACKET | A50001-- | |
| 13 | 01435-01020 | BOLT | A50001-- | |
| 14 | 415-62-11550 | NIPPLE | A50001-- | |
| 15 | 415-62-11560 | O-RING | A50001-- | |
| 16 | 07230-20315 | UNION | A50001-- | |
| 17 | 07002-22034 | O-RING | A50001-- | |
| 18 | 07102-20309 | HOSE | A50001-- | |
| 19 | 01435-01016 | BOLT | A50001-- | |
| 20 | 415-62-11571 | TEE | A50001-- | |
| 21 | 07002-12034 | O-RING | A50001-- | |
| 22 | 415-62-11350 | ELBOW | A50001-- | |
| 23 | 07102-20314 | HOSE | A50001-- | |
| 24 | 04434-51810 | CLIP | A50001-- | |
| 25 | 01435-01016 | BOLT | A50001-- | |
| 26 | 415-62-11550 | NIPPLE | A50001-- | |
| 27 | 415-62-11560 | O-RING | A50001-- | |
| 28 | 415-62-11550 | NIPPLE | A50001-- | |
| 29 | 415-62-11560 | O-RING | A50001-- | |
| 30 | 07102-20314 | HOSE | A50001-- | |
| 31 | 04434-51810 | CLIP | A50001-- | |
| 32 | 01435-01016 | BOLT | A50001-- | |
| 33 | 415-62-11571 | TEE | A50001-- | |
| 34 | 07002-12034 | O-RING | A50001-- | |
| 35 | 07102-20313 | HOSE | A50001-- | |
| 36 | 04434-51810 | CLIP | A50001-- | |
| 37 | 419-43-17910 | SPACER | A50001-- | |
| 38 | 01435-01045 | BOLT | A50001-- | |
| 39 | 427-S33-2570 | ELBOW | A50001-- | |
| 40 | 427-04-11130 | BRACKET | A50001-- | |
| 41 | 01435-01016 | BOLT | A50001-- | |
| 42 | BLOCK (SEE FIG. H4410-05A0 ) | A50001-- |
