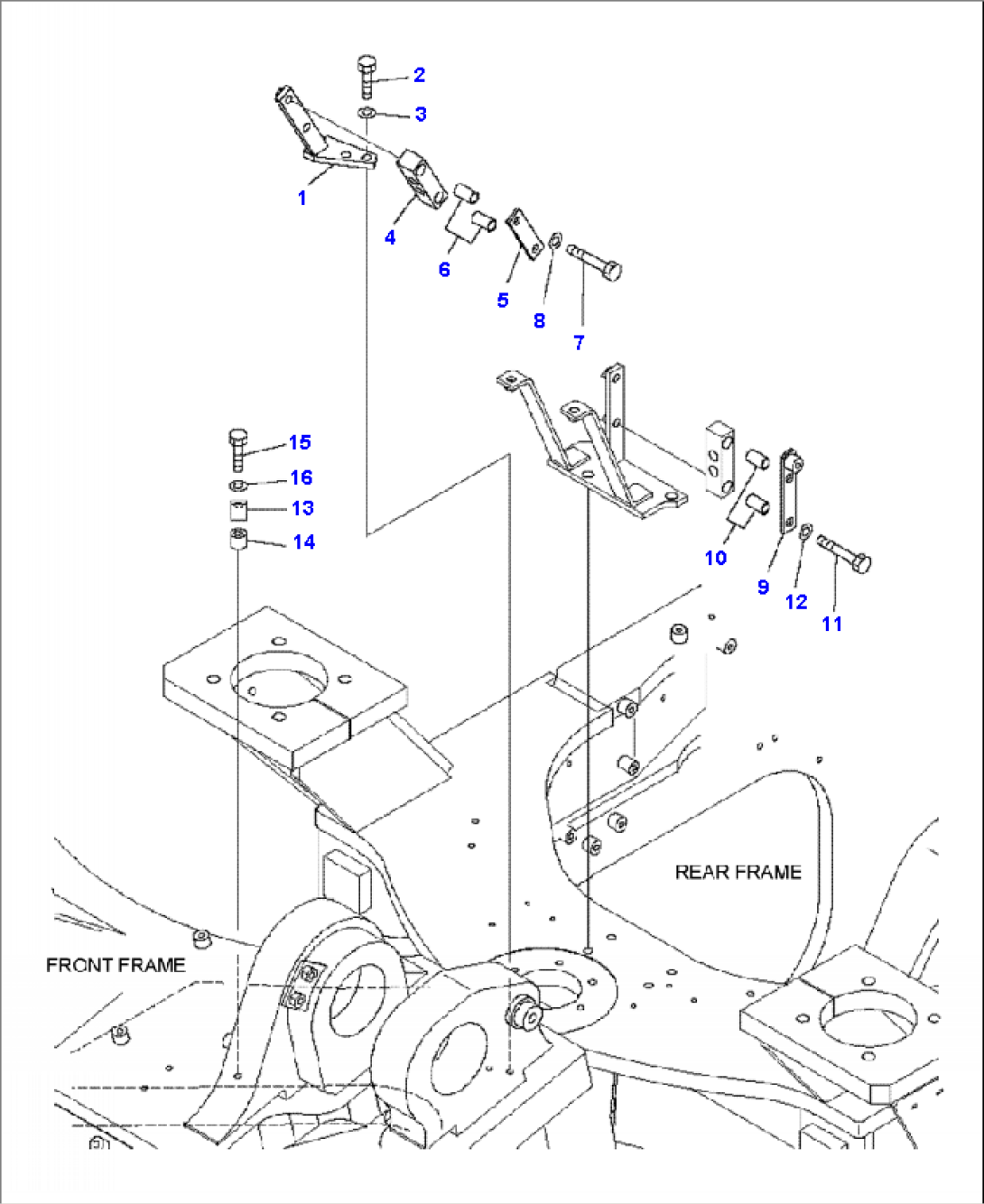

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-62-45150 | BRACKET | A47001-- | |
| 2 | 01010-81030 | BOLT | A47001-- | |
| 3 | 01643-31032 | WASHER | A47001-- | |
| 4 | 423-62-41330 | RUBBER | A47001-- | |
| 5 | 423-62-41550 | PLATE | A47001-- | |
| 6 | 419-43-17910 | SPACER | A47001-- | |
| 7 | 01010-81060 | BOLT | A47001-- | |
| 8 | 01643-31032 | WASHER | A47001-- | |
| 9 | 423-62-41560 | PLATE | A47001-- | |
| 10 | 419-43-17910 | SPACER | A47001-- | |
| 11 | 01010-81060 | BOLT | A47001-- | |
| 12 | 01643-31032 | WASHER | A47001-- | |
| 13 | 04434-51612 | CLIP | A47001-- | |
| 14 | 175-79-83760 | SPACER | A47001-- | |
| 15 | 01010-81040 | BOLT | A47001-- | |
| 16 | 01643-31032 | WASHER | A47001-- |
