| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01435-00860 | BOLT | A70001 -- | |
| 2 | 425-62-22110 | PLATE | A70001 -- | |
| 3 | 421-62-12320 | BOLT | A70001 -- | |
| 4 | 01580-11210 | NUT | A70001 -- | |
| 5 | 01435-01025 | BOLT | A70001 -- | |
| 6 | 01643-31032 | WASHER | A70001 -- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa500 3l s/n a70001 up
- Hydraulic system
- H4410 06a0 steering piping stop valve mounting and stopper bolt
Поиск по каталогу

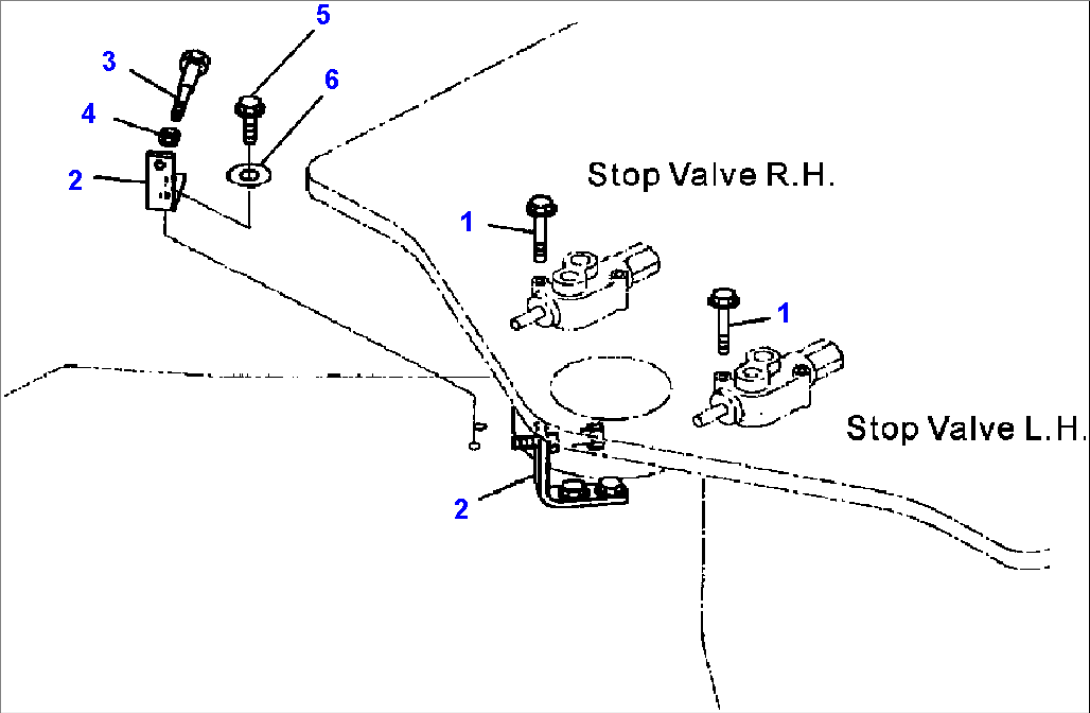

H4410-06A0 STEERING PIPING STOP VALVE MOUNTING AND STOPPER BOLT
