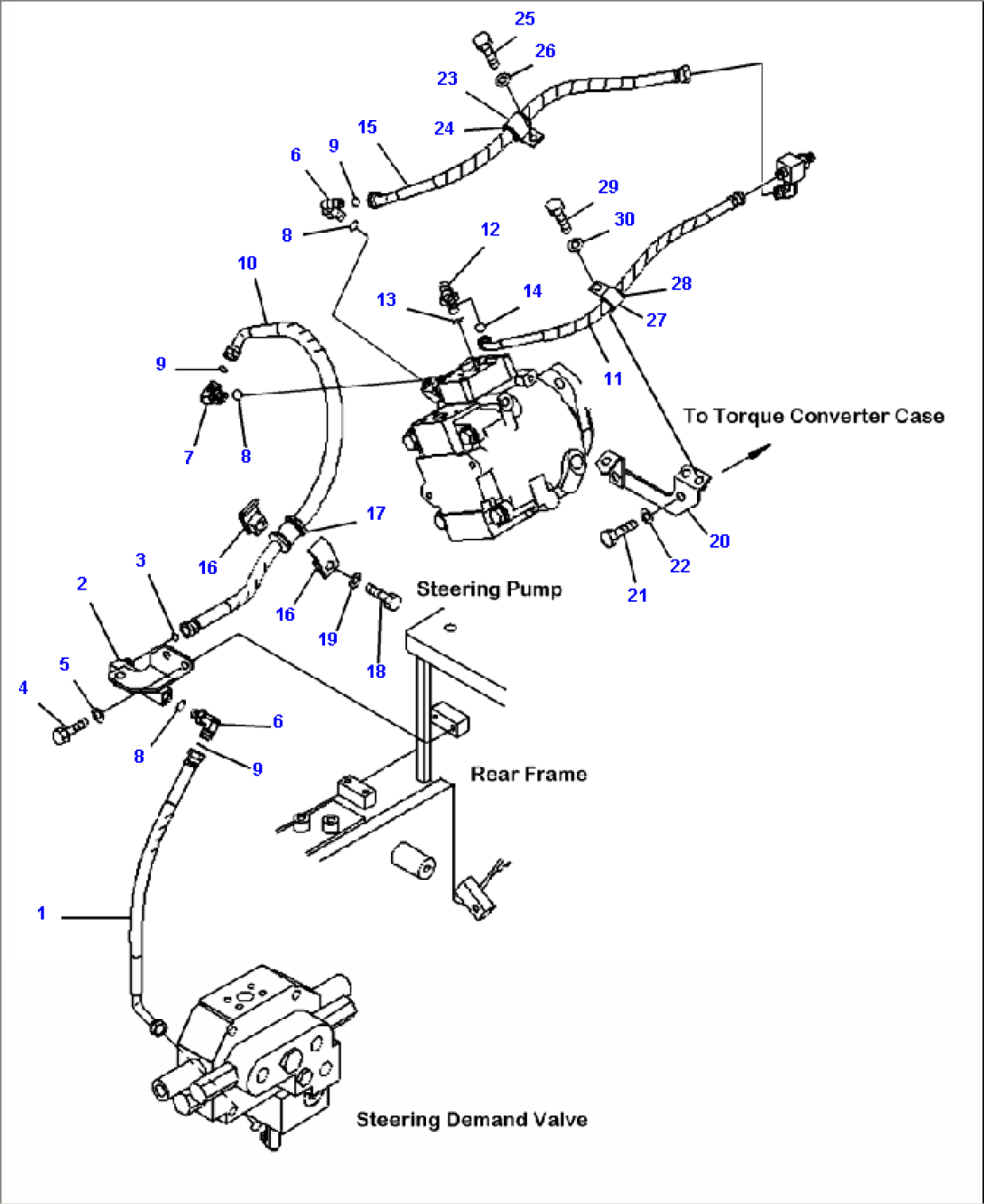

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 425-62-31330 | HOSE | A92001-- | |
| 2 | 425-62-31542 | BRACKET | A92001-- | |
| 3 | 02896-61009 | O-RING | A92001-- | |
| 4 | 01010-81020 | BOLT | A92001-- | |
| 5 | 01643-31032 | WASHER | A92001-- | |
| 6 | 02782-10311 | ELBOW | A92001-- | |
| 7 | 02781-0031D | UNION | A92001-- | |
| 8 | 07002-61423 | O-RING | A92001-- | |
| 9 | 02896-61009 | O-RING | A92001-- | |
| 10 | 425-62-31191 | HOSE | A92001-- | |
| 11 | 425-62-31180 | HOSE | A92001-- | |
| N/I | 02763-00205 | HOSE | A92001-- | |
| N/I | 08210-01203 | SPIRAL TUBE | A92001-- | |
| 12 | 02782-10311 | ELBOW | A92001-- | |
| 13 | 07002-61423 | O-RING | A92001-- | |
| 14 | 02896-61009 | O-RING | A92001-- | |
| 15 | 425-62-32282 | HOSE | A92001-- | |
| N/I | 08210-01804 | SPIRAL TUBE | A92001-- | |
| 16 | 07094-10315 | CLAMP | A92001-- | |
| 17 | 07095-00316 | CUSHION | A92001-- | |
| 18 | 01010-81260 | BOLT | A92001-- | |
| 19 | 01643-31232 | WASHER | A92001-- | |
| 20 | 425-62-31391 | BRACKET | A92001-- | |
| 21 | 01010-81245 | BOLT | A92001-- | |
| 22 | 01643-31232 | WASHER | A92001-- | |
| 23 | 04434-52310 | CLIP | A92001-- | |
| 24 | 07095-20318 | CUSHION | A92001-- | |
| 25 | 01010-81020 | BOLT | A92001-- | |
| 26 | 01643-31032 | WASHER | A92001-- | |
| 27 | 04434-51910 | CLIP | A92001-- | |
| 28 | 07095-20213 | CUSHION | A92001-- | |
| 29 | 01010-81020 | BOLT | A92001-- | |
| 30 | 01643-31032 | WASHER | A92001-- |
