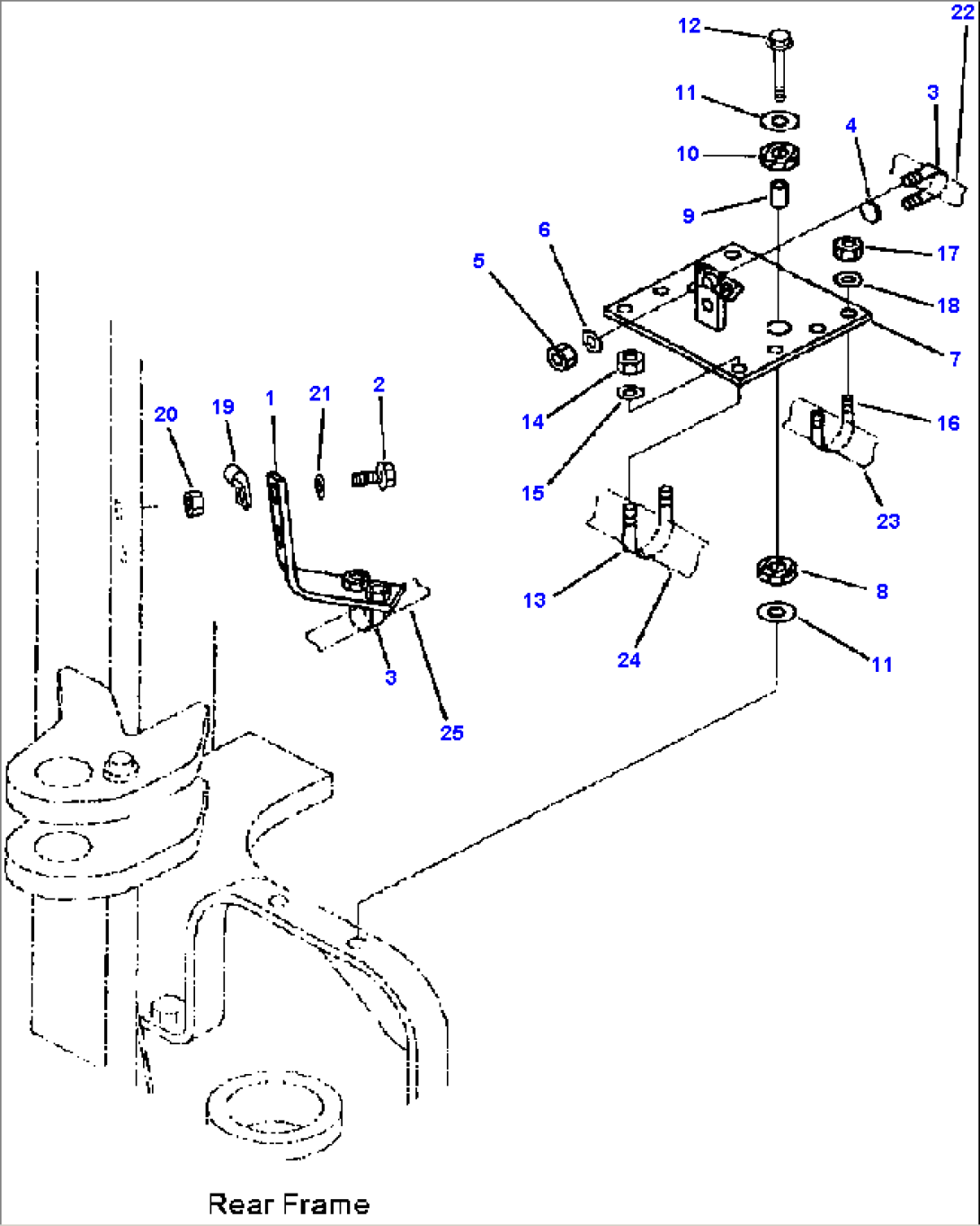

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 425-875-2132 | PLATE | A70001 -- | |
| 2 | 01435-01020 | BOLT | A70001 -- | |
| 3 | 07283-32244 | CLIP | A70001 -- | |
| 4 | 07283-52232 | SEAT | A70001 -- | |
| 5 | 01597-01009 | NUT | A70001 -- | |
| 6 | 01643-31032 | WASHER | A70001 -- | |
| 7 | 425-875-2192 | BRACKET | A70001 -- | |
| 8 | 415-64-13130 | CUSHION | A70001 -- | |
| 9 | 421-62-18560 | SPACER | A70001 -- | |
| 10 | 419-43-17930 | CUSHION | A70001 -- | |
| 11 | 415-64-13120 | WASHER | A70001 -- | |
| 12 | 01435-01050 | BOLT | A70001 -- | |
| 13 | 07283-34346 | U-BOLT | A70001 -- | |
| 14 | 01597-01009 | NUT | A70001 -- | |
| 15 | 01643-31032 | WASHER | A70001 -- | |
| 16 | 07283-33450 | U-BOLT | A70001 -- | |
| 17 | 01597-01009 | NUT | A70001 -- | |
| 18 | 01643-31032 | WASHER | A70001 -- | |
| 19 | 07283-34396 | CLIP | A70001 -- | |
| 20 | 01597-01009 | NUT | A70001 -- | |
| 21 | 01843-31032 | WASHER | A70001 -- | |
| 22 | TUBE (SEE FIG. H4410-10A1 ) | A70001 -- | ||
| 23 | TUBE (SEE FIG. H4410-13A1 ) | A70001 -- | ||
| 24 | TUBE (SEE FIG. H4410-09A1 ) | A70001 -- | ||
| 25 | TUBE (SEE FIG. H4410-10A1 ) | A70001 -- |
