| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 42N-43-14111 | BRACKET, CONTROL VALVE | A13001-- | |
| 2 | 01016-51030 | BOLT | A13001-- | |
| 3 | 01643-31032 | WASHER | A13001-- | |
| 4 | 01010-81050 | BOLT | A13001-- | |
| 5 | 21D-09-24190 | NUT | A13001-- |
- Главная
- Каталог запчастей
- Экскаваторы погрузчики
- Wb142 5 s/n a13001 up
- Hydraulic system
- H6099 01a0 loader control valve mounting
Поиск по каталогу

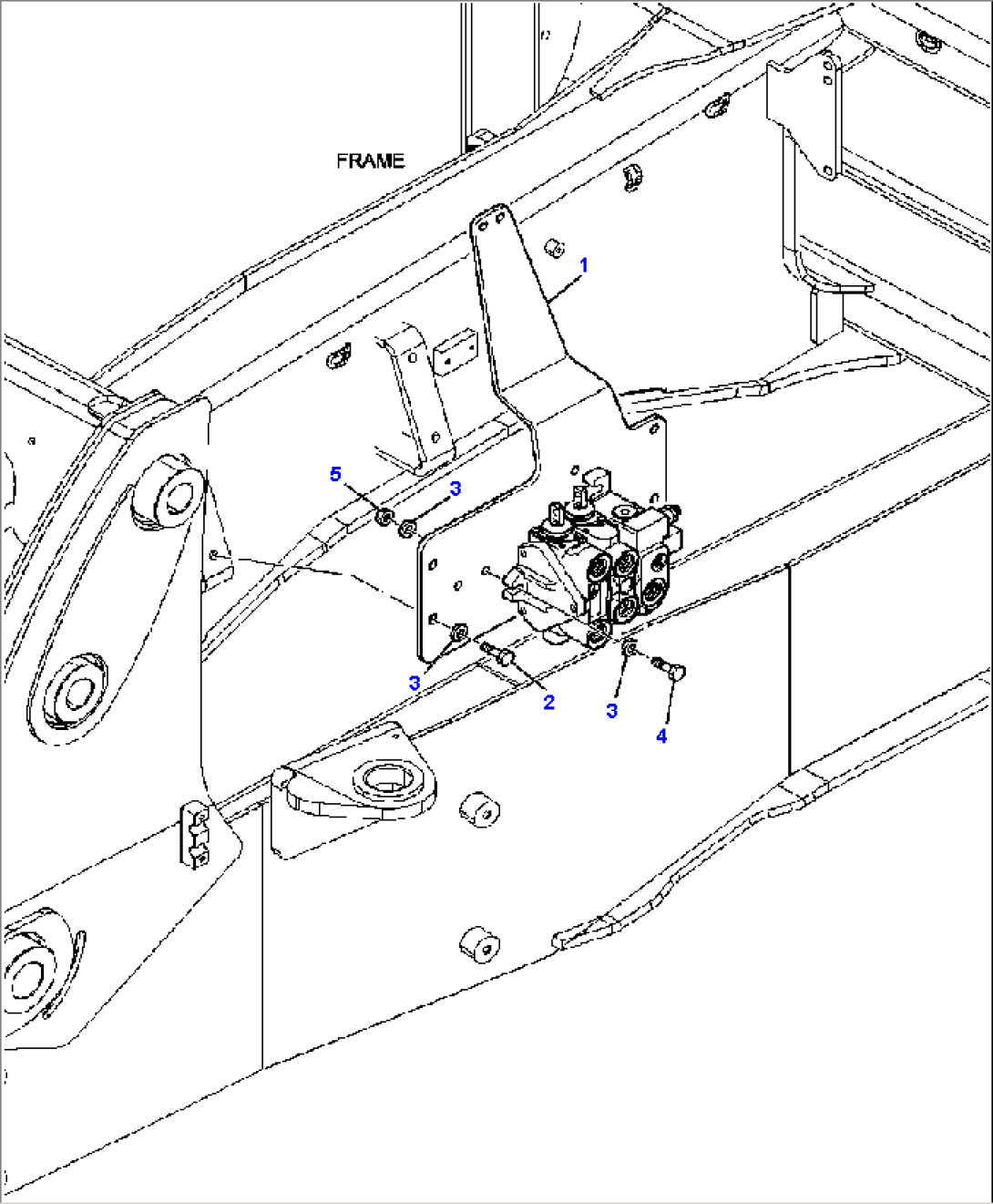

H6099-01A0 LOADER CONTROL VALVE MOUNTING
