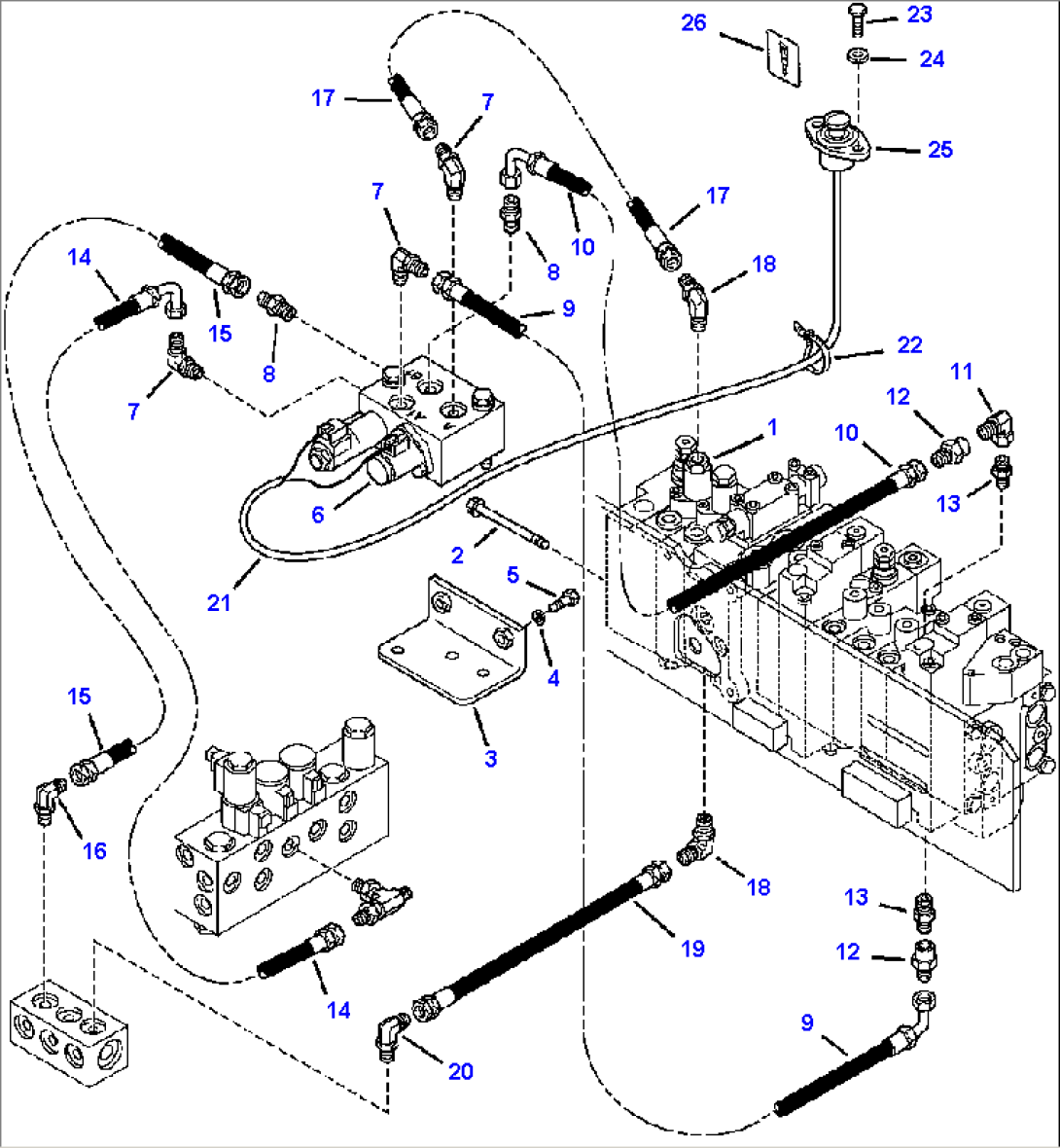

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | HAMMER VALVE (SEE FIG. H6217-01A0 ) | A43001-- | ||
| 2 | 01011-81040 | BOLT | A43001-- | |
| 3 | 42N-43-14350 | BRACKET | A43001-- | |
| 4 | 01643-30823 | WASHER | A43001-- | |
| 5 | 01016-50825 | BOLT | A43001-- | |
| 6 | SOLENOID VALVE (SEE FIG. H6250-01A0 ) | A43001-- | ||
| 7 | 21D-09-51600 | ELBOW | A43001-- | |
| N/I | 2938-62-2140 | WASHER | A43001-- | |
| N/I | 2938-62-2150 | O-RING | A43001-- | |
| 8 | 21D-09-51160 | CONNECTOR | A43001-- | |
| N/I | 2938-62-2140 | WASHER | A43001-- | |
| N/I | 2938-62-2150 | O-RING | A43001-- | |
| 9 | 42N-62-15110 | HOSE | A43001-- | |
| 10 | 42N-62-17350 | HOSE | A43001-- | |
| 11 | 21D-09-55610 | ELBOW | A43001-- | |
| 12 | 37D-09-2U154 | CONNECTOR | A43001-- | |
| N/I | 2938-62-2230 | O-RING | A43001-- | |
| N/I | 2938-62-2240 | O-RING | A43001-- | |
| 13 | 42N-62-15960 | VALVE, RESTRICTOR | A43001-- | |
| 14 | 42N-62-17340 | HOSE | A43001-- | |
| 15 | 42N-62-17350 | HOSE | A43001-- | |
| 16 | 21D-09-51160 | CONNECTOR | A43001-- | |
| N/I | 2938-62-2140 | WASHER | A43001-- | |
| N/I | 2938-62-2150 | O-RING | A43001-- | |
| 17 | 42N-62-17360 | HOSE | A43001-- | |
| 18 | 22E-09-11310 | ELBOW | A43001-- | |
| 19 | 42N-62-17371 | HOSE | A43001-- | |
| 20 | 21D-09-51600 | ELBOW | A43001-- | |
| N/I | 2938-62-2140 | WASHER | A43001-- | |
| N/I | 2938-62-2150 | O-RING | A43001-- | |
| 21 | 42N-06-11340 | HARNESS, WIRING | A43001-- | |
| 22 | 08034-20519 | TIE STRAP | A43001-- | |
| 23 | 01010-80620 | BOLT | A43001-- | |
| 24 | 01643-30623 | WASHER | A43001-- | |
| 25 | 42N-06-15750 | SWITCH, HAMMER FOOT | A43001-- | |
| 26 | 42N-93-12640 | HAMMER DECAL | A43001-- |
