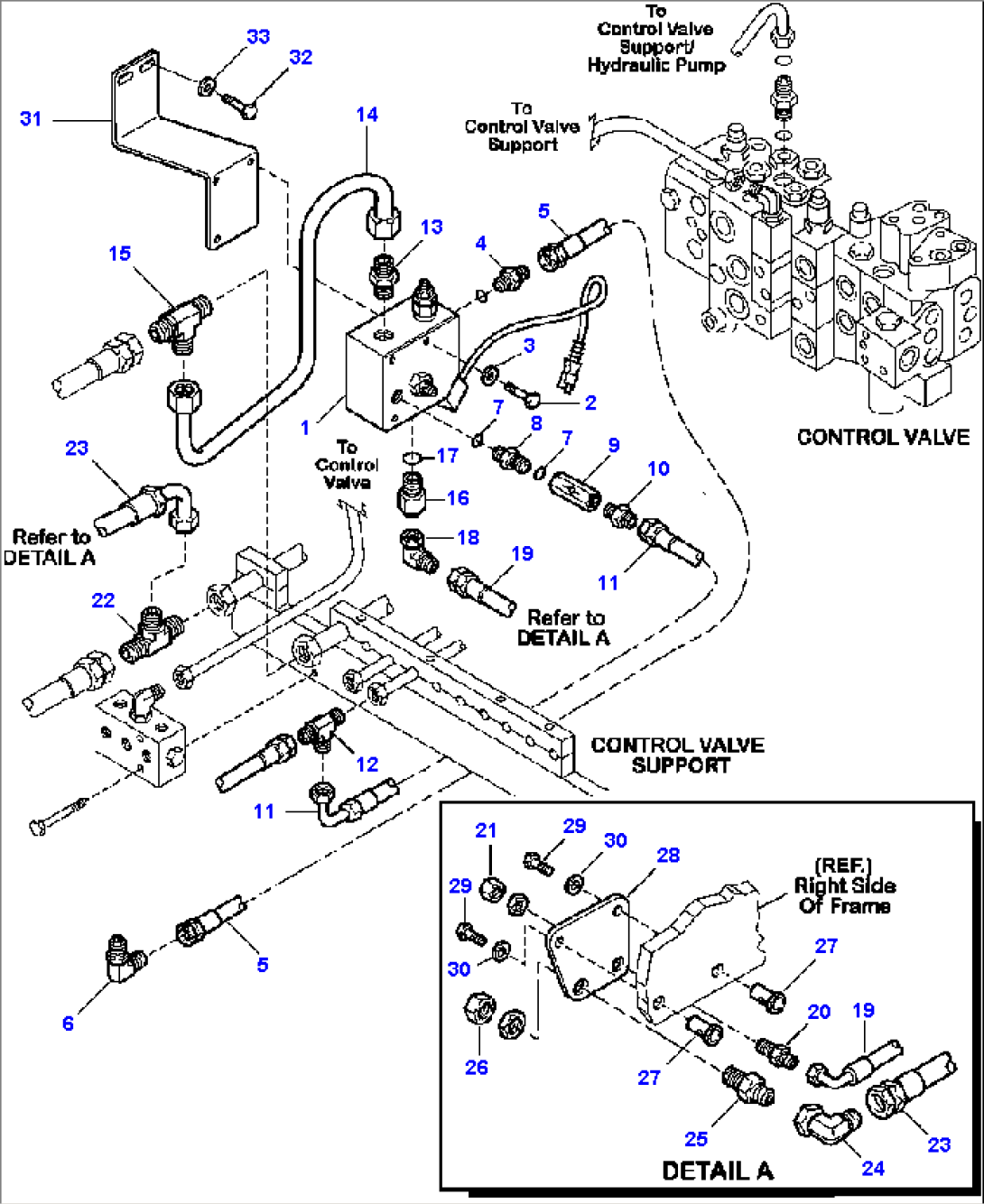

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VALVE, HAMMER (SEE FIG. H6970-01A1) | A73001-- | ||
| 2 | 01010-80865 | BOLT | A73001-- | |
| 3 | 01643-10823 | WASHER | A73001-- | |
| 4 | 21D-09-51160 | CONNECTOR | A73001-- | |
| N/I | 2938-62-2140 | WASHER | A73001-- | |
| N/I | 2938-62-2150 | O-RING | A73001-- | |
| 5 | 42N-62-17680 | HOSE | A73001-- | |
| 6 | 21D-09-51600 | ELBOW | A73001-- | |
| N/I | 2938-62-2140 | WASHER | A73001-- | |
| N/I | 2938-62-2150 | O-RING | A73001-- | |
| 7 | 22L-62-24660 | SEAL | A73001-- | |
| 8 | 21D-09-61270 | ELBOW | A73001-- | |
| 9 | 42N-64-11350 | VALVE, CHECK | A73001-- | |
| 10 | 37D-09-66103 | CONNECTOR | A73001-- | |
| 11 | 42N-62-17690 | HOSE | A73001-- | |
| 12 | 37D-09-7R871 | TEE | A73001-- | |
| 13 | 226-09-12650 | CONNECTOR | A73001-- | |
| 14 | 42N-62-17190 | TUBE | A73001-- | |
| 15 | 226-09-12260 | TEE | A73001-- | |
| 16 | 37D-09-8Y004 | UNION | A73001-- | |
| 17 | 21D-09-86260 | SEAL, BONDED | A73001-- | |
| 18 | 37D-09-6Z505 | ELBOW | A73001-- | |
| 19 | 42N-62-17570 | HOSE | A73001-- | |
| 20 | 37D-09-6K321 | CONNECTOR | A73001-- | |
| OR | ||||
| 20 | 42N-879-1970 | CONNECTOR | A73001-- | |
| N/I | 02896-11009 | O-RING | A73001-- | |
| N/I | 02896-11018 | O-RING | A73001-- | |
| 21 | 02789-10315 | PLUG, FEMALE | A73001-- | |
| OR | ||||
| 21 | 02789-10628 | PLUG, FEMALE | A73001-- | |
| 22 | 226-09-12280 | TEE | A73001-- | |
| 23 | 42N-62-17580 | HOSE | A73001-- | |
| 24 | 226-09-12110 | ELBOW | A73001-- | |
| N/I | 02896-11018 | O-RING | A73001-- | |
| 25 | 226-09-12490 | CONNECTOR | A73001-- | |
| N/I | 02896-11018 | O-RING | A73001-- | |
| 26 | 02789-10628 | PLUG, FEMALE | A73001-- | |
| 27 | 42N-46-11320 | INSERT | A73001-- | |
| 28 | 42N-43-13710 | PLATE | A73001-- | |
| 29 | 01016-51040 | BOLT | A73001-- | |
| 30 | 01643-11032 | WASHER | A73001-- | |
| 31 | 42N-43-14340 | SUPPORT, MOUNT SOLENOID VALVE | A73001-- | |
| 32 | 01016-50830 | BOLT | A73001-- | |
| 33 | 01643-10823 | WASHER | A73001-- | |
| N/I | 37D-09-6X461 | ELBOW | A73001-- | |
| F2 - USED WITH HAND HAMMER MODEL BR45. | ||||
| F2 - USED WITH HAND HAMMER MODEL BR45. |
