| Item | Part No. | Part Name | Qty | Serial No. |

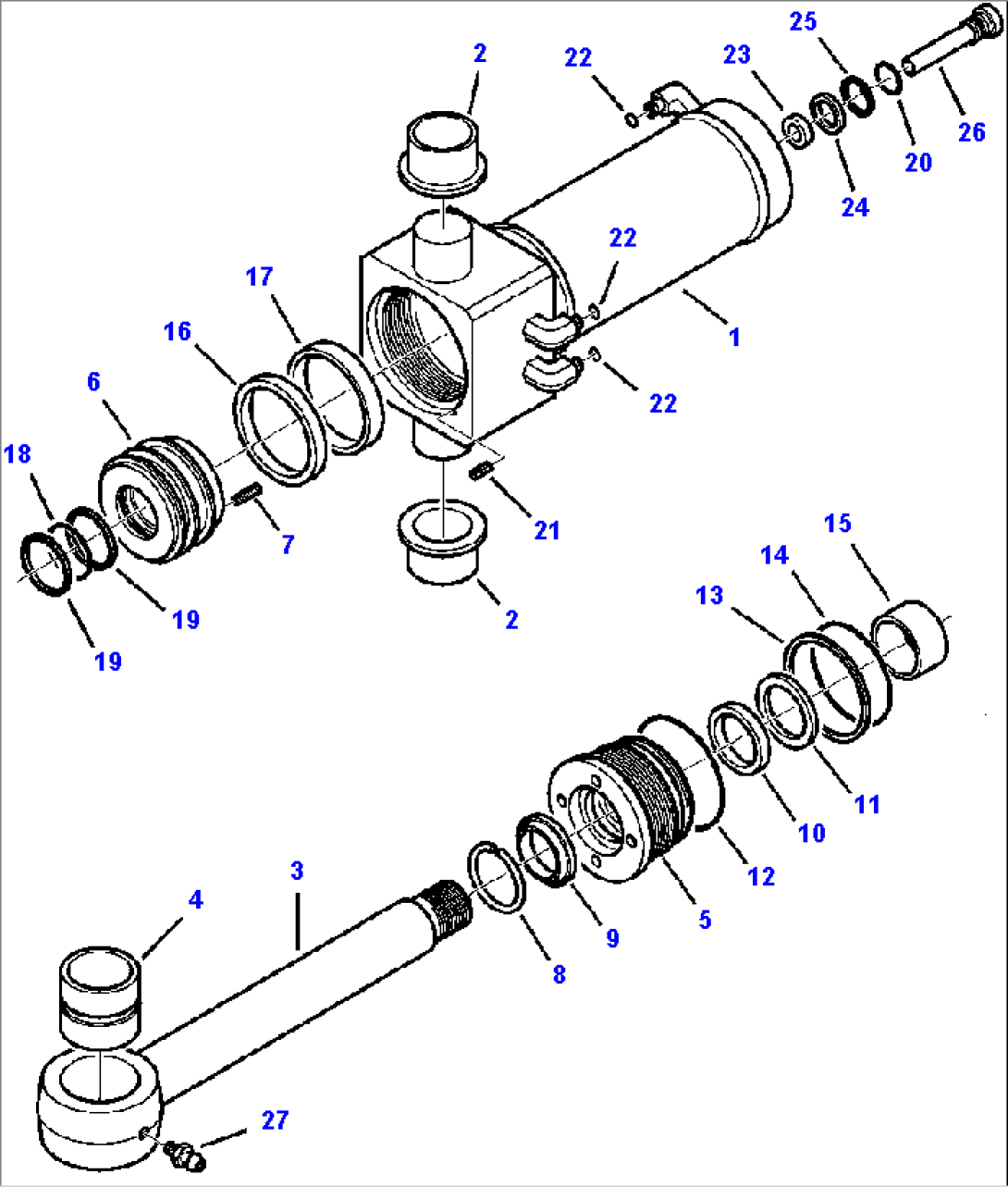

| 707-02-07731 | SWING CYLINDER | A73001-- | ||
| 1 | 707-12-10230 | BARREL | A73001-- | |
| 2 | 707-76-50930 | BUSHING | A73001-- | |
| 3 | 707-58-50H70 | ROD | A73001-- | |
| 4 | 707-76-55570 | BUSHING | A73001-- | |
| 5 | 707-29-10700 | HEAD | A73001-- | |
| 6 | 707-36-10780 | PISTON | A73001-- | |
| 7 | 01310-00820 | SCREW, SET | A73001-- | |
| 707-99-32070 | SERVICE KIT, SEAL | A73001-- | ||
| 8 | (NSS) | RING, RETAINER | A73001-- | |
| 9 | (NSS) | WIPER, ROD | A73001-- | |
| 10 | (NSS) | SEAL, ROD | A73001-- | |
| 11 | (NSS) | RING, BUFFER | A73001-- | |
| 12 | (NSS) | O-RING | A73001-- | |
| 13 | (NSS) | RING, BACK UP | A73001-- | |
| 14 | (NSS) | O-RING | A73001-- | |
| 15 | (NSS) | RING, BUFFER | A73001-- | |
| 16 | (NSS) | SEAL, PISTON | A73001-- | |
| 17 | (NSS) | RING, WEAR | A73001-- | |
| 18 | (NSS) | O-RING | A73001-- | |
| 19 | (NSS) | RING, SEAL | A73001-- | |
| 20 | (NSS) | O-RING | A73001-- | |
| 21 | 01310-00812 | SCREW, SET | A73001-- | |
| 22 | 02896-11009 | O-RING | A73001-- | |
| 23 | 42N-6C-12420 | WASHER, THRUST | A73001-- | |
| 24 | 707-81-30080 | WASHER, THRUST | A73001-- | |
| 25 | 707-73-03010 | SNAP RING | A73001-- | |
| 26 | 707-71-50200 | CYLINDER | A73001-- | |
| 27 | 21D-09-89140 | FITTING, GREASE | A73001-- |
