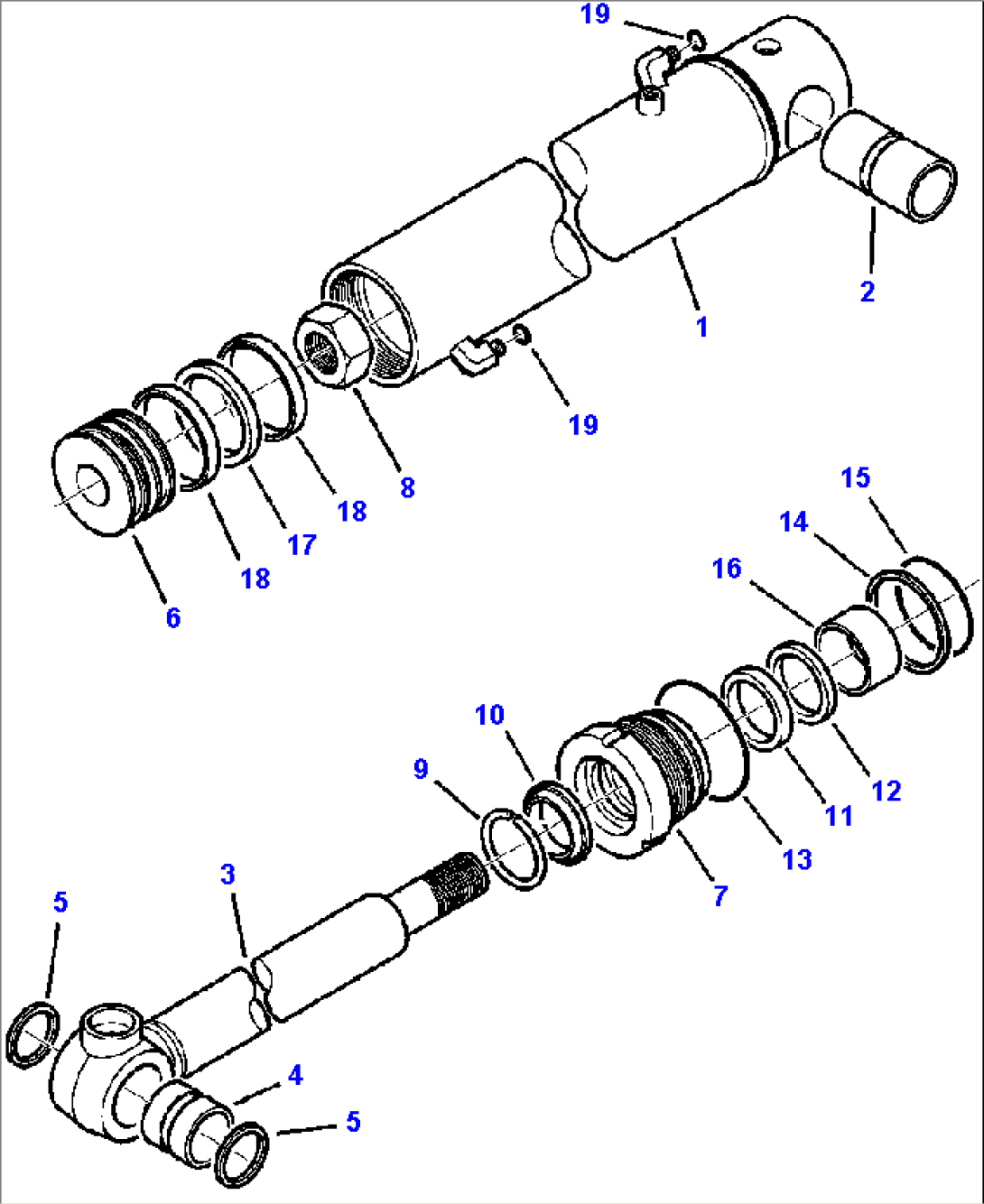

| Item | Part No. | Part Name | Qty | Serial No. |
| 707-00-0Y902 | BUCKET CYLINDER | A73001-- | ||
| 1 | 721-11-90681 | BARREL | A73001-- | |
| 2 | 707-76-45660 | BUSHING | A73001-- | |
| 3 | 721-58-55480 | ROD | A73001-- | |
| 4 | 707-76-45330 | BUSHING | A73001-- | |
| 5 | 07145-00045 | WIPER, PIN | A73001-- | |
| 6 | 707-29-90802 | HEAD | A73001-- | |
| 7 | 707-36-90570 | PISTON | A73001-- | |
| 8 | 707-67-36010 | NUT, PISTON | A73001-- | |
| 707-99-26530 | KIT, SEAL | A73001-- | ||
| 9 | (NSS) | RING, RETAINER | A73001-- | |
| 10 | (NSS) | WIPER, ROD | A73001-- | |
| 11 | (NSS) | SEAL, ROD | A73001-- | |
| 12 | (NSS) | RING, BUFFER | A73001-- | |
| 13 | (NSS) | O-RING | A73001-- | |
| 14 | (NSS) | RING, BACK UP | A73001-- | |
| 15 | (NSS) | O-RING | A73001-- | |
| 16 | (NSS) | RING, BUFFER | A73001-- | |
| 17 | (NSS) | SEAL, PISTON | A73001-- | |
| 18 | (NSS) | RING, WEAR | A73001-- | |
| 19 | (NSS) | O-RING | A73001-- | |
| N/I | 21D-09-89140 | FITTING, GREASE | A73001-- |
