| Item | Part No. | Part Name | Qty | Serial No. |

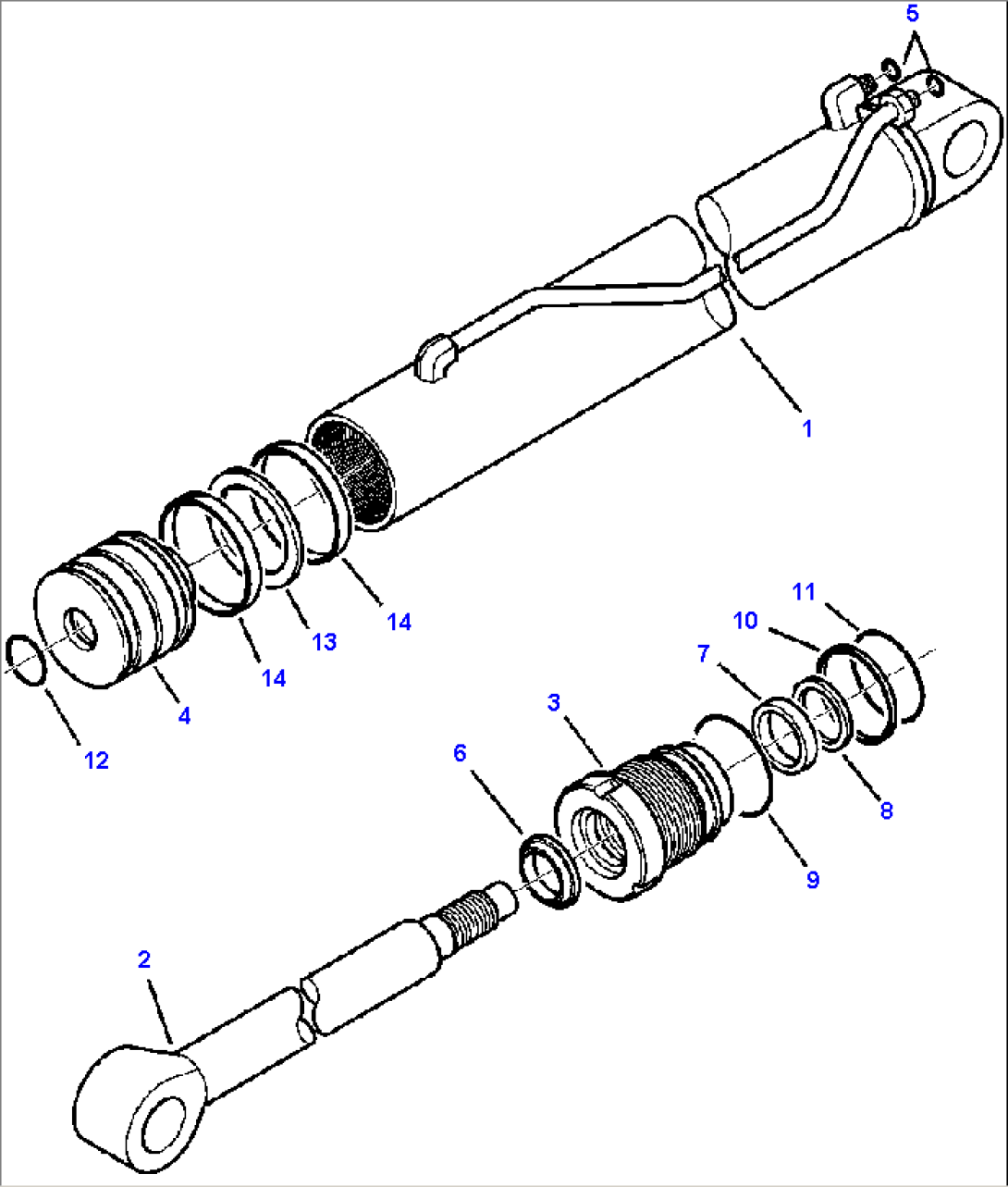

| 42N-6C-13401 | JIG ARM CYLINDER | A73001-- | ||
| 1 | 42N-6C-13411 | BARREL | A73001-- | |
| 2 | 42N-6C-12920 | ROD | A73001-- | |
| 3 | 42N-6C-12530 | HEAD | A73001-- | |
| 4 | 42N-6C-12540 | PISTON | A73001-- | |
| 5 | 02896-11015 | O-RING | A73001-- | |
| 42N-6C-13330 | SERVICE KIT, SEAL | A73001-- | ||
| 6 | (NSS) | WIPER, ROD | A73001-- | |
| 7 | (NSS) | SEAL, ROD | A73001-- | |
| 8 | (NSS) | RING, BUFFER | A73001-- | |
| 9 | (NSS) | O-RING | A73001-- | |
| 10 | (NSS) | RING, BACK UP | A73001-- | |
| 11 | (NSS) | O-RING | A73001-- | |
| 12 | (NSS) | O-RING | A73001-- | |
| 13 | (NSS) | SEAL, PISTON | A73001-- | |
| 14 | (NSS) | RING, WEAR | A73001-- |
