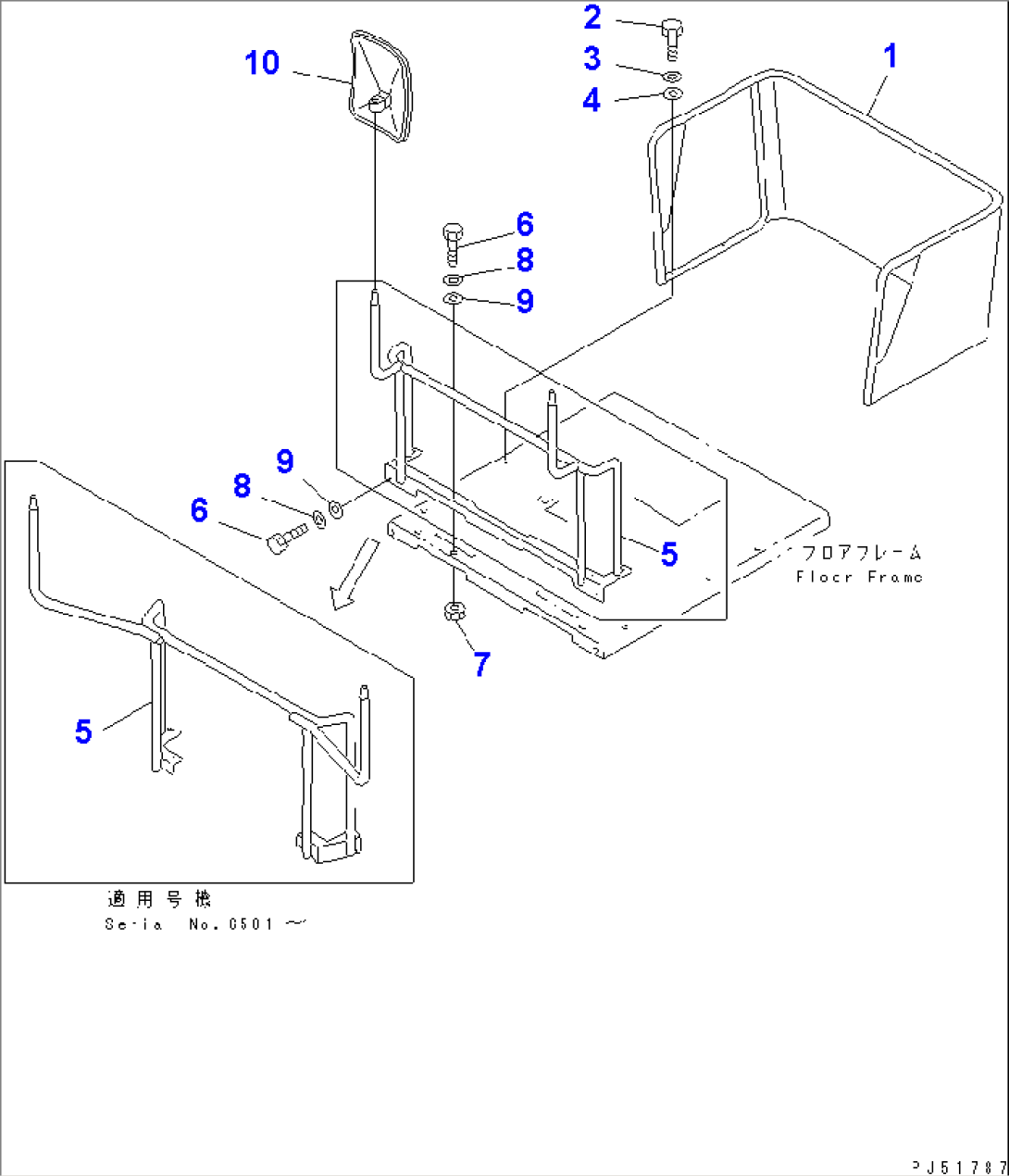

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 23B-54-11310 | GUARD | 1001-@ | |
| 2 | 01010-51260 | BOLT | 1001-3400 | |
| 3 | 01602-21236 | WASHER,SPRING | 1001-3400 | |
| 4 | 01643-31232 | WASHER | 1001-@ | |
| 5 | 23D-54-13140 | BRACKET | 2001-3400 | |
| 23E-54-12250 | BRACKET | 1001-1999 | ||
| 6 | 01010-51230 | BOLT | 2001-@ | |
| 01010-51225 | BOLT | 1001-1999 | ||
| 7 | 01580-11210 | NUT | 2001-3400 | |
| 01580-11210 | NUT | 1001-1999 | ||
| 8 | 01602-21236 | WASHER,SPRING | 1001-1999 | |
| 9 | 01643-31232 | WASHER | 1001-@ | |
| 10 | 08174-33023 | MIRROR | 1001-@ |
