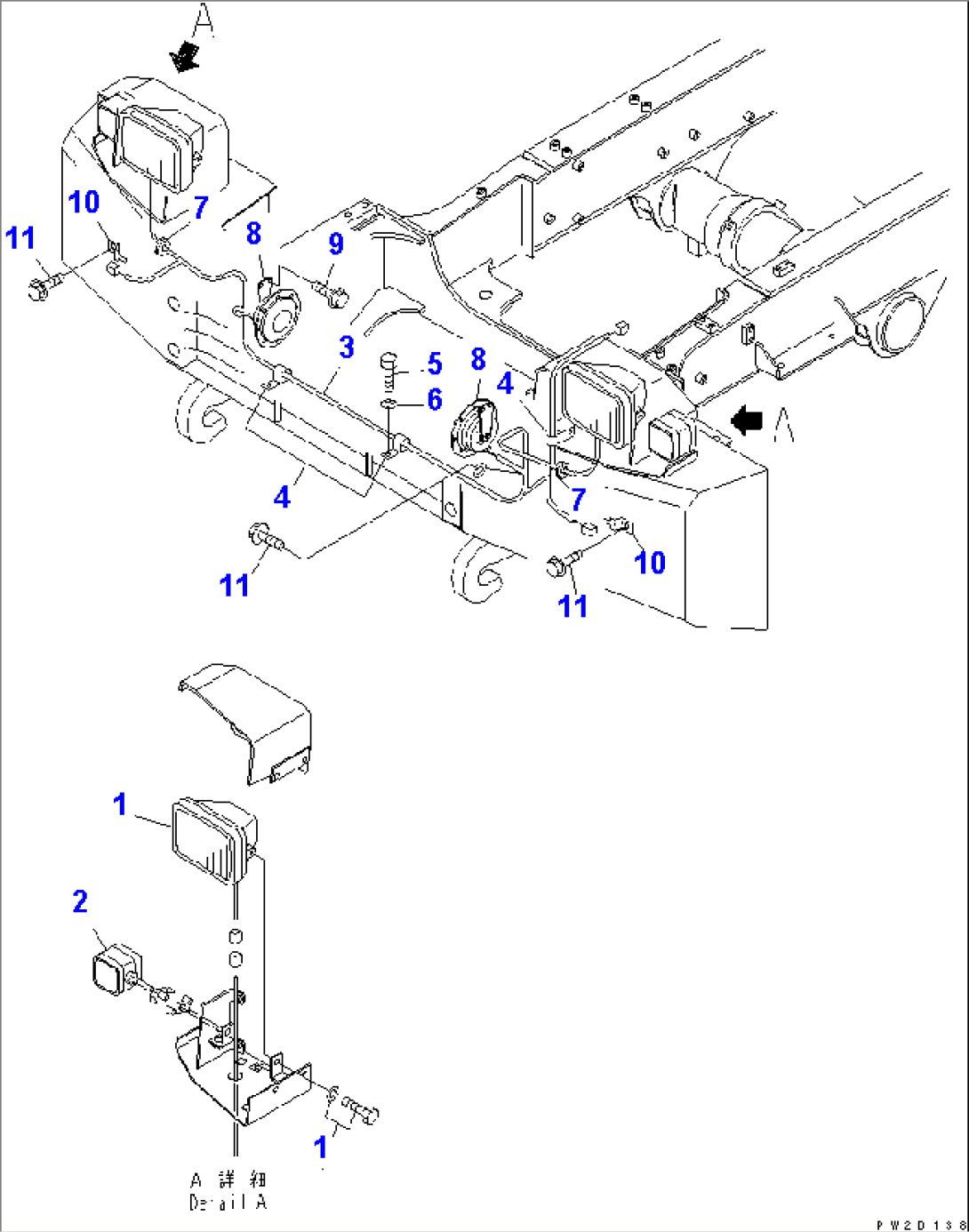

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 424-06-23210 | HEAD LAMP ASS'Y | 1001- | |
| 08056-00371 | CONNECTOR | 1001- | ||
| 424-06-23220 | LENS | 1001- | ||
| 424-06-23230 | BULB¤ 75/70W | 1001- | ||
| 2 | 41G-06-13201 | LAMP ASS'Y,COMBINATION | 1001- | |
| 41G-06-13210 | LENS,FRONT | 1001- | ||
| 41G-06-13220 | LENS | 1001- | ||
| 41G-06-13230 | BULB¤ 5W | 1001- | ||
| 08105-12420 | BULB¤ 25W | 1001- | ||
| 01220-40425 | SCREW | 1001- | ||
| 08021-00400 | CONNECTOR | 1001- | ||
| 08022-04001 | CONNECTOR | 1001- | ||
| 3 | 56D-06-14412 | WIRING HARNESS | 1001- | |
| 4 | 08036-02514 | CLIP | 1001- | |
| 5 | 01010-81016 | BOLT | 1001- | |
| 6 | 01643-31032 | WASHER | 1001- | |
| 7 | 207-54-16860 | GROMMET | 1001- | |
| 8 | 427-06-21210 | HORN ASS'Y | 1001- | |
| 9 | 01435-01016 | BOLT | 1001- | |
| 10 | 08053-01510 | CLIP | 1001- | |
| 11 | 01435-01016 | BOLT | 1001- |
