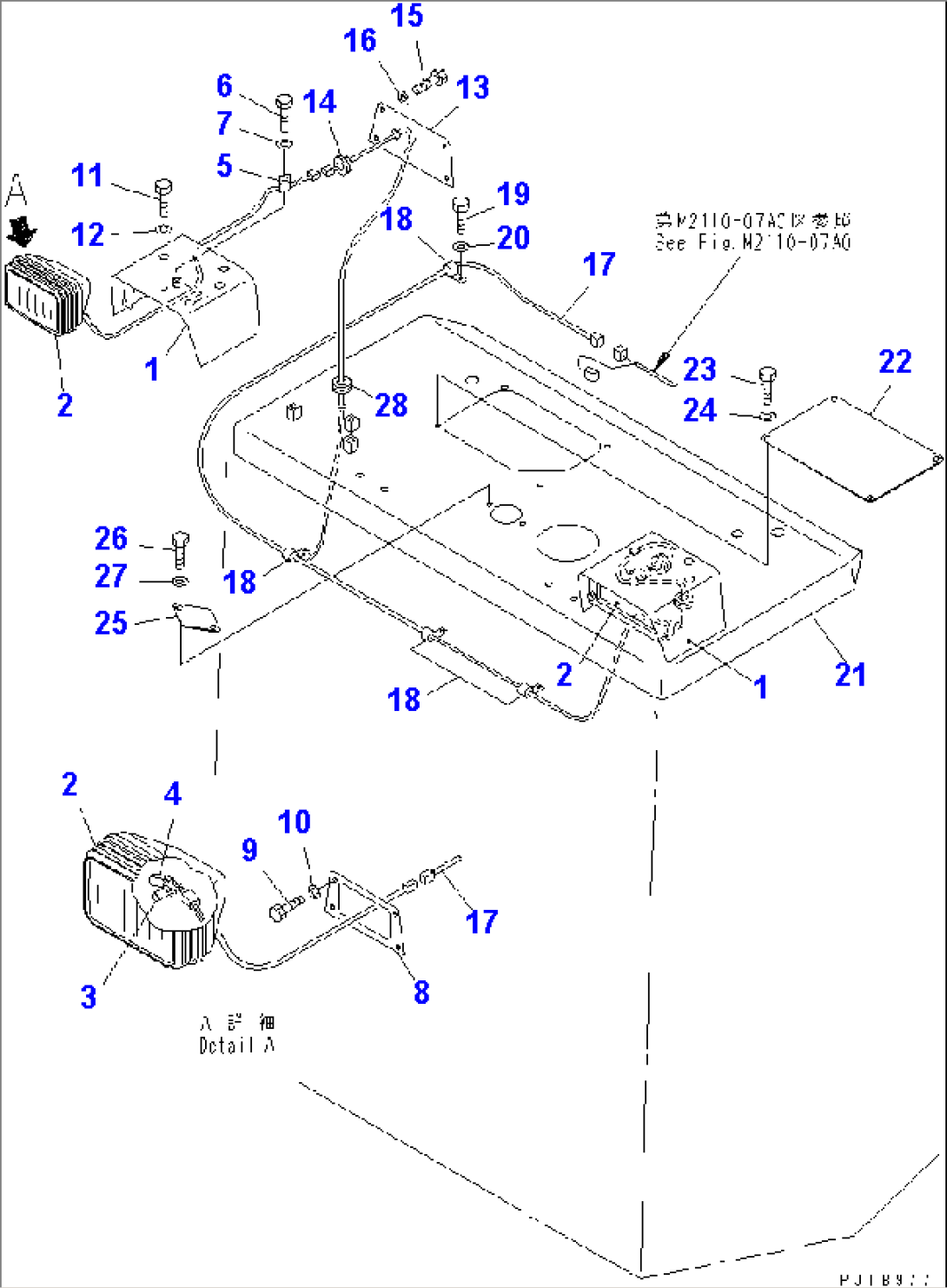

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 195-54-66141 | COVER | 17001- | |
| 2 | 17A-06-17921 | WORKING LAMP ASS'Y | .- | |
| 2 | \0\17A-06-17920 | WORKING LAMP ASS'Y | 17001-. | |
| 3 | 17A-06-17970 | BULB, 70W | 17001- | |
| 4 | 17A-06-17980 | SLEEVE | 17001- | |
| 5 | 21T-38-12270 | CLIP | 17001- | |
| 6 | 01010-81220 | BOLT | 17001- | |
| 7 | 01643-31232 | WASHER | 17001- | |
| 8 | 195-54-65510 | PLATE | 17001- | |
| 9 | 195-54-43260 | BOLT | 17001- | |
| 10 | 01643-70823 | WASHER | 17001- | |
| 11 | 01010-81230 | BOLT | 17001- | |
| 12 | 01643-31232 | WASHER | 17001- | |
| 13 | 195-54-51171 | PLATE | 17001- | |
| 14 | 201-54-13210 | GROMMET | 17001- | |
| 15 | 01010-80825 | BOLT | 17001- | |
| 16 | 01643-30823 | WASHER | 17001- | |
| 17 | 195-06-46471 | WIRING HARNESS | 17001- | |
| 17 | 195-06-47110 | WIRING HARNESS,(AUSTRALIA SPEC.) | 17001- | |
| 18 | 08036-01014 | CLIP | 17001- | |
| 18 | 08036-01414 | CLIP,(AUSTRALIA SPEC.) | 17001- | |
| 19 | 01010-81220 | BOLT | 17001- | |
| 19 | 01010-81220 | BOLT,(AUSTRALIA SPEC.) | 17001- | |
| 20 | 01643-31232 | WASHER | 17001- | |
| 20 | 01643-31232 | WASHER,(AUSTRALIA SPEC.) | 17001- | |
| 21 | 195-54-65311 | COVER | 17001- | |
| 22 | 195-54-65340 | COVER | 17001- | |
| 23 | 01010-81220 | BOLT | 17001- | |
| 24 | 01643-31232 | WASHER | 17001- | |
| 25 | 195-54-41190 | COVER | 17001- | |
| 26 | 01010-81225 | BOLT | 17001- | |
| 27 | 01643-31232 | WASHER | 17001- | |
| 28 | 135-06-34260 | GROMMET | 17001- |
