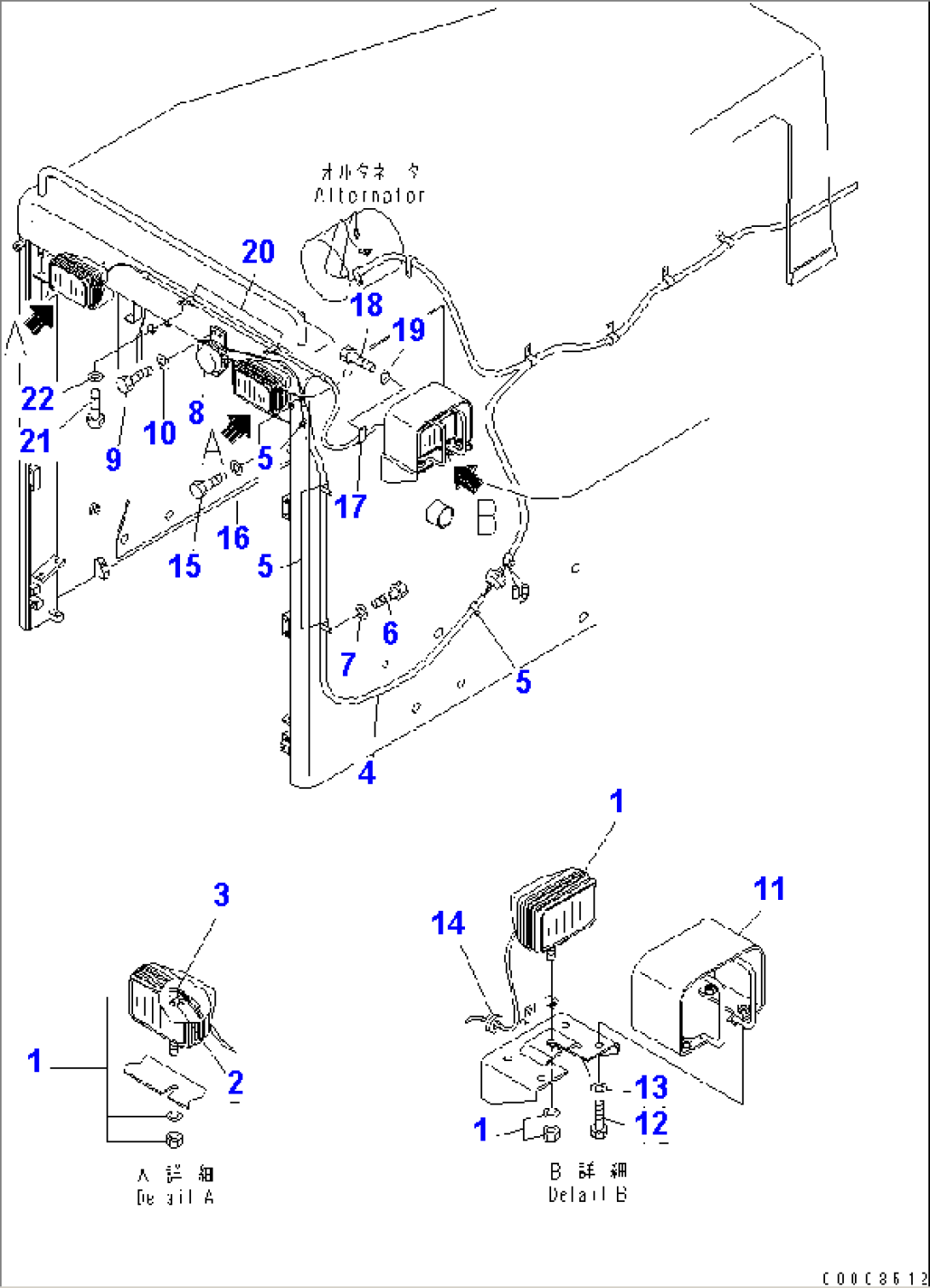

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17A-06-17931 | LAMP ASS'Y | 14672- | |
| 1 | \0\17A-06-17930 | LAMP ASS'Y | 14499-14672 | |
| 2 | 17A-06-17970 | BULB, 70W | 14499- | |
| 3 | 17A-06-17980 | SLEEVE | 14499- | |
| 4 | 196-06-31310 | WIRING HARNESS | 14499- | |
| 5 | 04434-51512 | CLIP | 14413- | |
| 6 | 01010-81016 | BOLT | 14413- | |
| 7 | 01643-31032 | WASHER | 14413- | |
| 8 | 175-06-39170 | HORN | 14413- | |
| 9 | 01010-80820 | BOLT | 14413- | |
| 10 | 01643-30823 | WASHER | 14413- | |
| 11 | 196-54-36970 | COVER | 14499- | |
| 12 | 01010-81230 | BOLT | 14413- | |
| 13 | 01643-31232 | WASHER | 14413- | |
| 14 | 112-06-12150 | GROMMET | 14499- | |
| 15 | 01010-80812 | BOLT | 14499- | |
| 16 | 01643-30823 | WASHER | 14499- | |
| 17 | 04434-51012 | CLIP | 14499- | |
| 18 | 01010-81016 | BOLT | 14499- | |
| 19 | 01643-31032 | WASHER | 14499- | |
| 20 | 04434-51012 | CLIP | 14499- | |
| 21 | 01010-81016 | BOLT | 14499- | |
| 22 | 01643-31032 | WASHER | 14499- |
