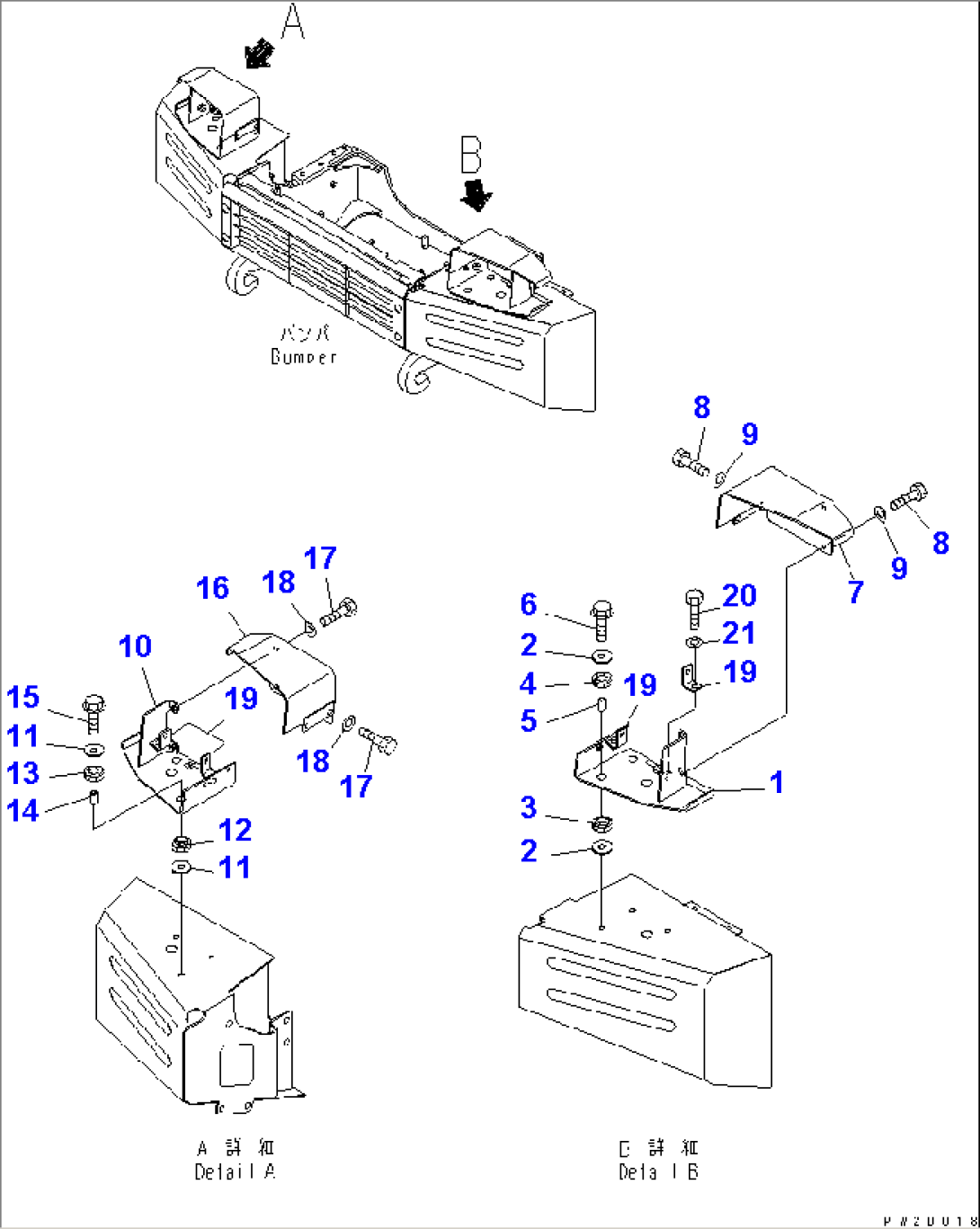

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56C-46-11831 | BRACKET,L.H. | 1001-1172 | |
| 2 | 419-43-17920 | WASHER | 1001- | |
| 3 | 419-43-17930 | CUSHION | 1001- | |
| 4 | 415-64-13130 | CUSHION | 1001- | |
| 5 | 417-54-13470 | SPACER | 1001- | |
| 6 | 01435-01250 | BOLT | 1001- | |
| 7 | 56C-46-11851 | COVER,L.H. | 1001- | |
| 8 | 01010-81020 | BOLT | 1001- | |
| 9 | 01643-31032 | WASHER | 1001- | |
| 10 | 56C-46-11841 | BRACKET,R.H. | 1001-1172 | |
| 11 | 419-43-17920 | WASHER | 1001- | |
| 12 | 419-43-17930 | CUSHION | 1001- | |
| 13 | 415-64-13130 | CUSHION | 1001- | |
| 14 | 417-54-13470 | SPACER | 1001- | |
| 15 | 01435-01250 | BOLT | 1001- | |
| 16 | 56C-46-11861 | COVER,R.H. | 1001- | |
| 17 | 01010-81020 | BOLT | 1001- | |
| 18 | 01643-31032 | WASHER | 1001- | |
| 19 | 56C-46-11890 | PLATE | 1001-1172 | |
| 20 | 01010-80820 | BOLT | 1001-1172 | |
| 21 | 01643-30823 | WASHER | 1001-1172 |
