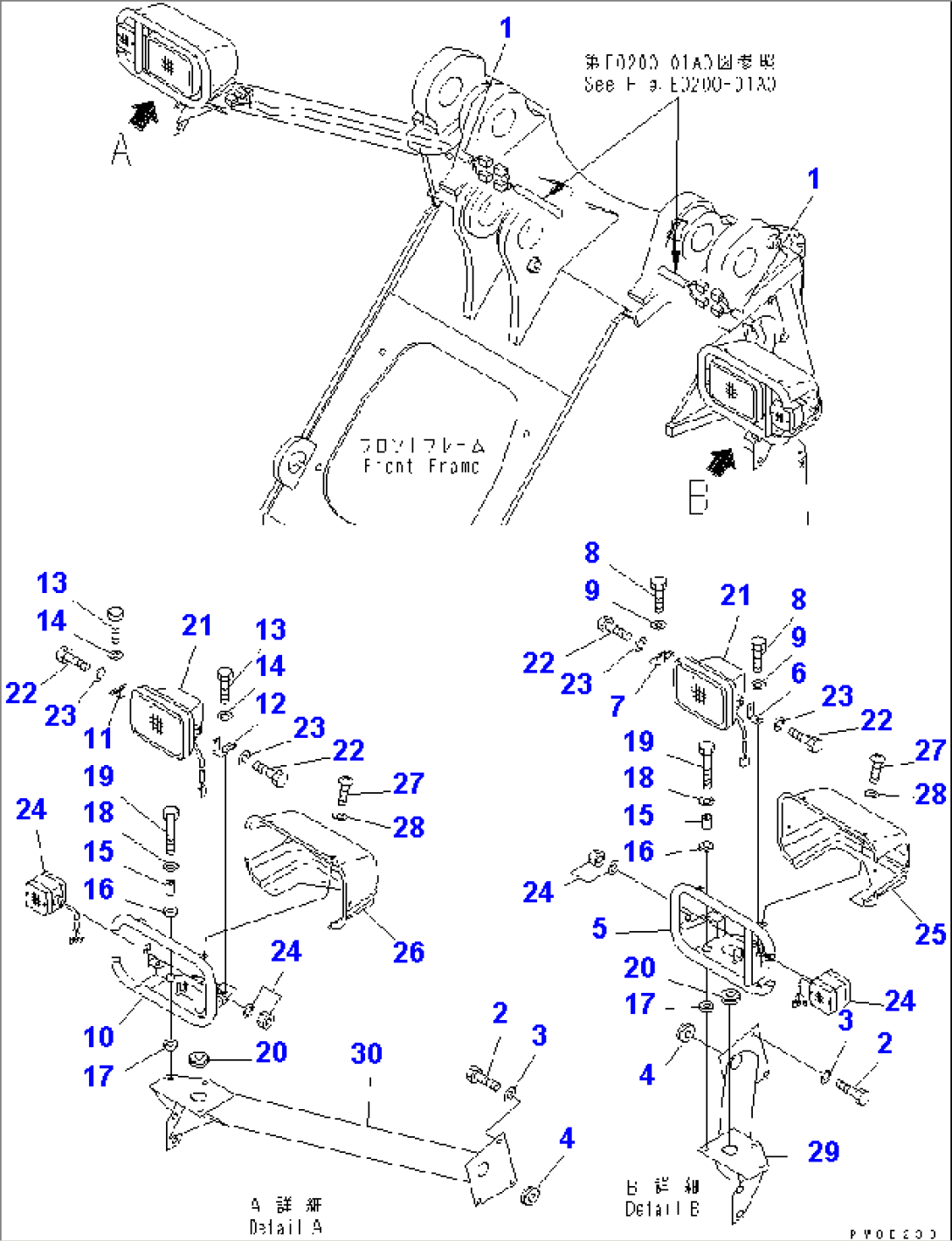

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-06-32132 | WIRING HARNESS | 60001- | |
| 2 | 01010-81230 | BOLT | 60001- | |
| 3 | 01643-31232 | WASHER | 60001- | |
| 4 | 08037-03614 | GROMMET | 60001- | |
| 5 | 424-06-33131 | BRACKET | 60001- | |
| 6 | 421-06-23552 | PLATE | 60001- | |
| 7 | 421-06-23630 | PLATE | 60001- | |
| 8 | 01010-81025 | BOLT | 60001- | |
| 9 | 01643-31032 | WASHER | 60001- | |
| 10 | 424-06-33141 | BRACKET | 60001- | |
| 11 | 421-06-23552 | PLATE | 60001- | |
| 12 | 421-06-23640 | PLATE | 60001- | |
| 13 | 01010-81025 | BOLT | 60001- | |
| 14 | 01643-31032 | WASHER | 60001- | |
| 15 | 417-54-13470 | SPACER | 60001- | |
| 16 | 419-43-17930 | CUSHION | 60001- | |
| 17 | 415-64-13130 | CUSHION | 60001- | |
| 18 | 419-43-17920 | WASHER | 60001- | |
| 19 | 01010-81250 | BOLT | 60001- | |
| 20 | 08037-03614 | GROMMET | 60001- | |
| 21 | 424-06-23210 | HEAD LAMP ASS'Y | 60001- | |
| 424-06-23220 | LENS | 60001- | ||
| 424-06-23230 | BULB¤ 75/70W | 60001- | ||
| 22 | 01010-50825 | BOLT | 60001- | |
| 23 | 01601-20825 | WASHER | 60001- | |
| 24 | 23B-06-42460 | LAMP ASS'Y | 60001- | |
| 41G-06-13210 | LENS,FRONT | 60001- | ||
| 41G-06-13220 | LENS,REAR | 60001- | ||
| 41G-06-13230 | BULB¤ 5W | 60001- | ||
| 08105-12420 | BULB¤ 25W | 60001- | ||
| 01220-40425 | SCREW | 60001- | ||
| 25 | 421-06-23611 | COVER | 60001- | |
| 26 | 421-06-23621 | COVER | 60001- | |
| 27 | 01220-40616 | SCREW | 60001- | |
| 28 | 01643-30623 | WASHER | 60001- | |
| 29 | 423-Z23-3110 | SUPPORT,L.H. | 60001- | |
| 30 | 423-Z23-3120 | SUPPORT,R.H. | 60001- |
