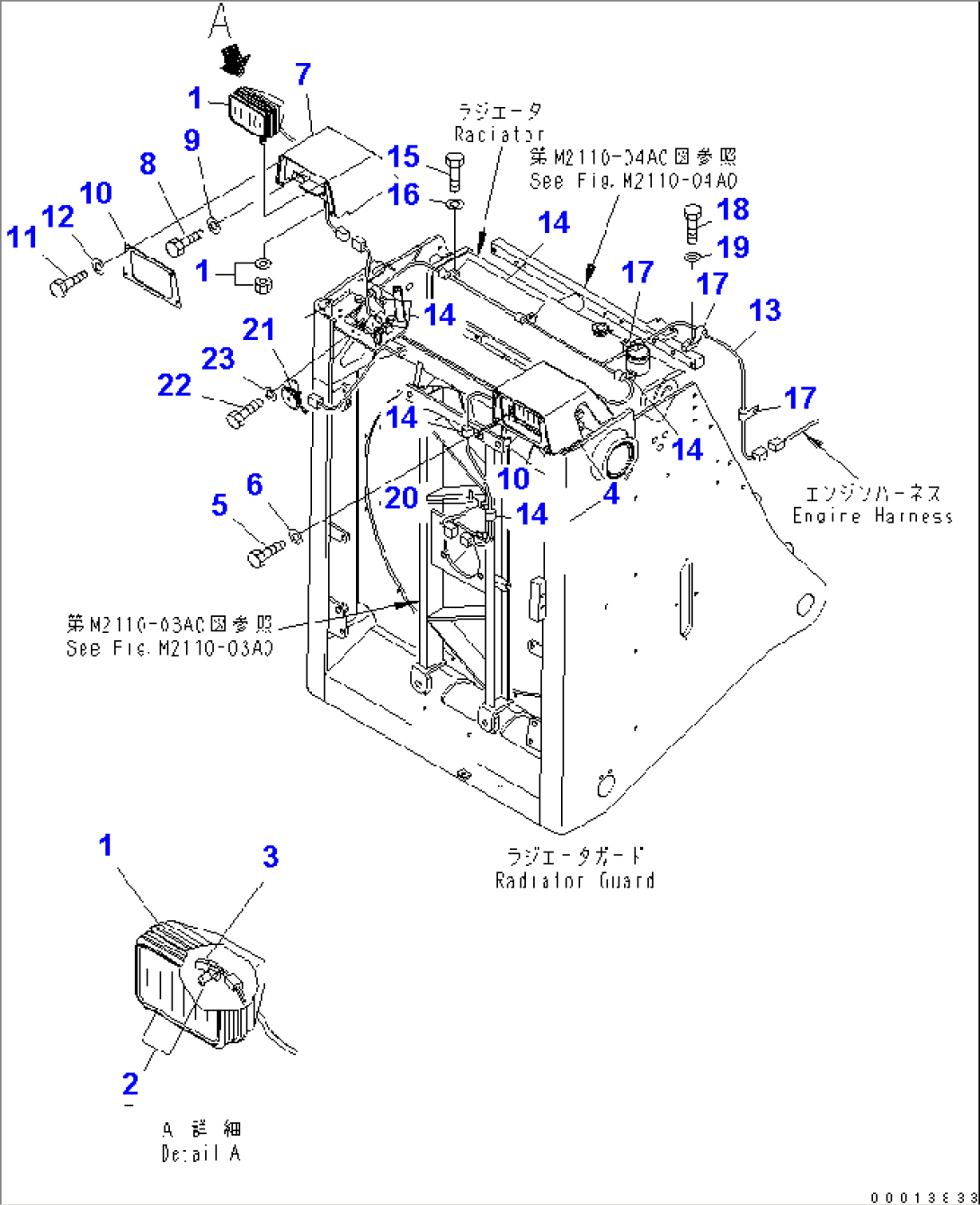

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17A-06-17930 | LAMP ASS'Y | 76001- | |
| 2 | 17A-06-17970 | BULB¤ 70W | 70302- | |
| 3 | 17A-06-17980 | SLEEVE | 70302- | |
| 4 | 17A-54-28181 | COVER,L.H. | 76001- | |
| 5 | 01010-81225 | BOLT | 76001- | |
| 6 | 01643-31232 | WASHER | 70001- | |
| 7 | 17A-54-28191 | COVER,R.H. | 76001- | |
| 8 | 01010-81225 | BOLT | 76001- | |
| 9 | 01643-31232 | WASHER | 70001- | |
| 10 | 17A-54-28211 | PLATE | 76001- | |
| 11 | 01010-D0825 | BOLT | 76001- | |
| 12 | 01643-70823 | WASHER | 76001- | |
| 13 | 17A-06-25291 | WIRING HARNESS | 76001- | |
| 14 | 04434-51012 | CLIP | 76001- | |
| 15 | 01010-81220 | BOLT | 76001- | |
| 16 | 01643-31232 | WASHER | 76001- | |
| 17 | 04434-51412 | CLIP | 76001- | |
| 18 | 01010-81220 | BOLT | 76001- | |
| 19 | 01643-31232 | WASHER | 76001- | |
| 20 | 08036-00814 | CLIP | 76001- | |
| 21 | 19M-06-18220 | HORN | 75001- | |
| 22 | 01010-80820 | BOLT | 70001- | |
| 23 | 01643-30823 | WASHER | 70001- |
