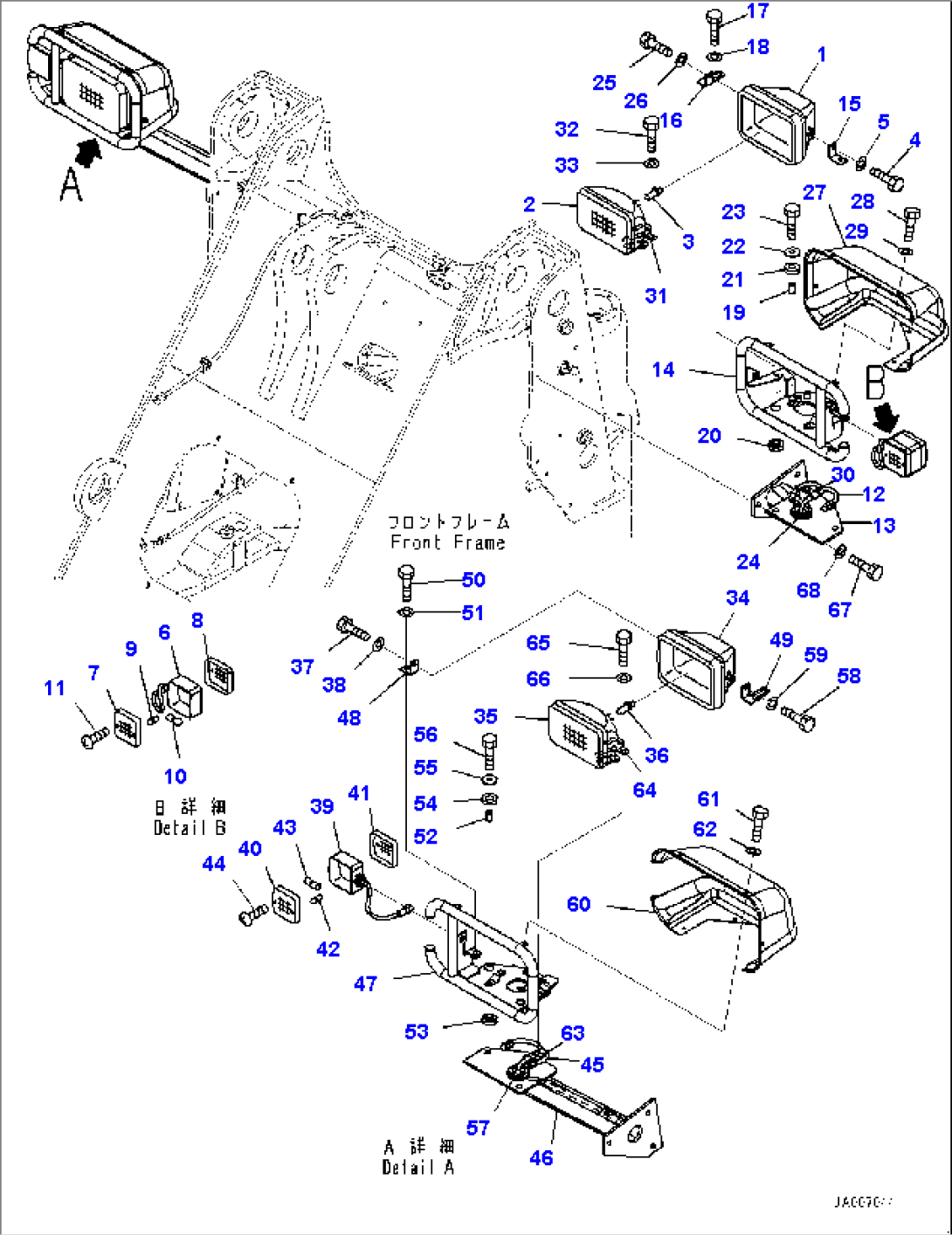

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 424-06-43211 | Lamp, L.H. | 76227- | |
| 2 | 424-06-23220 | Lens, Clear | 76227- | |
| 3 | 424-06-23230 | Bulb, 75/70watt | 76227- | |
| 4 | 01010-80825 | Bolt | 76227- | |
| 5 | 01601-20825 | Washer, Spring | 76227- | |
| 6 | 424-06-43221 | Lamp | 76227- | |
| 7 | 41G-06-13210 | Lens, Orange, Front | 76227- | |
| 8 | 41G-06-13220 | Lens, Orange, Rear | 76227- | |
| 9 | 41G-06-13230 | Bulb, 5watt | 76227- | |
| 10 | 08105-12420 | Bulb, 25watt | 76227- | |
| 11 | 01220-40425 | Screw | 76227- | |
| 12 | 418-06-43120 | Wiring Harness | 76227- | |
| 13 | 418-06-43511 | Support | 76227- | |
| 14 | 418-06-43130 | Bracket | 76227- | |
| 15 | 421-06-23552 | Plate, L.H. | 76227- | |
| 16 | 421-06-23630 | Plate, L.H. | 76227- | |
| 17 | 01010-81025 | Bolt | 76227- | |
| 18 | 01643-31032 | Washer | 76227- | |
| 19 | 417-54-13470 | Spacer | 76227- | |
| 20 | 419-43-17930 | Cushion | 76227- | |
| 21 | 415-64-13130 | Cushion | 76227- | |
| 22 | 419-43-17920 | Washer | 76227- | |
| 23 | 01010-81245 | Bolt | 76227- | |
| 24 | 08037-03614 | Grommet | 76227- | |
| 25 | 01010-80825 | Bolt | 76227- | |
| 26 | 01602-20825 | Washer | 76227- | |
| 27 | 421-06-23611 | Cover, L.H. | 76227- | |
| 28 | 01010-80616 | Bolt | 76227- | |
| 29 | 01643-30623 | Washer | 76227- | |
| 30 | 04434-51010 | Clip | 76227- | |
| 31 | 04434-50610 | Clip | 76227- | |
| 32 | 01010-80820 | Bolt | 76227- | |
| 33 | 01643-30823 | Washer | 76227- | |
| 34 | 424-06-43211 | Lamp, R.H. | 76227- | |
| 35 | 424-06-23220 | Lens, Clear | 76227- | |
| 36 | 424-06-23230 | Bulb, 75/70watt | 76227- | |
| 37 | 01010-80825 | Bolt | 76227- | |
| 38 | 01601-20825 | Washer, Spring | 76227- | |
| 39 | 424-06-43221 | Lamp, R.H. | 76227- | |
| 40 | 41G-06-13210 | Lens, Orange, Front | 76227- | |
| 41 | 41G-06-13220 | Lens, Orange, Rear | 76227- | |
| 42 | 41G-06-13230 | Bulb, 5watt | 76227- | |
| 43 | 08105-12420 | Bulb, 25watt | 76227- | |
| 44 | 01220-40425 | Screw | 76227- | |
| 45 | 418-06-43120 | Wiring Harness | 76227- | |
| 46 | 418-06-43521 | Support, R.H. | 76227- | |
| 47 | 418-06-43140 | Bracket, R.H. | 76227- | |
| 48 | 421-06-23552 | Plate | 76227- | |
| 49 | 421-06-23640 | Plate | 76227- | |
| 50 | 01010-81025 | Bolt | 76227- | |
| 51 | 01643-31032 | Washer | 76227- | |
| 52 | 417-54-13470 | Spacer | 76227- | |
| 53 | 419-43-17930 | Cushion | 76227- | |
| 54 | 415-64-13130 | Cushion | 76227- | |
| 55 | 419-43-17920 | Washer | 76227- | |
| 56 | 01010-81245 | Bolt | 76227- | |
| 57 | 08037-03614 | Grommet | 76227- | |
| 58 | 01010-80825 | Bolt | 76227- | |
| 59 | 01602-20825 | Washer | 76227- | |
| 60 | 421-06-23621 | Cover, R.H. | 76227- | |
| 61 | 01010-80616 | Bolt | 76227- | |
| 62 | 01643-30623 | Washer | 76227- | |
| 63 | 04434-51010 | Clip | 76227- | |
| 64 | 04434-50610 | Clip | 76227- | |
| 65 | 01010-80820 | Bolt | 76227- | |
| 66 | 01643-30823 | Washer | 76227- | |
| 67 | 01010-81025 | Bolt | 76227- | |
| 68 | 01643-31032 | Washer | 76227- |
