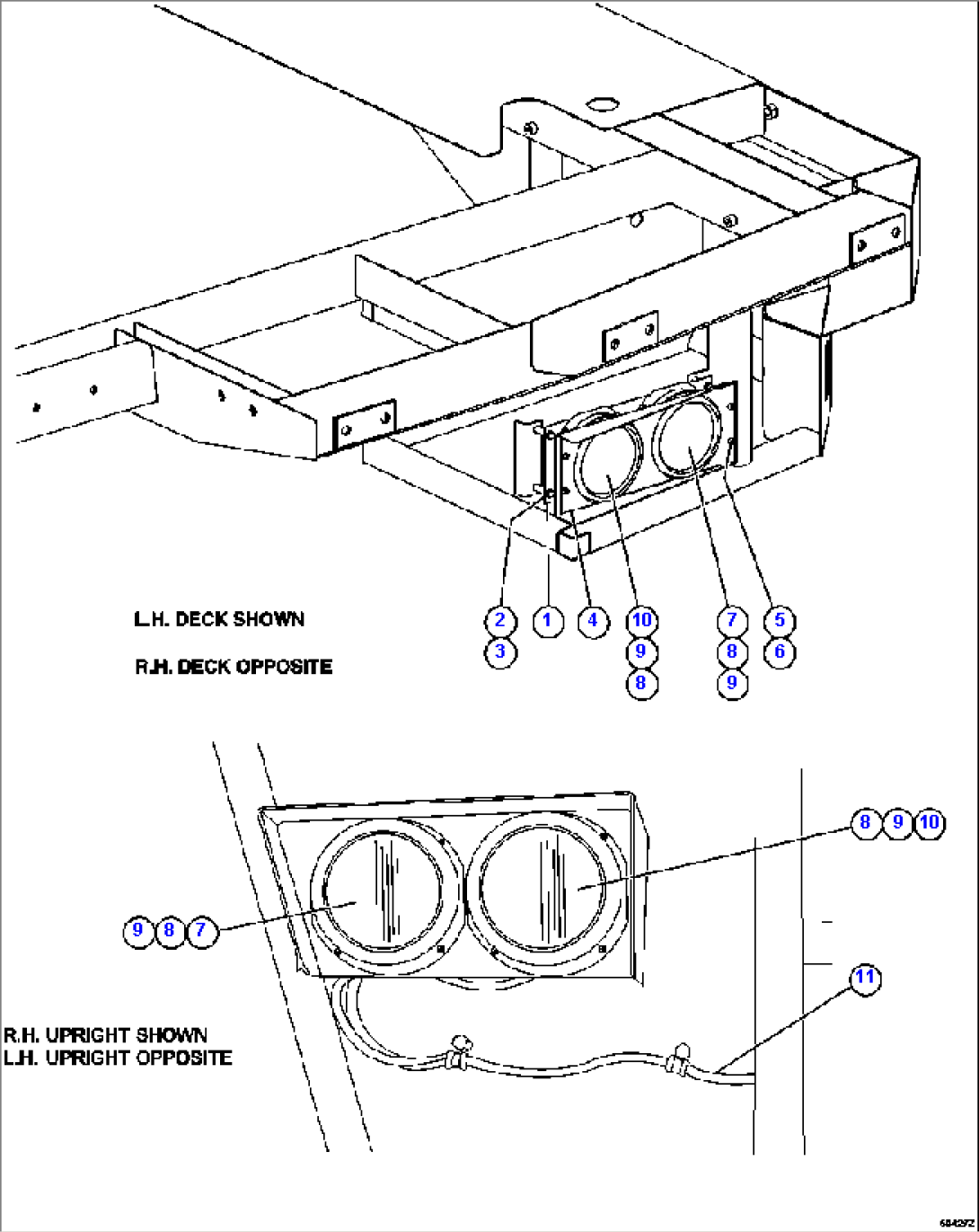

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EG3673 | PLATE | | |
| 2 | MM0022 | CAPSCREW - M8 X 1.25 X 20 | | |
| 3 | MM0460 | FLAT WASHER - M8 | | |
| 4 | EG3672 | PLATE, COVER | | |
| 5 | MM0357 | MACHINE SCREW - M6 X 1.00 X 12 | | |
| 6 | MM0207 | LOCKWASHER - M6 | | |
| 7 | AK3333 | HEADLIGHT ASSM - LOW BEAM (SEE FIG 55107) | | |
| 8 | MM0342 | MACHINE SCREW - M4 X .7 X 12 | | |
| 9 | MM0205 | LOCKWASHER - M4 | | |
| 10 | AK3332 | HEADLIGHT ASSM - HIGH BEAM (SEE FIG 55107) | | |
| 11 | EH2959 | HARNESS, LOWER HEADLIGHTS | | |
| NS|12 | | NOTE: NS = NOT SHOWN | | |
| NS|13 | AK3826 | FOGLIGHT (1) | | |
| NS|14 | AK1031 | FLANGE MOUNT ASSEMBLY | | |
| NS|15 | AK7546 | FOG LENS/REFLECTOR UNIT | | |
| NS|16 | AK7533 | LENS/REFLECTOR | | |
| NS|17 | AK7554 | SPRING, BULB RETAINER - (MULTIPAK 10) | | |
| NS|18 | AK7575 | BULB, LIGHT - 24V/65W | | |
| NS|19 | | NOTE: (1) OPTIONAL EQUIPMENT. | | |
