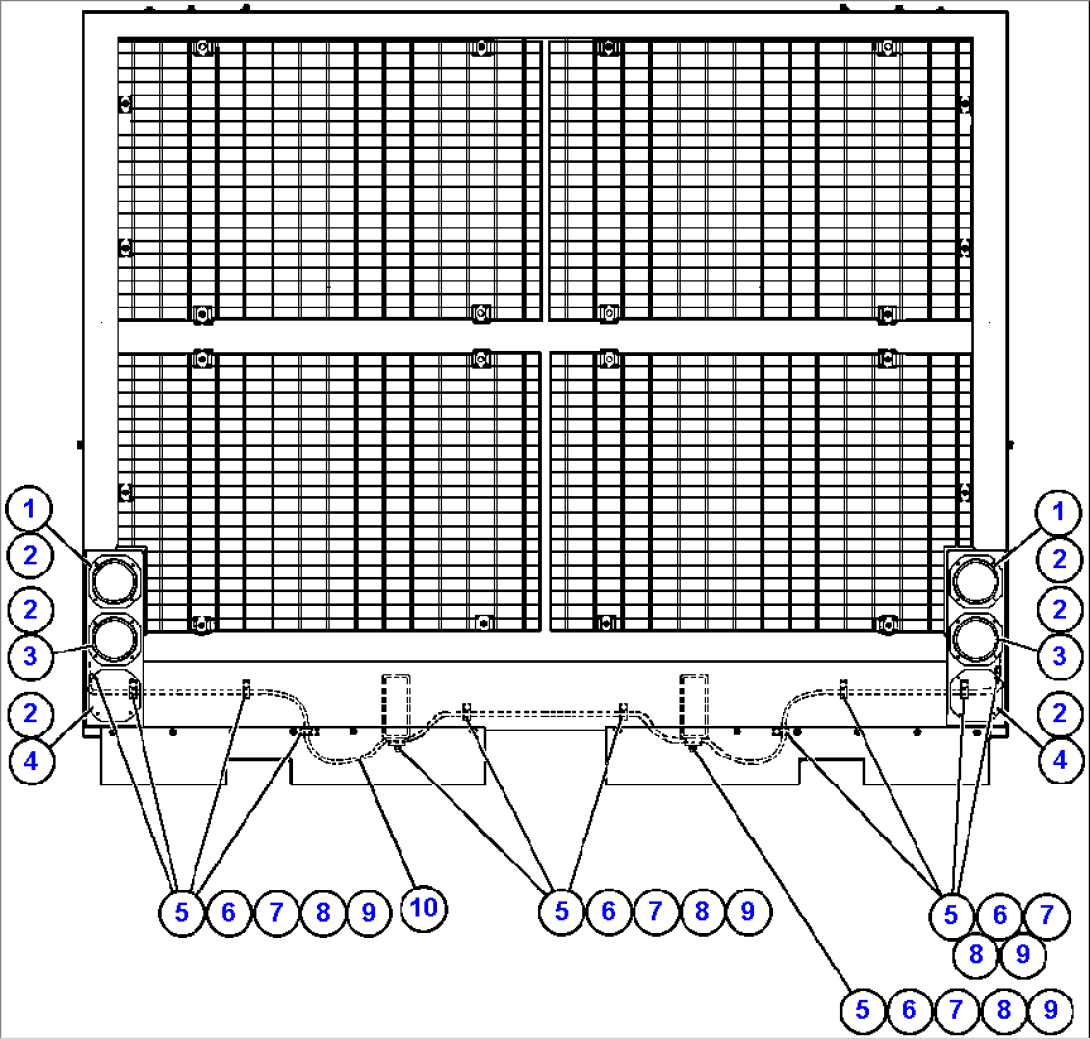

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | AK3333 | LOW BEAM HEADLIGHT ASSEMBLY (SEE FIG 41107) | ||
| 2 | WA4513 | SCREW, SELF-TAP - #10 - 24NC X 1/2" | ||
| 3 | AK3332 | HIGH BEAM HEADLIGHT ASSEMBLY (SEE FIG 41107) | ||
| 4 | TY7544 | COVER | ||
| 5 | 07095-30213 | HOSE, CUSHION | ||
| 6 | 04434-51910 | CLIP | ||
| 7 | C1547 | FLAT WASHER - 3/8" | ||
| 8 | C0312 | LOCKWASHER - 3/8" | ||
| 9 | C1521 | NUT - 3/8" | ||
| 10 | EJ0196 | HARNESS, ENGINE (EXTERNAL) |
