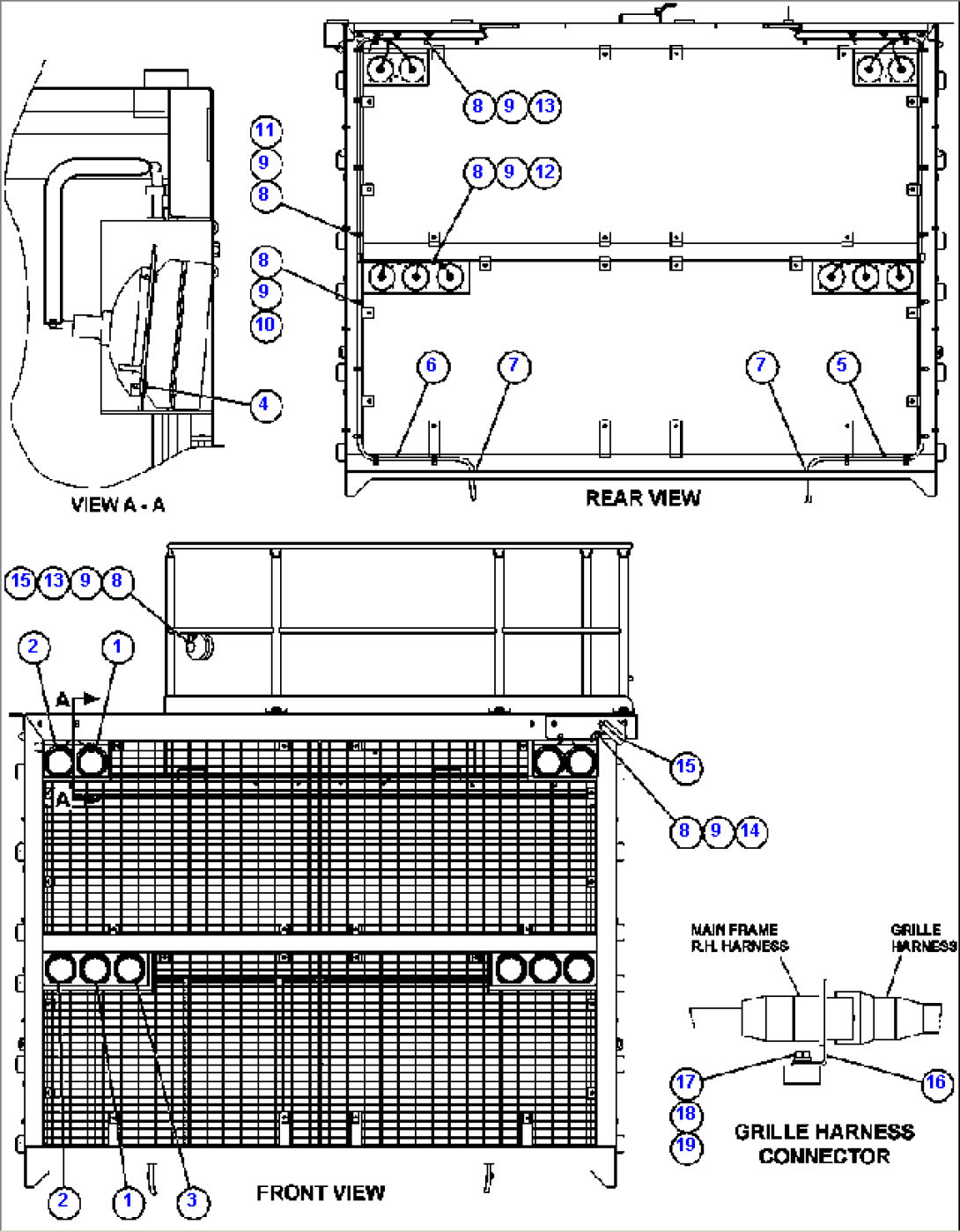

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EM3267 | HEADLIGHT ASSEMBLY - HIGH BEAM (SEE FIG 41107) | | |
| 2 | EM3268 | HEADLIGHT ASSEMBLY - LOW BEAM (SEE FIG 41107) | | |
| 3 | EM3269 | FOG LIGHT ASSEMBLY (SEE FIG 41107) | | |
| 4 | WA4513 | SCREW, SELF-TAPPING - #10 - 24NC X 1/2" | | |
| 5 | EM3429 | HARNESS, GRILLE - R.H. | | |
| 6 | EM0779 | HARNESS, GRILLE - L.H. | | |
| 7 | WB0810 | GROMMET | | |
| 8 | MM0461 | FLAT WASHER - M10 | | |
| 9 | MM0178 | NUT - M10 X 1.50 | | |
| 10 | WB3092 | CLAMP, CUSHIONED - 7/8" | | |
| 11 | WB1300 | CLAMP, CUSHIONED - 5/8" | | |
| 12 | WB3097 | CLAMP, CUSHIONED - 1/2" | | |
| 13 | WB3098 | CLAMP, CUSHIONED - 3/8" | | |
| 14 | WB1301 | CLAMP, CUSHIONED - 1/4" | | |
| 15 | AK7503 | FLOODLIGHT (SEE FIG 60883) | | |
| 16 | EJ8368 | BRACKET, GRILLE HARNESS SOCKET | | |
| 17 | MM0581 | CAPSCREW - M6 X 1.00 X 16 | | |
| 18 | MM0459 | FLAT WASHER - M6 | | |
| 19 | MM0469 | LOCKWASHER - M6 | | |
| NS|20 | | NOTE: NS = NOT SHOWN | | |
| NS|21 | EM6164 | HARNESS, HID JUMPER | | |
