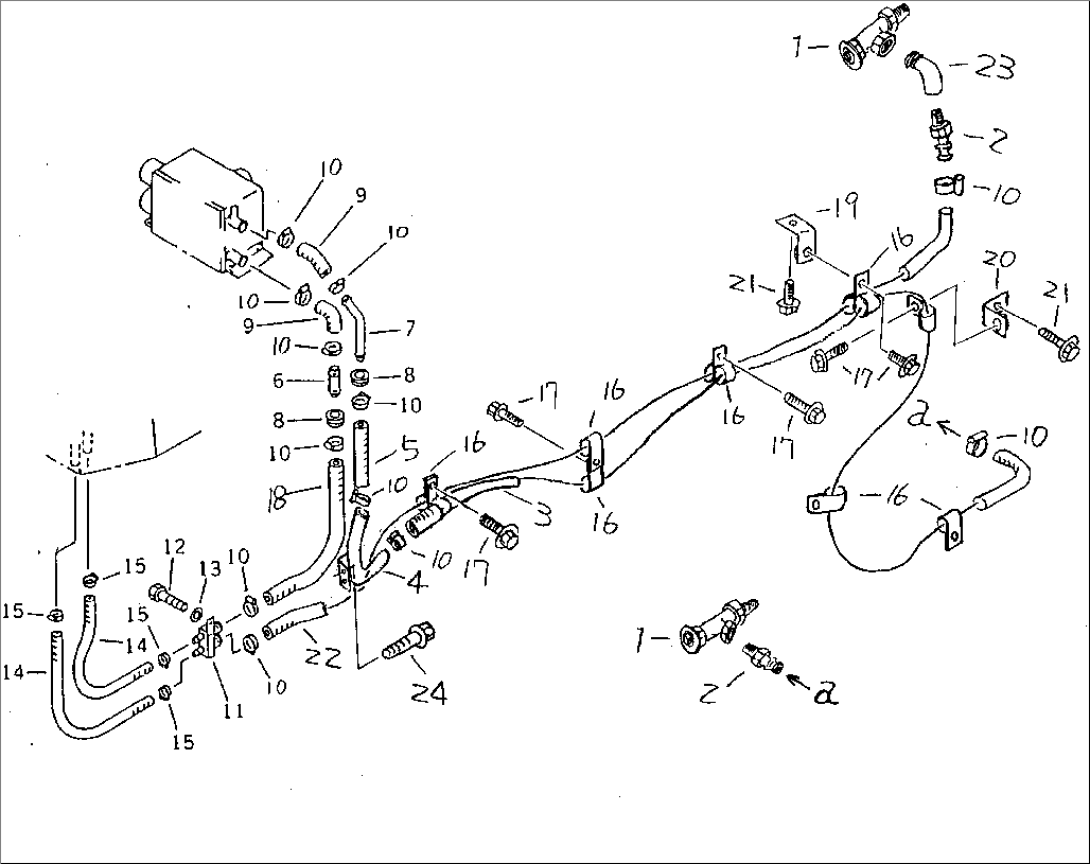

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 195-911-5590 | VALVE | 10001- | |
| 2 | 113-899-7970 | JOINT | 10001- | |
| 3 | 09483-16370 | HOSE | 10001- | |
| 4 | 428-T45-1440 | TUBE | 10001- | |
| 5 | 09483-16030 | HOSE | 10001- | |
| 6 | 41E-W93-2530 | TUBE | 10001- | |
| 7 | 41E-W93-2520 | TUBE | 10001- | |
| 8 | 08037-02512 | GROMMET | 10001- | |
| 9 | 41E-W93-2510 | HOSE | 10001- | |
| 10 | 07281-00419 | CLAMP | 10001- | |
| 11 | 41E-W93-2430 | TUBE | 10001- | |
| 12 | 01010-51020 | BOLT | 10001- | |
| 13 | 01643-31032 | WASHER | 10001- | |
| 14 | 09483-10504 | HOSE | 10001- | |
| 15 | 07281-00259 | CLAMP | 10001- | |
| 16 | 427-06-11180 | CLAMP | 10001- | |
| 17 | 01435-01016 | BOLT | 10001- | |
| 18 | 09483-16045 | HOSE | 10001- | |
| 19 | 42A-16-11210 | PLATE | 10001- | |
| 20 | 427-43-11370 | BRACKET | 10001- | |
| 21 | 01435-01016 | BOLT | 10001- | |
| 22 | 09483-16260 | HOSE | 10001- | |
| 23 | 07323-B0400 | ELBOW | 10001- | |
| 24 | 01435-01218 | BOLT | 10001- |
