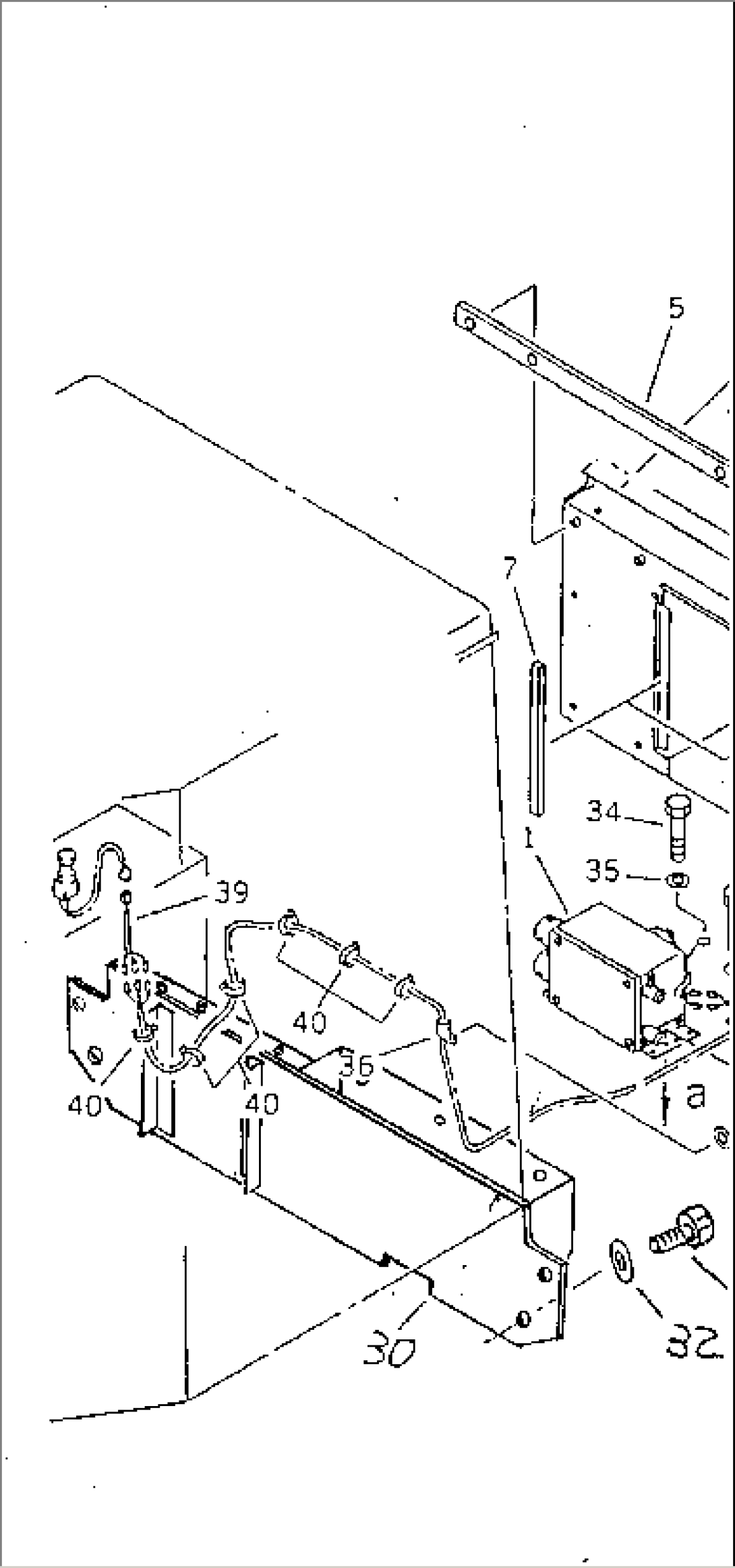

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 195-911-4252 | HEATER ASS'Y | 10001- | |
| 2 | 01010-51020 | BOLT | 10001- | |
| 3 | 01643-31032 | WASHER | 10001- | |
| 4 | 428-T45-1310 | BOX,REAR | 10001- | |
| 4 | 428-T45-1280 | BOX | 10001- | |
| 5 | 424-54-12651 | SEAT | 10001- | |
| 6 | 426-54-12951 | SEAT | 10001- | |
| 7 | 428-T45-1410 | SEAT | 10001- | |
| 8 | 428-T45-1350 | INSULATOR | 10001- | |
| 9 | 428-T45-1340 | INSULATOR | 10001- | |
| 10 | 428-T45-1330 | INSULATOR | 10001- | |
| 11 | 428-T45-1380 | INSULATOR | 10001- | |
| 12 | 428-T45-1390 | INSULATOR | 10001- | |
| 13 | 428-T45-1370 | INSULATOR | 10001- | |
| 14 | 428-T45-1360 | INSULATOR | 10001- | |
| 15 | 428-T45-1320 | INSULATOR | 10001- | |
| 16 | 01010-51225 | BOLT | 10001- | |
| 17 | 01643-31232 | WASHER | 10001- | |
| 18 | 428-T45-1260 | COVER | 10001- | |
| 18 | 428-T45-1270 | COVER | 10001- | |
| 19 | 421-54-11362 | LOCK ASS'Y | 10001- | |
| 20 | 421-54-11381 | LOCK | 10001- | |
| 21 | 428-T45-1430 | INSULATOR | 10001- | |
| 21A | 428-T45-1450 | INSULATOR | 10001- | |
| 22 | 421-54-11980 | PLATE | 10001- | |
| 23 | 01010-51225 | BOLT | 10001- | |
| 24 | 01643-31232 | WASHER | 10001- | |
| 25 | 418-54-15150 | STOPPER | 10001- | |
| 26 | 01220-40630 | SCREW | 10001- | |
| 27 | 01602-20619 | WASHER,SPRING | 10001- | |
| 28 | 01010-51230 | BOLT | 10001- | |
| 29 | 01643-31232 | WASHER | 10001- | |
| 30 | 428-T45-1250 | COVER | 10001- | |
| 31 | 01010-51225 | BOLT | 10001- | |
| 32 | 01643-31232 | WASHER | 10001- | |
| 34 | 01010-50812 | BOLT | 10001- | |
| 35 | 01643-30823 | WASHER | 10001- | |
| 36 | 04434-50810 | CLIP | 10001- | |
| 37 | 01435-01016 | BOLT | 10001- | |
| 39 | 41E-06-12810 | HARNESS | 10001- | |
| 40 | 08034-00519 | BAND | 10001- |
